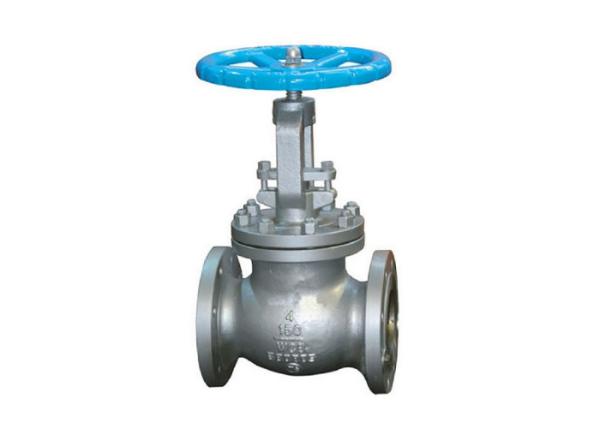

Straight Type Cast Steel Globe Valve Corrosion Resistant , Full Port Design
Straight Type Cast Steel Globe Valve Corrosion Resistant , Full Port Design
Specifications
Brand Name :
JIEYU
Certification :
API ISO Ts CE
Place of Origin :
Wenzhou China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
7-30 work days
Packaging Details :
Plywood Case
Usage :
Regulation, Safety, Emptying, Drain, Temperature Control, Flow Control
Application :
Industrial Usage, Water Industrial Usage, Household Usage
Actuator :
Manual
Standard :
ANSI
Connection :
Flanged or Butt-Welding End
Bore :
Full Port Design, Regular Bore Design
Description

Super Duplex Steel Inconel Monel Hastelloy Straight Type Bolted Bonnet Plug Disc Flange Corrosion Resistant Globe Valve


Product Range
-Valve size:
2" ~ 24" (DN50-DN600)
-Pressure:
ANSI Class 150~2500(PN16-PN420)
-Temperature:
-196ºC~ 500ºC
-Body Materials:
Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
-Trim (Disc/Stem):
Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel

Technical Specifications
-Design: ASME 16.34/ API 6D/ API 600/ BS 1873
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ API 6D/ BS 6755
-Special: NACE MR-01-75

Design Features
-OS & Y, Rising stem
- Bolted Bonnet with spiral-would gasket
-Conic Disc
-Backseat Weld-Deposited
Impact Hand wheel (On Request)
-Extended Bonnet for Cryogenic Service
-Flanged or butt welded ends.
-By Pass on Request
-Locking Device Optional

Size and Dimensions:

Class Dimensions(mm)
NPS(inch) 2 2-1/2 3 4 6 8 10 12 14 16 18 20 24
DN(mm) 50 65 80 100 150 200 250 300 350 400 450 500 600
150LB L 203 216 241 292 406 495 622 698 787 914 977 977 1295
H 340 370 400 470 540 645 805 920 1100 1175 1220 1450 1690
W 200 200 250 250 355 400 500 560 450 450 600 600 600
300LB L 267 292 318 356 444 559 622 711 838 864 977 1016 1346
H 390 425 450 565 710 860 860 995 1155 1325 1473 1574 1803
W 200 250 250 350 450 560 600 600 600 600 720 720 720
600LB L 292 330 356 432 559 660 787 838 - - - - -
H 460 490 555 630 955 1310 1219 1570 - - - - -
W 250 315 350 350 450 560 600 600 - - - - -
900LB L 368 419 381 457 610 737 838 - - - - - -
H 480 520 630 720 1015 1333 1625 - - - - - -
W 350 350 400 450 650 700 700 - - - - - -
1500LB L 368 419 470 546 705 832 991 - - - - - -
H 505 550 765 890 1020 1230 1549 - - - - - -
W 350 400 450 450 600 600 600 - - - - - -
