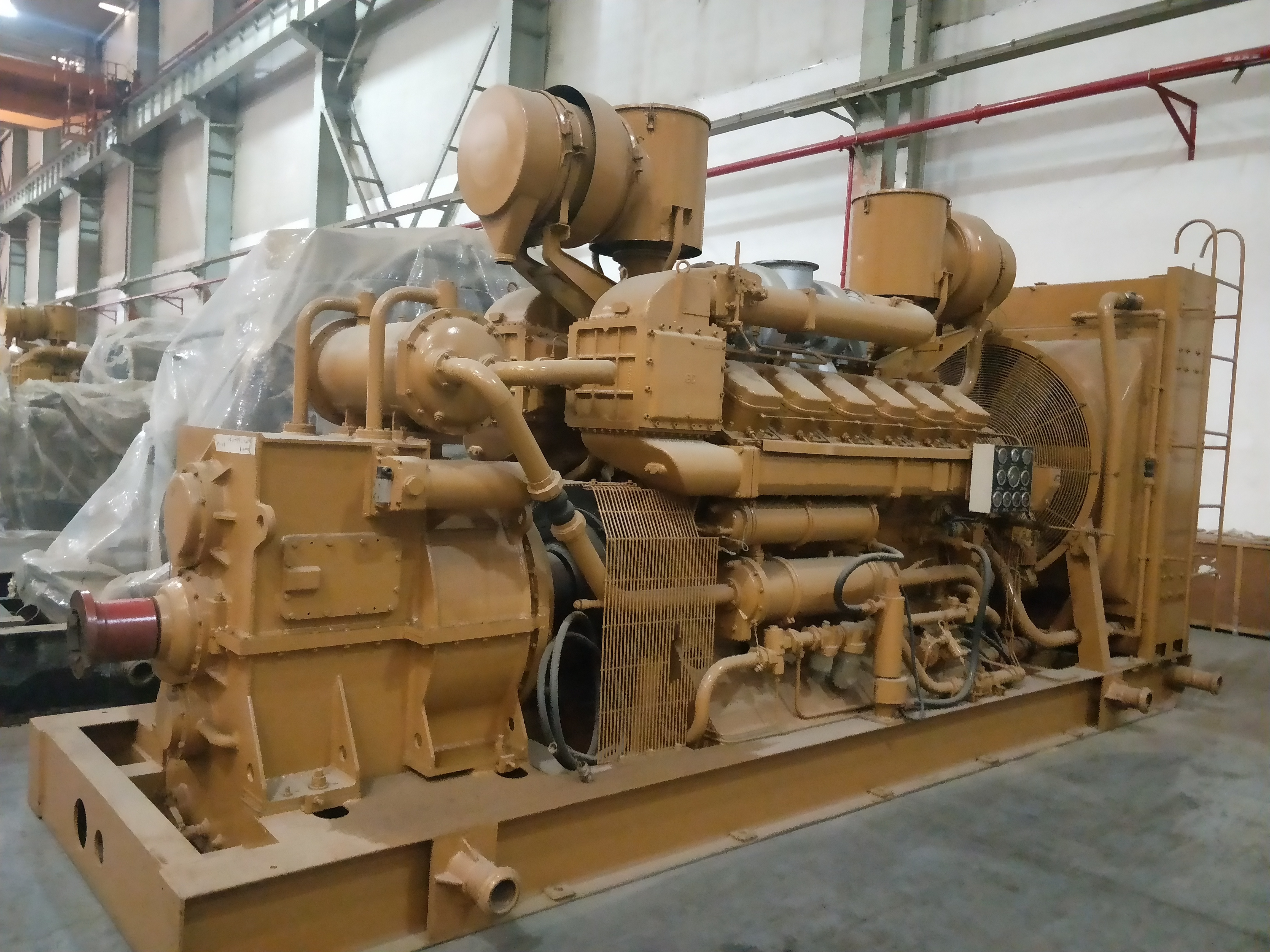

Jichai 500KW G12V190ZLDZ 1000R/min Biogas Gas Generator for CHP application
Jichai 500KW G12V190ZLDZ 1000R/min Biogas Gas Generator for CHP application
Jichai 500KW G12V190ZLDZ 1000R/min Biogas Gas Generator for CHP application
Jichai 500KW G12V190ZLDZ 1000R/min Biogas Gas Generator for CHP application
Jichai 500KW G12V190ZLDZ 1000R/min Biogas Gas Generator for CHP application
Jichai 500KW G12V190ZLDZ 1000R/min Biogas Gas Generator for CHP application
Jichai 500KW G12V190ZLDZ 1000R/min Biogas Gas Generator for CHP application
Jichai 500KW G12V190ZLDZ 1000R/min Biogas Gas Generator for CHP application
Specifications
Model Number :
12V190
MOQ :
1
Packaging Details :
wooden cases
Supply Ability :
200 pcs month
Price :
766
Certification :
CE
Delivery Time :
30 days
Brand Name :
jichai
Place of Origin :
CHINA
Description

500GF-NK Biogas Gas Generator Set Specifications

Specification Parameter
Model of Generator 500GF-NK
Rated Power 500 kW
Rated Speed 1000 r/min
Rated Voltage 400 V
Rated Frequency 50 Hz
Rated Power Factor 0.8 (lag)
Supply Method Three-phase four-wire system
Excitation Method Brushless
Starting Method 24V DC electric start
Cooling Method Closed water cooling
Speed Regulation Electronic speed regulation (WOODWARD)
Overall Dimensions 6195 × 2200 × 2778 mm
Net Weight 12,500 kg

Voltage Performance

Specification Parameter
Stable Regulating Rate ±2.5%
Instantaneous Regulating Rate +22% to -18%
Recovery Time 1.5 s
Fluctuation ≤1.2%

Frequency Performance

Specification Parameter
Stable Regulating Rate 0–5%
Instantaneous Regulating Rate ≤±15%
Recovery Time <12 s
Fluctuation ≤2%

Engine Specifications

Specification Parameter
Engine Model G12V190ZDZ-2
Rated Power 550 kW
Number and Layout of Cylinders 12, 60° V
Type 4-stroke, water-cooled, turbocharged and aftercooled, spark ignition, out-mixed
Bore 190 mm
Stroke 210 mm
Compression Ratio 8:1
Rated Speed 1000 r/min
No-load Minimum Stable Speed 700 r/min
Fuel Natural Gas
Gas Pressure 80–150 kPa
Heat Consumption Rate 11,000 kJ/kW·h
Oil Consumption ≤1.6 g/kW·h
Oil Type Kunlun KCN 7810 / 15W40CD / Mobil Pegasus 705
Oil Tank Capacity 400 L
Exhaust Temperature Before Turbine ≤650°C
Water Outlet Temperature ≤90°C
Water Inlet Temperature ≤70°C
Intercooler Inlet Water Temperature ≤45°C
Noise Level 123 dB
Starting Method Electric Starter
Lubrication Method Pressure and splash lubrication

Alternator Specifications

Specification Parameter
Alternator Model 1FC5
Efficiency at Power Factor 0.8 94%
Frequency 50 Hz
Voltage 400 V
Wiring Three-phase four-wire
Protection Class IP23
Insulation Class F
Excitation Method Brushless
Speed 1000 r/min
Net Weight 8,300 kg

Operating Environment

Specification Parameter
Ambient Temperature -35°C to +35°C
Relative Humidity <90% at 20°C
Altitude ≤1000 m

Standard Conditions for Rated Output

Specification Parameter
Atmospheric Pressure 100 kPa
Ambient Temperature 25°C
Relative Humidity 30%

Natural Gas Requirements

Component / Parameter Requirement
CH₄ ≥76.0%
C₂H₆ <10.0%
C₃H₈ <8.00%
C₄H₁₀ <6.00%
H₂S <0.10%
CO₂ <1.00%
Calorific Value >41,860 kJ/m³
Gas Pressure 80–150 kPa
Gas Temperature 10–45°C
Gas Flow Rate Approximately 132 Nm³/h

Fuel Gas Quality Requirements

The fuel gas must be processed by equipment capable of stabilizing gas pressure and gasification. Gas entering the generator must be free from water and oil.

  • Particle Size: ≤5 μm

  • Dust Content: <10 mg/m³

  • Gas Pressure: 80–150 kPa

  • Gas Temperature: 10–45°C
