2440mm 0.25mm PETG Thermoform Plastic Sheets For Packaging Trays
2440mm 0.25mm PETG Thermoform Plastic Sheets For Packaging Trays
2440mm 0.25mm PETG Thermoform Plastic Sheets For Packaging Trays
2440mm 0.25mm PETG Thermoform Plastic Sheets For Packaging Trays
2440mm 0.25mm PETG Thermoform Plastic Sheets For Packaging Trays
2440mm 0.25mm PETG Thermoform Plastic Sheets For Packaging Trays
2440mm 0.25mm PETG Thermoform Plastic Sheets For Packaging Trays
2440mm 0.25mm PETG Thermoform Plastic Sheets For Packaging Trays
2440mm 0.25mm PETG Thermoform Plastic Sheets For Packaging Trays
2440mm 0.25mm PETG Thermoform Plastic Sheets For Packaging Trays
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Jiaou
Model Number :
PETG Sheet
Supply Ability :
100 Tons Per Day
MOQ :
1000 kilograms
Price :
Negociated
Certification :
FDA, GRS, Reach, RoHS, ISO9001
Packaging Details :
Sample: A4 size rigid PETG with PP bag in box Sheet packing: 30kg per bag or as your requirement Pallets packing: 500- 2000kg per wooden pallet Container loading: 20 tons as normal
Payment Terms :
L/C, T/T
Delivery Time :
To Be Negotiated
Material :
PETG
Thickness :
0.18-7mm
Size :
2440mm
Product name :
Transparent Plastic 0.25mm PETG Sheet For Thermoforming
Other Product Name :
PETG Sheet
Origin :
China
Color :
Transparent
Raw Material :
PETG
Application :
For Packaging vacuum-formed,sale displays, covers and machinery guards
Feature :
Eco-Friendly
Sample :
Available
Packing :
Pallets
Shrinkage :
0.5%
Port :
Shanghai,Lianyungang,Zhangjiagang
Description

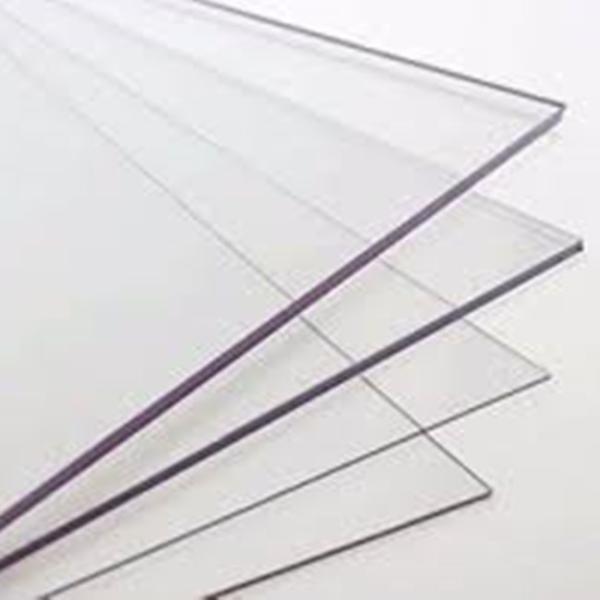

PETG Thermoform Plastic Sheets 0.25mm - 8mm PETG Sheet

Product Description

Our Clear PETG Sheet is a type of transparent glycol-modified PET thermoplastic sheet that is perfect for a wide range of applications. It is made of glycol-modified polyester, making it highly heat and chemical-resistant. This sheet has a smooth surface and is highly durable, providing superior performance in both indoor and outdoor applications. The color of this sheet is clear, providing excellent visibility and clarity. It has excellent dimensional stability and is easy to machine, form, and fabricate. This sheet is suitable for a wide range of applications, such as food packaging, medical equipment, and industrial applications. It is also resistant to weathering, UV degradation, and most chemicals. Our Clear PETG Sheet is the perfect choice for any application where superior heat and chemical resistance is required.

• Outstanding thermoforming characteristics, particularly in deep draw applications
• Good impact resistance
• Less brittle than acrylic
• Resistant to common cleaners used on point-of-purchase displays
• Allows for rigid thermoforming cycle times
• FDA compliant grades available
• Impact strength greater than acrylic and approaches polycarbonate
• 86% light transparency compared to 87% for polycarbonate and 92% for acrylic
• Die cuts/punches easily
• Low forming temperature
• Printable
• Chemical resistant
• Self-extinguishing

Technical Data Sheet
Item Typical Value Testing Method
Intrinsic Viscosity(dL/g) 0.750+/-0.015 Ubbelodhe viscometer
Specific Gravity(kg/cm³) 1.27 ASTM D792
Moisture Absorption(%) 0.15 ASTM D570
Tensile Strength@Yield 50mm/min( inch/min)(kgf/cm²) 496 ASTM D638
Tensile Strength@Break 50mm/min( inch/min)(kgf/cm²) 281 ASTM D638
Elongation@Yield 50mm/min( 2inch/min)(%) 3.7 ASTM D638
Elongation@Break 50mm/min(2 inch/min)(%) 136 ASTM D638
Flexural Strength 1.27mm/min(2 inch/min)(kgf/cm²) 620 ASTM D790
Flexural Strength 1.27mm/min(3 inch/min)(kgf/cm²) 20800 ASTM D790
Low temperature falling dart impact(g) 791 ASTM D358
Atmospheric temperature falling dart(g) 1701 ASTM D358
Lzod Impact Strength Notched@23 ℃(J/m) 98 ASTM D256
Rockwell Hardness(℃) 106 R-scale
Heat Distortion Temperature 0.45Mpa(66 psi)(℃) 77 ASTM D648

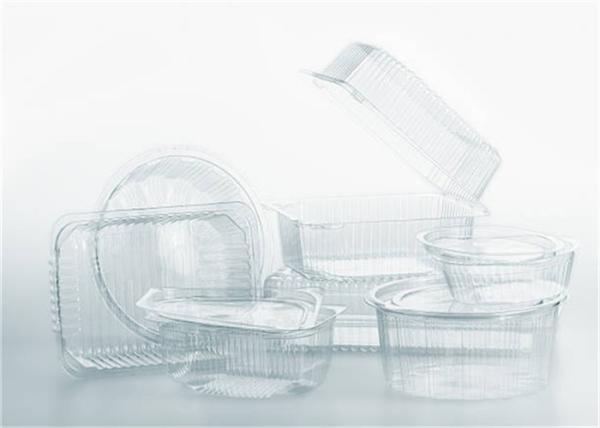

Application For PETG Sheet

PETG is used as a Midrange priced product between Acrylic and Polycarbonate. The clarity of PETG approaches that of Acrylic and the Impact Resistance of Polycarbonate. Also is used in Signing, Glazing, POP Displays, etc.


• Sign and graphic holders
• Point of purchase displays
• Merchandisers
• Table top displays
• Table tents
• Product displays

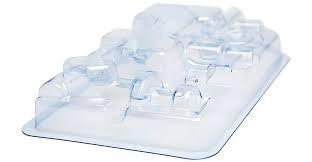

• Trays

Package & Delivery

2440mm 0.25mm PETG Thermoform Plastic Sheets For Packaging Trays

FAQ

Q1. Are you a factory or trade company?

A: We are a professional manufacturer with 15 years of experience. If you have interests, welcome to visit our factory.

Q2. Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free, but charge by freight collection.

Q3. How about the lead time?

A: Normal sample supply it at once. Special samples need 3 days. mass production is generally 5-10 working days after receiving your initial payment.

Q4. Do you have any MOQ limits?

A: Normal only 1000kgs, Special colors about 5000kgs.

Q5. What are your terms of payment?

A: 30% T/T in advance, balance before shipment. We accept L/C at Sight.
