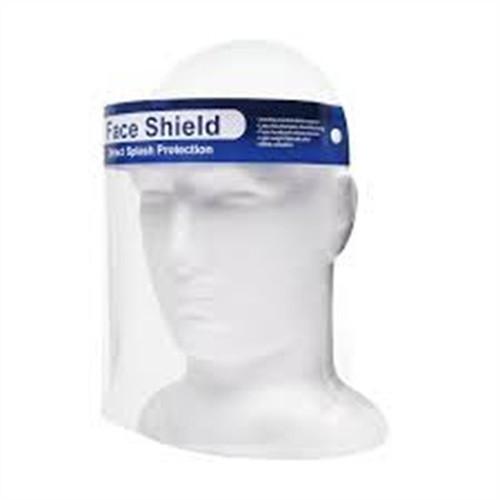

Transparent APET Film Face Shield Plastic Sheet 0.18mm - 2mm
Transparent APET Film Face Shield Plastic Sheet 0.18mm - 2mm
Transparent APET Film Face Shield Plastic Sheet 0.18mm - 2mm
Transparent APET Film Face Shield Plastic Sheet 0.18mm - 2mm
Transparent APET Film Face Shield Plastic Sheet 0.18mm - 2mm
Transparent APET Film Face Shield Plastic Sheet 0.18mm - 2mm
Transparent APET Film Face Shield Plastic Sheet 0.18mm - 2mm
Transparent APET Film Face Shield Plastic Sheet 0.18mm - 2mm
Transparent APET Film Face Shield Plastic Sheet 0.18mm - 2mm
Transparent APET Film Face Shield Plastic Sheet 0.18mm - 2mm
Transparent APET Film Face Shield Plastic Sheet 0.18mm - 2mm
Transparent APET Film Face Shield Plastic Sheet 0.18mm - 2mm
Specifications
Brand Name :
Jiaou
Model Number :
APET Sheet
Certification :
FDA, GRS, Reach, RoHS, Iso9001
Place of Origin :
Jiangsu, China
MOQ :
1000 kilograms
Price :
Negociated
Payment Terms :
T/T
Supply Ability :
30 Tons Per Day
Delivery Time :
To Be Negotiated
Packaging Details :
Sample: A4 size rigid PET with PP bag in box Sheet packing: 30kg per bag or as your requirement Pallets packing: 500- 2000kg per wooden pallet Container loading: 20 tons as normal
Product name :
APET Film Clear Custom Plastic Face Shields
Material :
APET
Thickness :
0.18mm - 2mm
Size :
Custom
Color :
Transparent
Application :
Face Shields
Surface :
Smooth,Glossy
Feature :
Medical Grade
Shape :
Sheet; Roll
Raw material :
100% Virgin Raw Material
Description

APET Film Clear Custom APET Plastic Sheet Roll For Plastic Face Shields

Product Description

APET film is a thermoplastic sheet made of Polyethylene terephthalate resin.PET offers the capability to produce complex shapes, precise details, deep draws, and compound curves without worrying about durability. PET is easily formed, die-cut, and punched. It also brings increased design freedom and lower fabrication costs. In sheet form, PET has the impact strength and fabrication ease that acrylic can`t touch, with the durability to significantly reduce packaging and shipping costs.

  • Outstanding thermoforming characteristics, particularly in deep draw applications
  • Good impact resistance
  • Allows for rigid thermoforming cycle times
  • Die cuts/punches easily
  • Low forming temperature
  • Printable
  • Chemical resistant
  • Self-extinguishing

Technical Data Sheet

General Properties Value Test Method Unit
Density 1.36 ISO 1183 g/cm³
Water Absorption 0.25 ISO 62 %
Flammability HB / HB UL 94 /
Mechanical Properties
Yield Stress 85 ASTM D638 MPa
Elongation @ Break 15 ASTM D638 %
Tensile Modulus of Elasticity 3000 ASTM D638 MPa
Notched Impact Strength (Charpy) 2 DIN EN ISO 179 kJ/m2
Ball Indentation Hardness 170 DIN EN ISO 2039-1 MPa
Shore Hardness 84 DIN EN ISO 868 Scale D
Thermal Properties
Melting Temperature 255 ISO 11357-3 °C
Thermal Conductivity 0.28 DIN 52612-1 W / (M*K)
Thermal Capacity 1.1 DIN 52612 kJ / (kg*K)
Coefficient of Linear Thermal Expansion 60 DIN 53752 10-6K-1
Service Temperature, Long Term -20 up to +115 Average °C
Service Temperature, Short Term (Max.) 180 Average °C
Heat Deflection Temperature 80 ASTM D648 °C
Electrical Properties
Dielectric Constant 3.4 IEC 60250 /
Dielectric Dissipation Factor (50Hz) 0.001 IEC 60250 /
Volume Resistivity 10 18 IEC 60093 Ω*cm
Surface Resistivity 10 16 IEC 60093 Ω
Comparative Tracking Index 600 IEC 60112
Dielectric Strength 20 ASTM D149 kV/mm

Application For PET Sheet

APET Film is widely used for packaging consumer goods, electrical Accessories, and medical products. In packaging applications, PET sheets act as Excellent barriers to acids and strong oxidizers.

- Packaging

- Folding box

- Vacuum therm-forming
- Blister Pack

Package

Transparent APET Film Face Shield Plastic Sheet 0.18mm - 2mmTransparent APET Film Face Shield Plastic Sheet 0.18mm - 2mm

FAQ

Q1. Are you a factory or trade company?

A: We are a professional manufacturer with 15 years of experience. If you have interest welcome to visit our factory.

Q2. Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample free, but freight collection charges.

Q3. How about the lead time?

A: Normal sample supply it at once. Custom samples need 3 days. Mass production generally requires 5-10 working days after receiving your initial payment.

Q4. Do you have any MOQ limits?

A: Normal Only 1000kg, Special colors about 2000kg.

Q5. What are your terms of payment?

A: 30% T/T in advance, balance before shipment. We accept L/C at Sight.
