3D Composite Drainage Net with High Tensile Strength ≥16kN/m, Excellent UV Resistance, and Anti-Clogging Design for Landfill and Roadbed Applications
3D Composite Drainage Net with High Tensile Strength ≥16kN/m, Excellent UV Resistance, and Anti-Clogging Design for Landfill and Roadbed Applications
3D Composite Drainage Net with High Tensile Strength ≥16kN/m, Excellent UV Resistance, and Anti-Clogging Design for Landfill and Roadbed Applications
3D Composite Drainage Net with High Tensile Strength ≥16kN/m, Excellent UV Resistance, and Anti-Clogging Design for Landfill and Roadbed Applications
3D Composite Drainage Net with High Tensile Strength ≥16kN/m, Excellent UV Resistance, and Anti-Clogging Design for Landfill and Roadbed Applications
3D Composite Drainage Net with High Tensile Strength ≥16kN/m, Excellent UV Resistance, and Anti-Clogging Design for Landfill and Roadbed Applications
Specifications
Brand Name :
JianYi
Model Number :
4mm-8mm
Certification :
ISO 9001 CE
Place of Origin :
China
MOQ :
90㎡
Price :
0.96USD~3.44USD per sqm
Payment Terms :
L/C,D/P
Supply Ability :
600T/Month
Delivery Time :
7-15 days
Color :
Black
Chemical Resistance :
Excellent
Width :
2m-6m
Uv Resistance :
Excellent
Length :
50m-100m
Tensile Strength :
≥16kN/m
Weight :
≥200g/m2
Application :
Landfill, roadbed, railway, tunnel, retaining wall
Description
3D Composite Drainage Net – Integrated Filtration-Drainage-Protection System
Product Overview

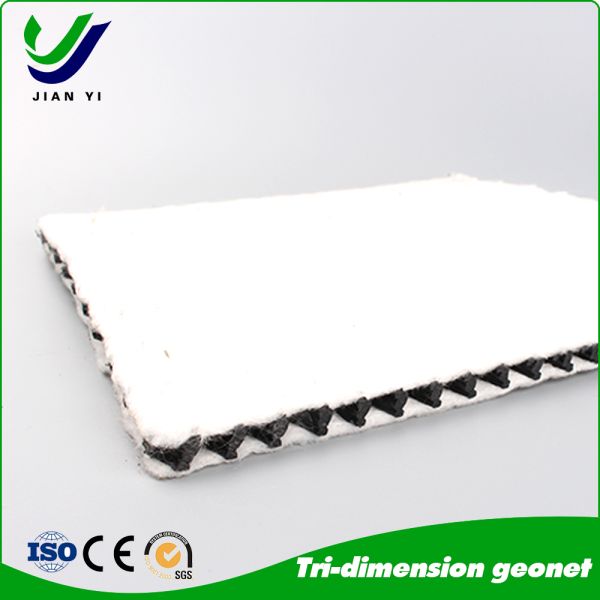

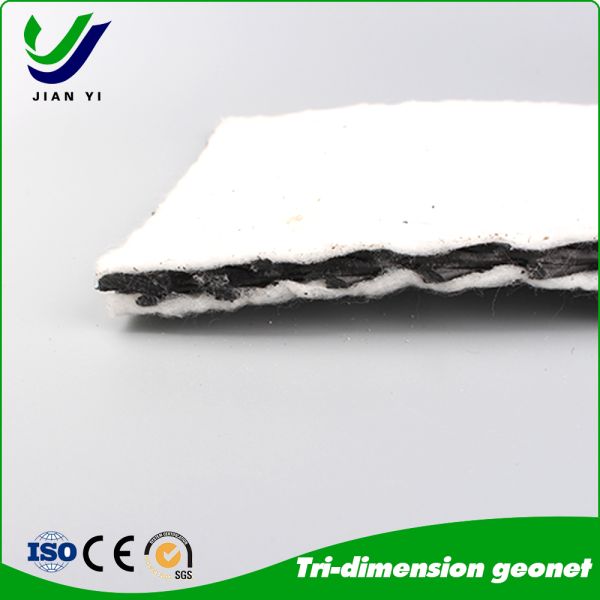

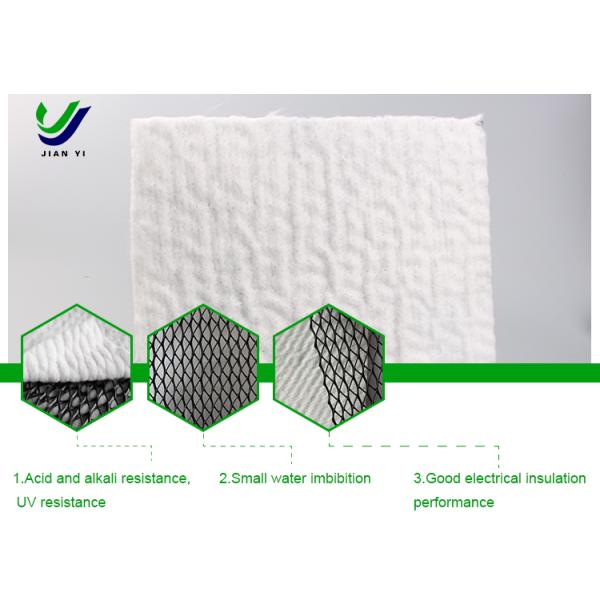

Made of a unique 3D geonet bonded with geotextiles on both sides, this composite drainage net combines filtration, drainage, and protection functions into a complete integrated system. The innovative 3D net core structure maintains substantial thickness under high compressive loads while providing excellent hydraulic conductivity throughout its service life.

Key Features
  • Strong drainage capacity: Unique 3D channel design ensures rapid water discharge and maintains stable hydraulic conductivity long-term
  • High compressive strength: Withstands over 2000 Kpa compressive load, significantly higher than ordinary drainage nets, with minimal deformation under pressure
  • Excellent mechanical properties: High tensile and shear strength to withstand construction tension and external impact
  • Anti-clogging design: Reduces geotextile embedding into net core, ensuring stable drainage performance and extended service life
Application Scenarios
  • Landfill leachate drainage systems
  • Groundwater drainage projects
  • Closure surface infiltration port drainage
  • Highway subgrade and pavement drainage
  • Railway drainage systems
  • Tunnel drainage applications
  • Underground structure drainage
  • Retaining wall backfill drainage
  • Garden and sports field drainage
Installation Guidelines

Lightweight and flexible design facilitates easy transport and installation. The material can be custom-cut to match project dimensions and shapes. Lay on clean, flat base surfaces with 10-15cm overlap between adjacent sections. Secure using staples or adhesive methods. Compatible with geomembranes and other materials to create comprehensive drainage and anti-seepage systems.
