JIANKE CS12-5 Twin Spindle 5 Axis Swiss Type CNC Lathe with Rotary Guide Bush and Internal Oil Cooled Electric Spindle
JIANKE CS12-5 Twin Spindle 5 Axis Swiss Type CNC Lathe with Rotary Guide Bush and Internal Oil Cooled Electric Spindle
Specifications
Place of Origin :
Made in China
value :
1860KG
MOQ :
1
Brand Name :
JianKe
parameter :
Lathe weight
Description
CS12-5 Twin Spindle 5 Axis Swiss Type CNC Lathe Machine
Product Overview
The CS12-5 is a high-precision twin spindle 5-axis Swiss type CNC lathe designed for complex machining operations with exceptional accuracy and efficiency.
JIANKE CS12-5 Twin Spindle 5 Axis Swiss Type CNC Lathe with Rotary Guide Bush and Internal Oil Cooled Electric Spindle JIANKE CS12-5 Twin Spindle 5 Axis Swiss Type CNC Lathe with Rotary Guide Bush and Internal Oil Cooled Electric Spindle
Key Features
Dual Mode Operation
Supports rotary guide bush mode for shaft workpieces (135mm single feeding length) and without guide bush mode for short workpieces with length to diameter ratio less than 1:2.5.
Advanced Spindle Technology
Japanese oil-cooled electric spindle with NSK bearings for superior rigidity, torque, and long-term accuracy stability.
Efficient Chip Management
Integrated scrap collection tank with 190L cutting oil tank featuring multi-stage filtration and cooling systems.
Flexible Workpiece Ejection
Front conveyor belt collection for parts under 85mm, rear ejection through sub-spindle for longer components.

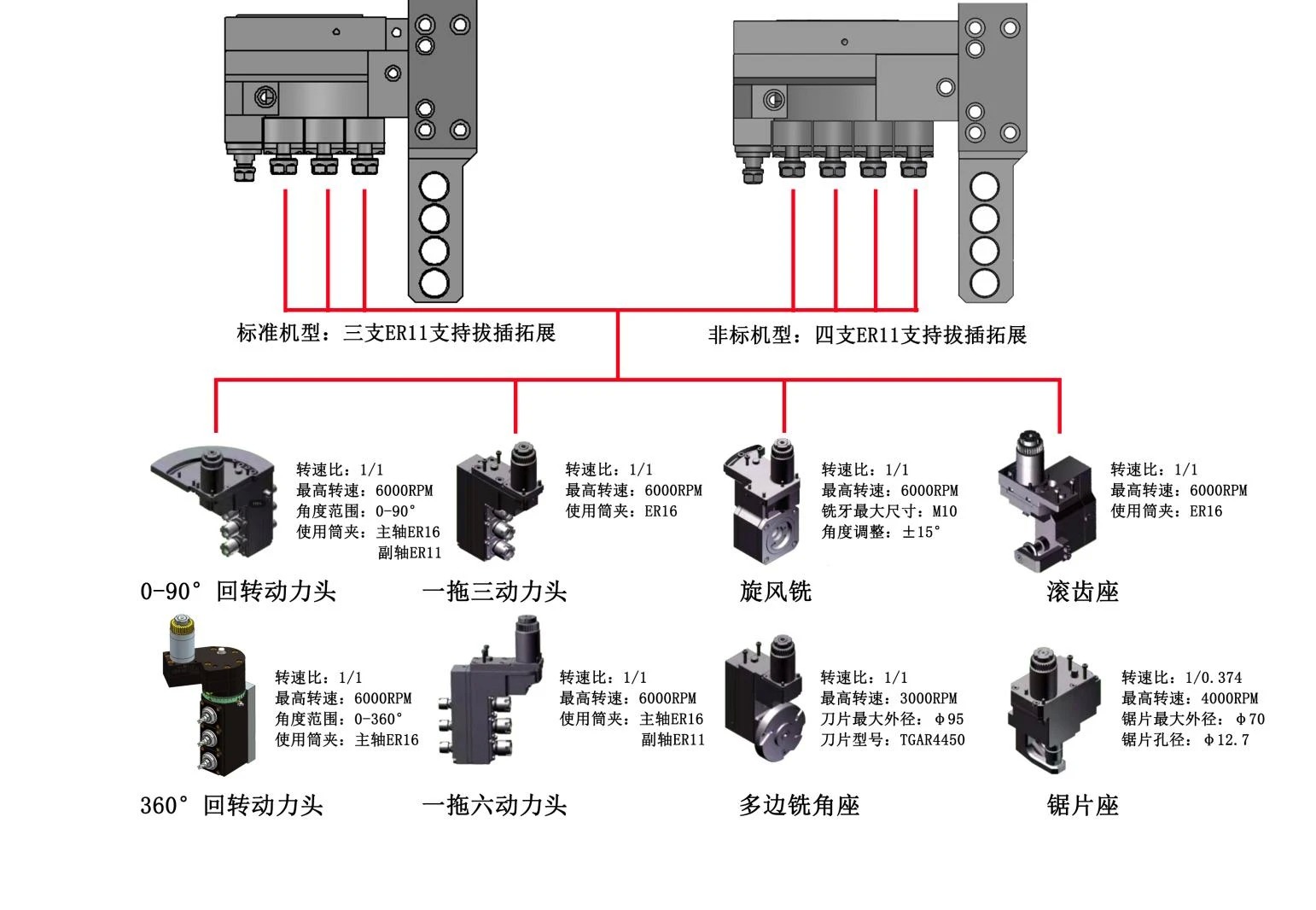

Modular Expansion
Standard configuration includes 1 ER8 + 3 ER11 tool positions with support for additional modular functions.
JIANKE CS12-5 Twin Spindle 5 Axis Swiss Type CNC Lathe with Rotary Guide Bush and Internal Oil Cooled Electric Spindle
Technical Specifications
Specification Details
Control System SYNTEC 220TB-A Dual Channel
Minimum Setting Unit 0.001mm
Max Processing Diameter 12mm
Main Spindle Speed 10,000 rpm
Sub Spindle Speed 12,000 rpm
Tool Configuration 6*10*10mm OD tools, 4 side rotary tools, 4 end face tools
Moving Axis 5 Axis (X1, Y1, Z1, X2, Z2)
Rapid Feed Speed 32 m/min
Power Capacity 20kW
Machine Dimensions 2230*1250*1785mm
Machine Weight 1860kg
Standard Accessories
Item Quantity Description
Protective Cover 1 set Complete machine protection
Spindles 2 units Main and sub spindle assembly
Tool Holders Multiple sets Various tool holder configurations
Cooling System 1 set Complete cooling system
Parts Collector 1 set Front ejector with belt conveyor
Documentation 1 set Complete manuals and quality reports
Optional Equipment
Available options to enhance functionality and automation:
  • Bar Feeder - Essential for automated production
  • High Pressure Pump - For improved chip removal
  • Oil Mist Collector - Workshop environment maintenance
  • Chip Conveyor - Automated chip removal system
  • Plug-in Modules - Various specialized tooling options
Please confirm specific optional equipment requirements with JIANKE based on actual machining needs.
Material Requirements
For optimal performance with long bar materials:
  • Use polished/precision drawn materials (≤3M length)
  • Diameter tolerance within ±0.02mm
  • Roundness tolerance within 0.005-0.01mm
  • Straightness within 0.35mm/m
  • Chamfered ends on all bar materials
  • Special preparation required for hard materials (HRC28+)
Quality Assurance & Support
Comprehensive one-year warranty with ongoing technical support:
  • Pre-sales: Free basic training at factory
  • In-sales: On-site installation and training
  • After-sales: 24-hour response for technical issues
  • Long-term spare parts and technical support
