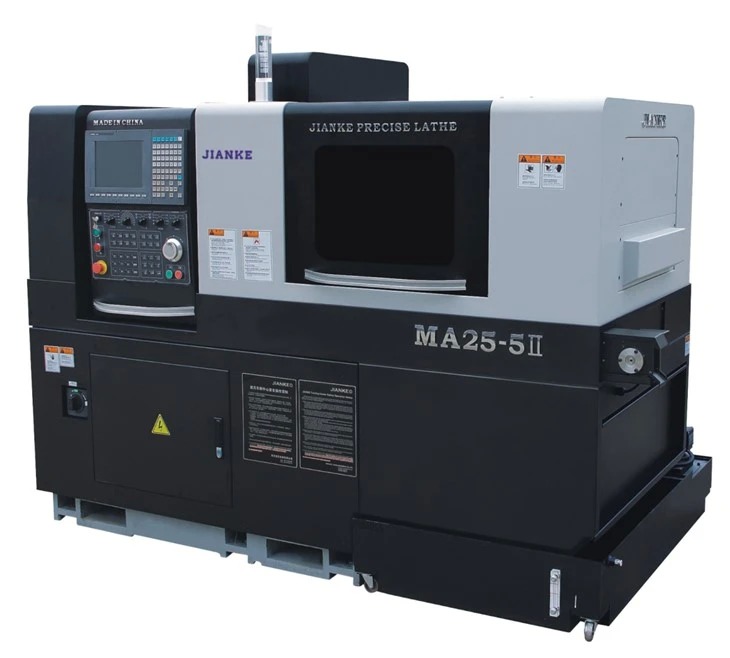

JIANKE MA25-5II Swiss Type CNC Lathe with High-Quality Spindle, User-Friendly Control System, and Versatility for Precision Machining
JIANKE MA25-5II Swiss Type CNC Lathe with High-Quality Spindle, User-Friendly Control System, and Versatility for Precision Machining
JIANKE MA25-5II Swiss Type CNC Lathe with High-Quality Spindle, User-Friendly Control System, and Versatility for Precision Machining
JIANKE MA25-5II Swiss Type CNC Lathe with High-Quality Spindle, User-Friendly Control System, and Versatility for Precision Machining
JIANKE MA25-5II Swiss Type CNC Lathe with High-Quality Spindle, User-Friendly Control System, and Versatility for Precision Machining
JIANKE MA25-5II Swiss Type CNC Lathe with High-Quality Spindle, User-Friendly Control System, and Versatility for Precision Machining
JIANKE MA25-5II Swiss Type CNC Lathe with High-Quality Spindle, User-Friendly Control System, and Versatility for Precision Machining
JIANKE MA25-5II Swiss Type CNC Lathe with High-Quality Spindle, User-Friendly Control System, and Versatility for Precision Machining
Specifications
Brand Name :
JianKe
Detail :
3050KG
Place of Origin :
Made in China
Parameter :
Lathe weight
Description
Swiss Type CNC Lathe
Product Overview

Our Swiss Type CNC Lathe is a precision machining tool designed for complex operations and high-volume production. Featuring a sliding headstock that moves back and forth to support workpieces, this machine delivers superior precision and smooth finishes compared to conventional lathes.

Key Features
  • High-Quality Spindle: High-speed spindle maintaining precision and accuracy for faster machining and improved efficiency
  • User-Friendly Control System: Easy programming and execution of complex operations, reducing downtime
  • Versatility: Handles wide range of machining applications from simple to complex parts
  • High-Quality Construction: Durable, reliable components for consistent long-term performance
Key Benefits
  • Increased Productivity: Reduced downtime and higher part output
  • Greater Precision: Exceptional accuracy meeting customer expectations
  • Improved Efficiency: Streamlined manufacturing process reducing costs
  • Enhanced Flexibility: Versatile applications for varied part production
Technical Specifications
JIANKE MA25-5II Swiss Type CNC Lathe with High-Quality Spindle, User-Friendly Control System, and Versatility for Precision Machining JIANKE MA25-5II Swiss Type CNC Lathe with High-Quality Spindle, User-Friendly Control System, and Versatility for Precision Machining JIANKE MA25-5II Swiss Type CNC Lathe with High-Quality Spindle, User-Friendly Control System, and Versatility for Precision Machining
Machine Characteristics

Rotary Guide Bush/Without Guide Bush Changeable Modes: Supports both modes - rotary for slender bars (single feeding length 195-200mm) and without guide bush for short workpieces (length to diameter ratio less than 1:2.5).

Internal Oil Cooled Electric Spindle: Japanese technology with NSK bearings for enhanced rigidity, torque, and stability.

Scrap Collection System: 250L capacity cutting oil tank with multi-channel filtration and oil chip separation.

Workpiece Ejection: Front discharge for parts under 90mm, rear discharge through sub-spindle for longer parts.

Modular Expansion: Standard 2 ER11 + 2 ER16 configuration with expandable tool positions.

JIANKE MA25-5II Swiss Type CNC Lathe with High-Quality Spindle, User-Friendly Control System, and Versatility for Precision Machining
Technical Data - MA25-5Ⅱ
SpecificationDetails
Control SystemTaiwan SYNTEC 220TB
Max Processing Diameter26 mm
Main Spindle Speed10,000 rpm
Sub Spindle Speed10,000 rpm
Main Spindle Power2.2kw/3.7kw (Rated/Max)
Tool Positions6 O.D. tools + 4 side rotary + 4 end face fixed
Rapid Feed Speed24-32 m/min
Machine Dimensions2.65m * 1.4m * 1.75m
Machine Weight3050 kg
Power Capacity22 kw
Standard Accessories
ItemQuantityDescription
Protective Cover1 setFull machine protection
Tool HoldersMultiple sets1*16X16mm + 5*12X12 turning tools
Rotary Tool Bases2 sets2*ER11 + 2*ER16 side rotary tools
Drilling Tool Bases2 setsMain & sub spindle end face tools
Cooling System1 setComplete cooling infrastructure
Parts Collector1 setFront ejector with belt conveyor
Optional Equipment
OptionFunctionRecommendation
Bar FeederAutomatic feeding for long barsRecommended essential
High Pressure PumpChip breakage prevention & tool life extensionSelect according to demand
Oil Mist CollectorWorkshop environment maintenanceSelect according to demand
Chip ConveyorAutomated chip removalSelect according to demand
Plug Type ModulesAdditional machining functionsConfirm with requirements
Main Component Brands
ComponentBrand/Origin
Control SystemSYNTEC (Taiwan)
Spindle & DriverOil cooling electric spindle / Mitsubishi
BearingsNSK (Japan)
Guide RailsTHK/Hiwin/PMI
Electrical ComponentsSchneider (France)
Relays & SwitchesOmron (Japan)
Material Requirements
  • Polished/precision drawn materials recommended
  • Diameter tolerance: ±0.02mm
  • Roundness tolerance: 0.005-0.01mm
  • Straightness: within 0.35mm/m
  • Both ends chamfered
  • Special requirements for materials above HRC28 hardness
Quality Assurance & Support

Warranty: One year from final acceptance date with free service for normal use damage.

Pre-sales Service: Free basic training at factory for technical personnel.

In-sales Service: On-site basic training upon equipment arrival.

After-sales Service: 24-hour response for on-site resolution requirements.

Technical Support: Remote guidance and paid programming/debugging services.

Domestic End Users
JIANKE MA25-5II Swiss Type CNC Lathe with High-Quality Spindle, User-Friendly Control System, and Versatility for Precision Machining
China Industry Standard Parts
JIANKE MA25-5II Swiss Type CNC Lathe with High-Quality Spindle, User-Friendly Control System, and Versatility for Precision Machining
Chongqing Electronic Technology
JIANKE MA25-5II Swiss Type CNC Lathe with High-Quality Spindle, User-Friendly Control System, and Versatility for Precision Machining
Poyang Black Diamond
JIANKE MA25-5II Swiss Type CNC Lathe with High-Quality Spindle, User-Friendly Control System, and Versatility for Precision Machining
China Hongqi Instrument
Why Choose JIANKE?
  • Top-tier Swiss Lathe products with unrivaled quality
  • Exceptional customer service and technical support
  • Professional Chinese factory specializing in precision machining
  • Hassle-free experience from ordering to delivery
  • Commitment to honesty, quality, and innovation
  • Competitive pricing without compromising performance
