JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision
JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision
JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision
JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision
JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision
JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision
JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision
JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision
JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision
JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision
JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision
JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision
Specifications
Motor power :
Main spindle 3.7kw, Side rotary head 0.75kw, Axis motor 0.75kw
Dimensions :
1.87m x 1.45m x 1.65m
Control channel :
Single channel
Place of Origin :
Made in China
Machining ability :
Max processing dia. 25 mm, Max material feeding length 195mm (with guide bush)
Weight :
1980KG
Main spindle :
Speed 8000rpm/min, Indexing 0.001°, Throughhole dia 26mm
Brand Name :
JianKe
Minimum setting unit :
0.001mm
Fastest moving speed :
24 m/min
System :
Taiwan Syntec
Description
3 Axis CNC Lathe
Product Overview

The 3 Axis CNC Lathe integrates advanced technology to deliver precision engineering and exceptional performance. Manufactured in China with rigorous testing, this product meets and exceeds international standards for quality and reliability.

Designed for global merchants seeking innovative, cost-effective machining solutions, this versatile lathe handles manufacturing, repair, and prototyping applications across various materials including metal, plastic, and wood.

Key Features
  • Three axes move simultaneously for creating complex components with greater freedom
  • High versatility for producing clamps, fixtures, inventory, and various mechanical parts
  • Optional automatic tool changers for multiple operations on a single device
  • Upgradable to 3+1 and 3+2 configurations approaching five-axis capabilities
  • Programmable data can be reused multiple times after initial entry

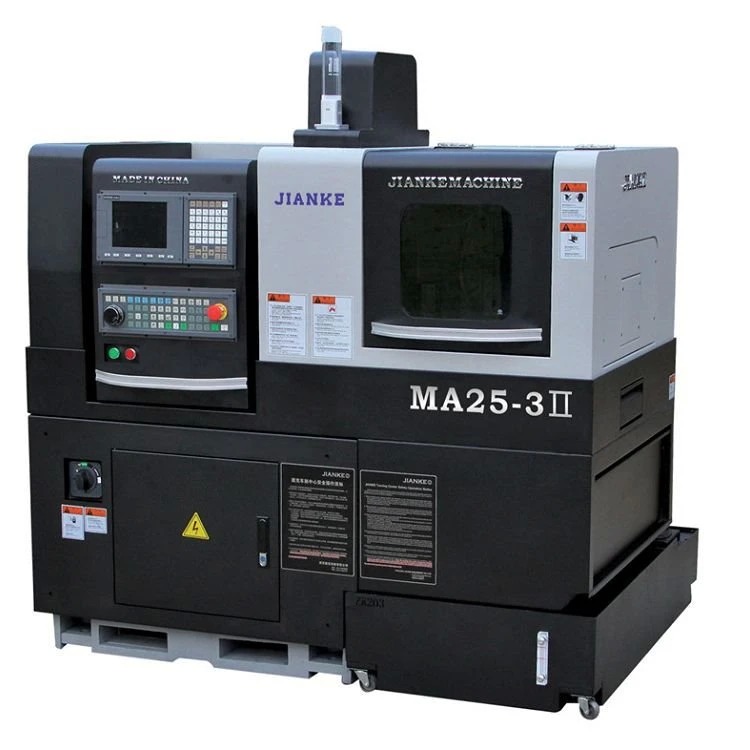

Machine Appearance & Structure
JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision

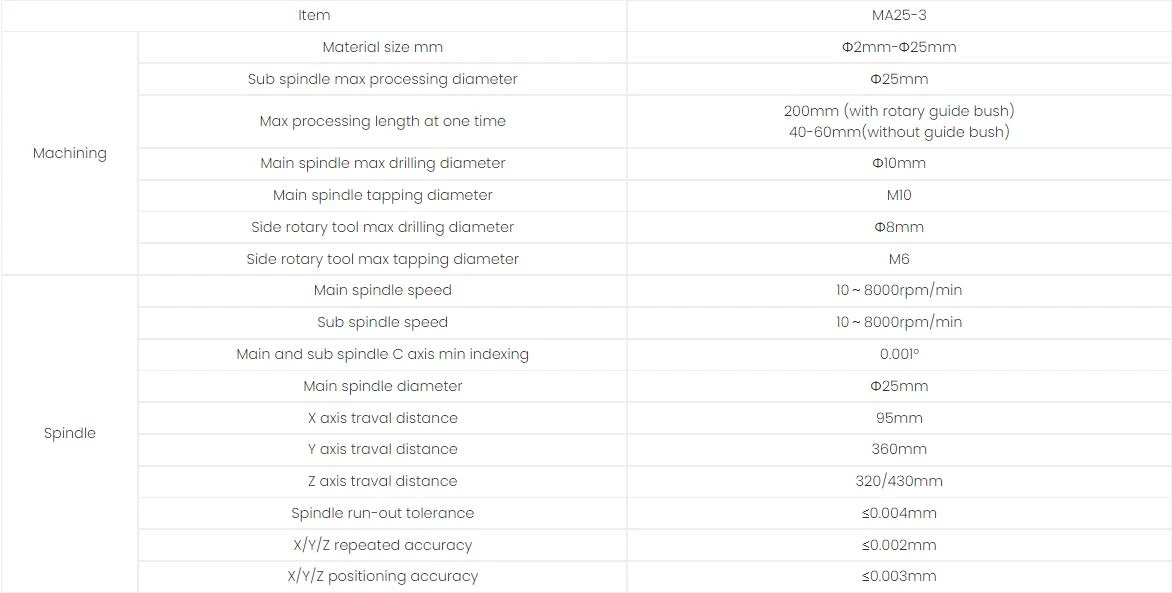

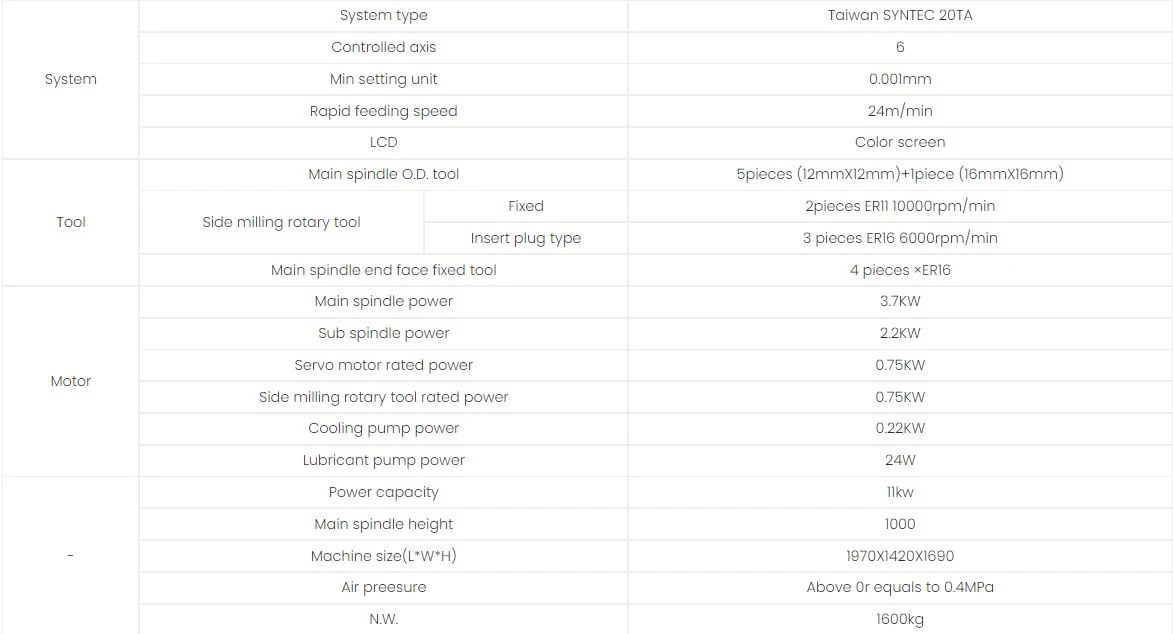

Technical Specifications
JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision

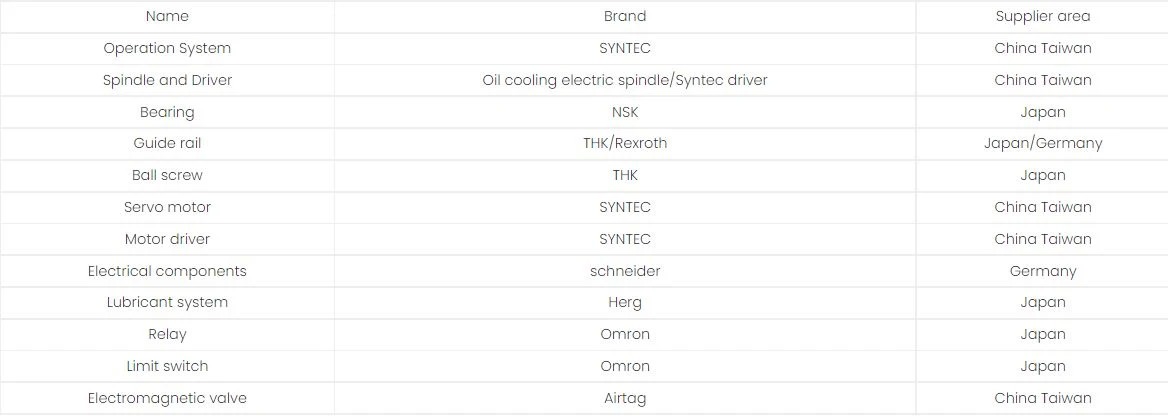

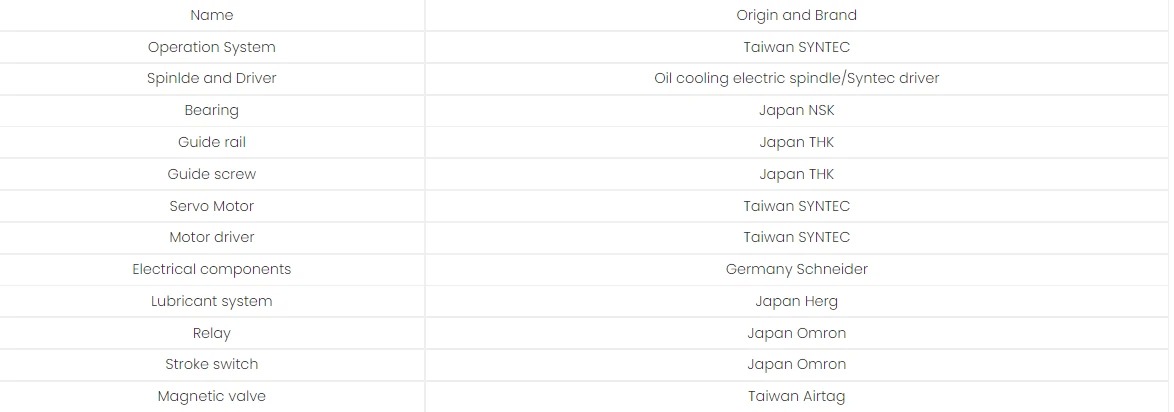

Main Accessory Brands & Origin
JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision
Single Spindle Swiss CNC Lathe MA25-3II Specifications
System Taiwan Syntec | Syntec21TB-H
Control Channel Single Channel
Minimum Setting Unit 0.001mm
Fastest Moving Speed 24 m/min
Max Processing Diameter 25 mm
Max Material Feeding Length With guide bush: 195mm | Without guide bush: 1:2.5D (Diameter:Length)
Main Spindle Speed 8000 rpm/min
Main Spindle Power 3.7kw
Moving Axis Number 3 axis (X,Y,Z)
Power Supply 11.2kw
Lathe Size 1.87m × 1.45m × 1.65m
Lathe Weight 1980 KG

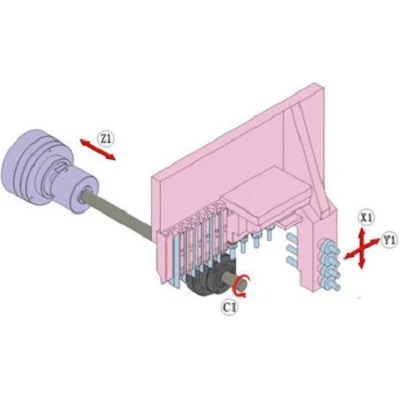

Machine Configuration
JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision

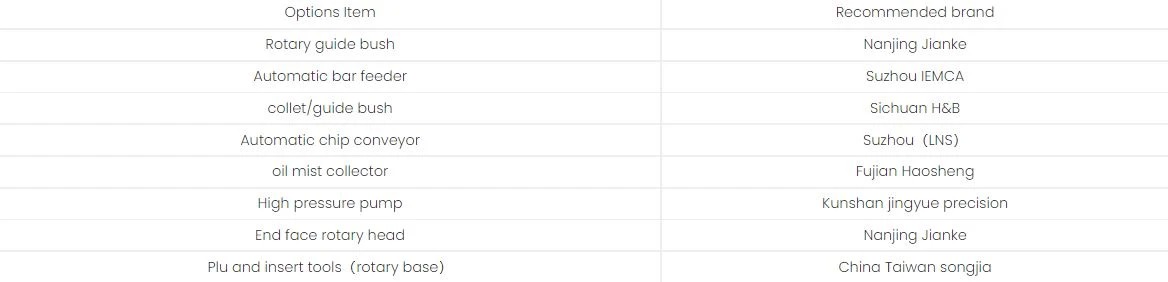

Optional Accessories
JIANKE MA25-3II 3 Axis CNC Lathe Swiss Type with 8000rpm/min Spindle Speed Max 25mm Processing Dia and 0.001mm Precision
Why Choose Our 3 Axis CNC Lathe
  • Premium materials and state-of-the-art machinery ensure superior Precision Lathe products
  • Dedicated focus on 3 Axis CNC Lathe development enhances product performance and quality
  • Transparent communication and honest recommendations for all customer needs
  • Commitment to continuous learning and industry leadership in Precision Lathe technology
  • Investment in latest technology and infrastructure for high-quality products and services
  • Building quality with strength and providing perfect solutions for international markets
3 axis cnc lathe mill lathe 5 axis gantry cnc machine swiss cnc lathe for sale computer lathe precision turning machine 9 axis lathe
