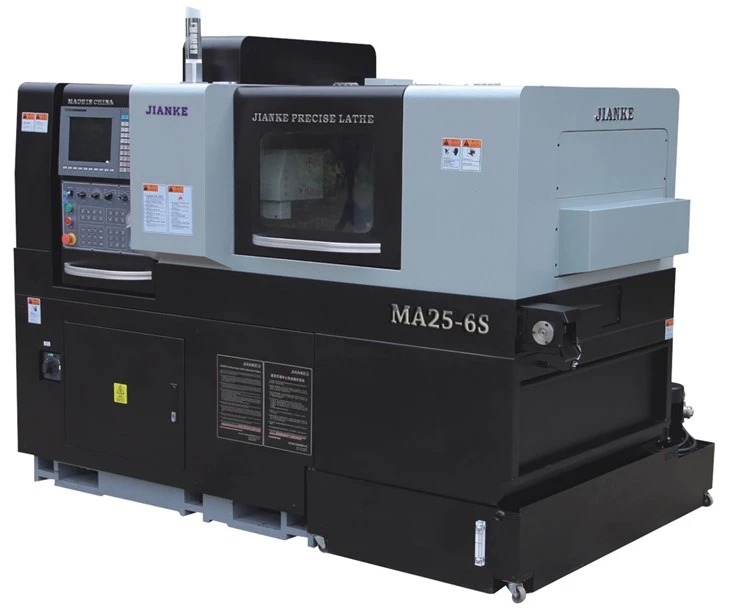

JIANKE MA25-6S 6 Axis CNC Lathe with Dual Channel Control, 10000rpm/min Speed, and 26mm Through Hole Dia Swiss Type CNC Lathe
JIANKE MA25-6S 6 Axis CNC Lathe with Dual Channel Control, 10000rpm/min Speed, and 26mm Through Hole Dia Swiss Type CNC Lathe
JIANKE MA25-6S 6 Axis CNC Lathe with Dual Channel Control, 10000rpm/min Speed, and 26mm Through Hole Dia Swiss Type CNC Lathe
JIANKE MA25-6S 6 Axis CNC Lathe with Dual Channel Control, 10000rpm/min Speed, and 26mm Through Hole Dia Swiss Type CNC Lathe
JIANKE MA25-6S 6 Axis CNC Lathe with Dual Channel Control, 10000rpm/min Speed, and 26mm Through Hole Dia Swiss Type CNC Lathe
JIANKE MA25-6S 6 Axis CNC Lathe with Dual Channel Control, 10000rpm/min Speed, and 26mm Through Hole Dia Swiss Type CNC Lathe
JIANKE MA25-6S 6 Axis CNC Lathe with Dual Channel Control, 10000rpm/min Speed, and 26mm Through Hole Dia Swiss Type CNC Lathe
JIANKE MA25-6S 6 Axis CNC Lathe with Dual Channel Control, 10000rpm/min Speed, and 26mm Through Hole Dia Swiss Type CNC Lathe
JIANKE MA25-6S 6 Axis CNC Lathe with Dual Channel Control, 10000rpm/min Speed, and 26mm Through Hole Dia Swiss Type CNC Lathe
JIANKE MA25-6S 6 Axis CNC Lathe with Dual Channel Control, 10000rpm/min Speed, and 26mm Through Hole Dia Swiss Type CNC Lathe
Specifications
Main spindle tapping Dia :
M8
Motors :
Main spindle power: 2.2kw/3.7kw; Sub spindle power: 2.2kw/3.7kw; Moving axis motor power: 1.0kw
Spindles :
Internal oil cooling electric spindle
Through hole Dia :
26mm
Brand Name :
JianKe
Minimum setting unit :
0.001mm
Place of Origin :
Made in China
Machining Ability :
Max processing diameter 26 mm
Control channels :
Dual channel
Maximum single feeding length :
Rotary guide bush: 200mm; Without guide bush: 1:2.5D
Speed :
10000rpm/min
Main spindle max drilling Dia :
Φ10mm
Rapid feeding speed :
X1,Y2: 24m/min; Y1,Z1,X2,Z2: 32m/min
Indexing :
0.001°
System :
Taiwan SYNTEC
Description
6 Axis CNC Lathe
Product Overview

The 6 Axis CNC Lathe represents a revolutionary advancement in modern manufacturing technology. This state-of-the-art equipment delivers exceptional speed and precision in cutting and shaping materials to produce high-quality finished products.

At its core, this lathe features a sophisticated 6-axis CNC (Computer Numerical Control) system capable of cutting, drilling, and shaping materials with unmatched accuracy. The user-friendly interface enables both experienced machinists and novices to efficiently operate the machine for specific cutting requirements.

Compact Design

Unlike traditional lathes, this product features a space-saving, lightweight design ideal for workshops and factories with limited space.

Cost-Effective

Advanced technology at a competitive price point, making it an excellent choice for small and medium-sized businesses.

High Performance

Despite its compact size, delivers powerful performance with high-speed spindle and precision bearings.

Durable Construction

Rust-resistant body ensures longevity and durability in demanding manufacturing environments.

MA25-6S Technical Specifications
JIANKE MA25-6S 6 Axis CNC Lathe with Dual Channel Control, 10000rpm/min Speed, and 26mm Through Hole Dia Swiss Type CNC Lathe JIANKE MA25-6S 6 Axis CNC Lathe with Dual Channel Control, 10000rpm/min Speed, and 26mm Through Hole Dia Swiss Type CNC Lathe JIANKE MA25-6S 6 Axis CNC Lathe with Dual Channel Control, 10000rpm/min Speed, and 26mm Through Hole Dia Swiss Type CNC Lathe
Key Features
Rotary Guide Bush / Without Guide Bush Changeable Modes

Supports interchangeable modes for optimal flexibility. Rotary guide bush mode processes shaft workpieces with single feeding length of 195-200mm and multiple feeding capability. Without guide bush mode handles short workpieces with length-to-diameter ratio under 1:2.5, minimizing tail material length to 50mm.

Internal Oil Cooled Electric Spindle

Utilizes Japanese oil-cooled electric spindle technology with independent R&D. Features enhanced rigidity, torque force, and processing stability compared to same-power alternatives. NSK bearings extend spindle life and ensure radial stability.

Advanced Scrap Collection System

250L capacity cutting oil tank with multi-channel filter screens and oil return baffles. Separation platform for preliminary oil-chip separation, extending oil pump service life through efficient debris filtration.

Flexible Workpiece Ejection

Short parts (under 90mm) eject to front conveyor belt; long parts eject from rear of sub-spindle through side sheet metal slot.

Powerful Sixth Axis Tool Holder
JIANKE MA25-6S 6 Axis CNC Lathe with Dual Channel Control, 10000rpm/min Speed, and 26mm Through Hole Dia Swiss Type CNC Lathe
Tool Holder End Face Rotary Tools End Face Fixed Tools Side Rotary Tools O.D. Turning Tools
Regular 6 Axis 4 pieces 4 pieces None None
S Series 6 Axis 3 pieces 4 pieces 4 pieces 2 pieces
Enhanced Capabilities
  • Turning Tools: S series includes 2×12×12 square tool shanks for superior O.D. turning rigidity
  • Side Milling Tools: Standard 4 ER16 side rotary tools, expandable to maximum 6 tools
  • End Face Milling: Standard 3 ER16 end face rotary tools, expandable to maximum 6 tools
High Modular Expansion
JIANKE MA25-6S 6 Axis CNC Lathe with Dual Channel Control, 10000rpm/min Speed, and 26mm Through Hole Dia Swiss Type CNC Lathe

MA series lathes standard equipped with 2×ER11 + 2×ER16 rotary tools. MA25-6S model supports plug-in expansion modules for both main and sub-spindle rotary tools.

Technical Specifications
System Taiwan SYNTEC Syntec220TB
Control Channels Dual channel
Minimum Setting Unit 0.001mm
Max Processing Diameter 26 mm
Main Spindle Power 2.2kw/3.7kw (Rated/Max)
Spindle Speed 10000rpm/min
Moving Axis 6 axis (X1,Y1,Z1,X2,Y2,Z2)
Lathe Size 2.69m × 1.53m × 1.76m
Lathe Weight 3350 KG
Standard Accessories
NO Name Qty
1 Protective cover 1 set
2 Nameplate 1 piece
3 Spindle 2 units
4 Knife holder for turning tools 1 set
5 Main spindle side rotary tools base 1 set
6 Main spindle end face drilling base 1 set
7 Sub spindle turning tools 1 set
8 Sub spindle side rotary tools base 1 set
9 Sub spindle end face rotary tools 1 set
10 Sub spindle end face drilling tools base 1 set
Optional Equipment
NO Name Functions
1 Bar feeder Automatic feeding for long bar materials; enables automated production
2 High pressure pump Assists with chip-breaking materials, extends tool life, improves accuracy
3 Oil mist collector Absorbs atomized oil mist, maintains workshop environment
4 Chip conveyor Chain-type conveyor removes chips, reduces manual chip removal
5 Plug type modules Various expansion modules for specialized processing requirements
Quality Assurance & Technical Support
  • Warranty: One year from final acceptance date
  • Pre-sales Service: Free basic training for technical personnel
  • In-sales Service: On-site basic training upon equipment arrival
  • After-sales Service: 24-hour response for on-site resolution requirements
  • Technical Support: Remote guidance and programming assistance available
Why Choose JIANKE?
  • Exceptional customer service and worldwide support
  • Corporate philosophy of 'Serious for each Customer'
  • Superior product quality with competitive pricing
  • Proven track record of on-time delivery
  • Strong research and development capabilities
  • Leading designer and manufacturer in China
  • Professional team with rich industry experience
  • Complete operating system and management expertise
