JIANKE MR32-5II Double Spindle CNC Lathe with High-Speed Turning Precision and Superior Surface Finish for Swiss Type Applications
JIANKE MR32-5II Double Spindle CNC Lathe with High-Speed Turning Precision and Superior Surface Finish for Swiss Type Applications
JIANKE MR32-5II Double Spindle CNC Lathe with High-Speed Turning Precision and Superior Surface Finish for Swiss Type Applications
JIANKE MR32-5II Double Spindle CNC Lathe with High-Speed Turning Precision and Superior Surface Finish for Swiss Type Applications
JIANKE MR32-5II Double Spindle CNC Lathe with High-Speed Turning Precision and Superior Surface Finish for Swiss Type Applications
JIANKE MR32-5II Double Spindle CNC Lathe with High-Speed Turning Precision and Superior Surface Finish for Swiss Type Applications
JIANKE MR32-5II Double Spindle CNC Lathe with High-Speed Turning Precision and Superior Surface Finish for Swiss Type Applications
JIANKE MR32-5II Double Spindle CNC Lathe with High-Speed Turning Precision and Superior Surface Finish for Swiss Type Applications
Specifications
Detail :
3500KG
Brand Name :
JianKe
Parameter :
Lathe Weight
Place of Origin :
Made in China
Description
Double Spindle CNC Lathe
Product Overview

The Double Spindle CNC Lathe is engineered for high-volume production with two spindles operating simultaneously, enabling fast and efficient part turning. Controlled by a computer numerical control (CNC) system, this lathe ensures exceptional precision and accuracy for demanding manufacturing applications.

Key Features & Benefits
High-Speed Turning

Dual spindles work in tandem to rapidly process parts, making this lathe ideal for high-volume production runs where efficiency is critical.

Precision & Accuracy

Advanced CNC control system guarantees parts are turned with exact dimensions and tight tolerances, meeting the most demanding specifications.

Superior Surface Finish

Built-in finish control system ensures consistently high-quality surface finishes on all turned parts, eliminating the need for secondary processing.

User-Friendly Operation

Despite its advanced capabilities, the CNC control system is intuitive and easy to operate, with straightforward setup and adjustment procedures.

High Durability

Constructed from high-strength materials to withstand rigorous high-volume production environments, ensuring long-term reliability and minimal downtime.

Applications & Industries

This versatile machine serves a wide range of industries, particularly excelling in automotive, aerospace, and medical component manufacturing where precision and high-volume production are essential.

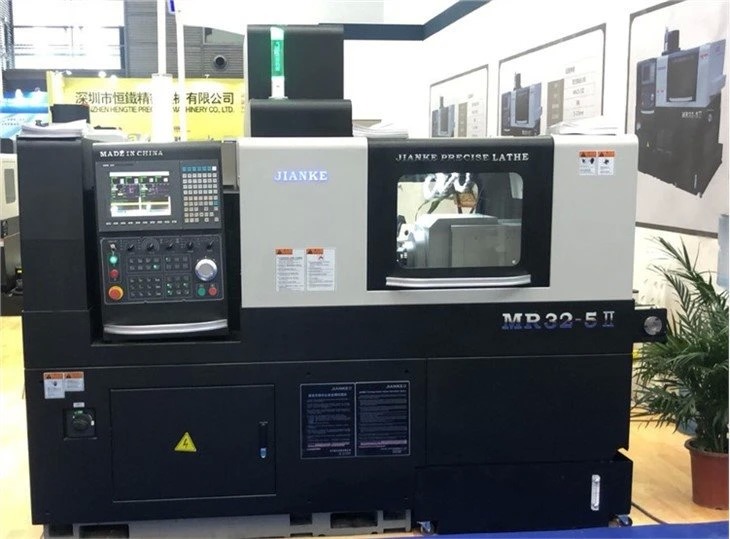

MR32-5 II Swiss CNC Lathe
JIANKE MR32-5II Double Spindle CNC Lathe with High-Speed Turning Precision and Superior Surface Finish for Swiss Type Applications
Product Description
  • Imported NSK bearings and THK linear rail screws for high precision and long service life
  • Flexible guide bushing options: no guide bushing, fixed guide bushing, power distribution guide bushes, or linkage guide bushes
  • Oil-cooled electric spindles for main and auxiliary spindles with no dead angle cooling at high speeds
  • Absolute operation system eliminates need for return to origin points
  • Flexible tool row design with multiple configuration options
  • Optional boring tool holder and interchangeable power head integration
  • 24-hour uninterrupted power supply capability

The MR series represents high-speed precision Swiss CNC lathes with turning and milling capabilities. These machines are ideal for slender shaft parts with large length-to-diameter ratios and high-volume, multi-variety, high-precision machining tasks for small and specialized parts.

Technical Specifications
System Taiwan SYNTEC | Syntec220TB
Control Channel Double Channel
Maximum Processing Diameter 35 mm
Maximum Processing Length With guide bush: 185mm | Without guide bush: 1:2.5D (Diameter:Length)
Main Spindle Speed 8000 rpm/min
Main Spindle Power 3.7kw/7.5kw (rated/maximum)
Number of Moving Axis 5 axis (X1, Y1, Z1, X2, Z2)
Rapid Feeding Speed 24 m/min
Machine Dimensions 2.8m * 1.65m * 2.0m
Lathe Weight 3500 KG
Standard Accessories
Item Description
Protective Cover 1 unit
Main Spindle 2 oil cooling electric spindles
Turning Tool Row Seat 1 upside tool seat
Pneumatic System Taiwan AIRTAG
Electrical System Schneider components
Lubrication System Japan HERG
Component Brands & Origins
Component Brand & Origin
Operation System Taiwan SYNTEC
Bearing Japan NSK
Guide Rail & Screw Japan THK / Taiwan Hiwin / Taiwan PMI
Electrical Components Germany Schneider
Lubricant System Japan Herg
Relay & Stroke Switch Japan Omron
Why Choose Our Double Spindle CNC Lathe?
  • Strong technical strength with scientific production management methods
  • Premium quality materials ensuring long-term reliability
  • Continuous innovation in Precision Lathe design and manufacturing
  • Comprehensive customer service and technical support worldwide
  • Established international talent training and development programs
  • Unwavering commitment to quality and customer satisfaction
