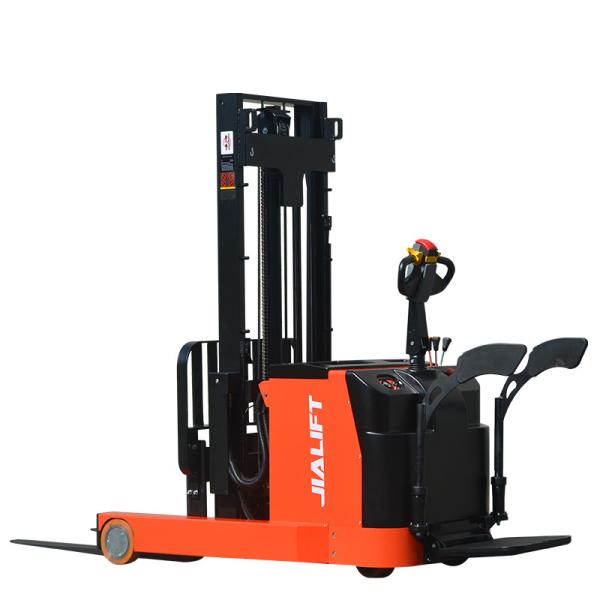

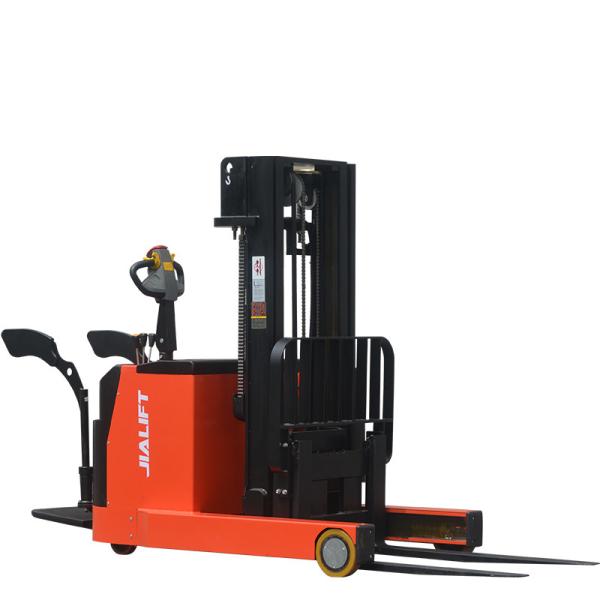

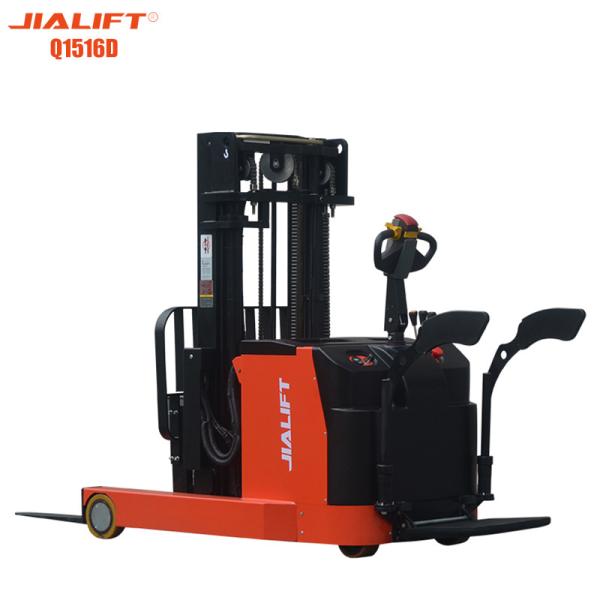

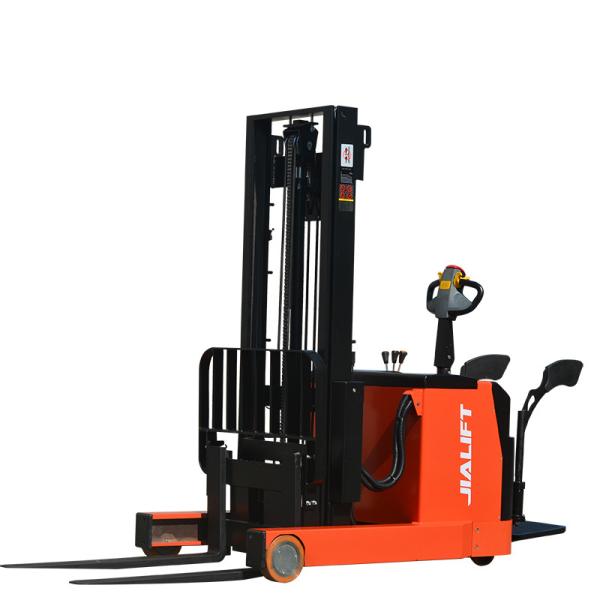

Electric Reach Stacker Standing On 1300kg Lifting Height 1600mm
Electric Reach Stacker Standing On 1300kg Lifting Height 1600mm
Electric Reach Stacker Standing On 1300kg Lifting Height 1600mm
Electric Reach Stacker Standing On 1300kg Lifting Height 1600mm
Electric Reach Stacker Standing On 1300kg Lifting Height 1600mm
Electric Reach Stacker Standing On 1300kg Lifting Height 1600mm
Electric Reach Stacker Standing On 1300kg Lifting Height 1600mm
Electric Reach Stacker Standing On 1300kg Lifting Height 1600mm
Specifications
Brand Name :
JIALIFT
Model Number :
Q1516D
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Supply Ability :
200 units per day
Delivery Time :
3 days
Packaging Details :
Pallet or container
Certification :
CE，UL
Load Capacity :
1300kg
Battery :
Lead acid/Li-lon
Drive motor,60 minute rating :
1.5kw
Lift motor rating at S3 15% :
3kw
Battery voltage/rated capacity :
24/270V/Ah
Battery weight (±5%) :
260kg
Noise level at operator 's ear :
≤70dB(A)
Description

Electric reach stacker(Standing on) Q1516D Rated traction weight 1300kg Lifting height 1600mm Reach forklift series

Electric Reach Forklift Q1516D&Q1530D&Q1545D.pdf

Electric reach stacker(Standing on) Rated traction weight 1300kg Lifting height 1600mm Reach forklift series

Product Features

1.Imported AC controller,Germany ZF vertical gearbox;
2.With self-diagnostic function,the handheld unit and the controller can display fault code,and quickly accurately troubleshoot;
3.You can choose full-free upgrading,which is convenient for vehicles to have restriction in the container or other ceiling;
4.The front wheel uses a large wheel design,the vehicle chassis is improved,the secondary wheel on both sides of the drive wheel provides a safe aid for the chassis,making the whole vehicle have both strong obstacles,and no stability.Operation is more flexible;
5.Standard the lifting limit function,when the fork is raised to the item,the system automatically cuts off the uplink power supply,smooth parking,effectively prevents the occurrence of "tweakstorm"accidents.

Characteristics
Model Q1516D
Power unit Electric
Operation Standing on
Rated traction weight Q(kg) 1300
Load centre c(mm) 500
Axle centre to fork face x(mm) 367
Wheel base y(mm) 1354
Service weight with battery kg 1745
Wheels/Tyres
Wheels type PU
Driving wheel size Φ×w(mm) Φ230×75(PU)
Bearing wheel size Φ×w(mm) Φ210×70
Additional wheels(dimensions) Φ×w(mm) Φ149×60
Wheels,number front/rear (x =driven) 1,4/2
Track width b10(mm) 620
Track width b11(mm) 960
Dimensions
Mast/fork carriage tilt,forward/backward a/b(°) 3/5
Height of mast,lowered h1(mm) 2155
Free lift h2(mm) 0
Lift h3(mm) 1600
Height of mast,extended h4(mm) 2535
Overall height(With handle h14(mm) 1050/1450
Fork Height,Lowered h13(mm 50
Overall length l1(mm) 2252(950)
Length to fork face(fork length) l2(mm) 1265
Overall width b1/b2 (mm) 896/1042
Fork dimensions s/e/l (mm) 35/100/950(1150)
Width of forks b5(mm) 200-740
Distance Between Suporrts arms/loading surfaces b4(mm) 786
Reach distance l4(mm) 500
Min.Ground clearance m2(mm) 44
Aisle width with pallet 1000 x1200 across forks Ast (mm) 2750
Aisle width with pallet 800x1200 along forks Ast(mm) 2800
Min.Turning radius Wa(mm 1670
Length across wheel arms l7(mm) 1767
Performance
Travel speed,laden/unladen (km/h) 5.2/5.5
Lifting speed,with/without load (mm/s) 100/130
Lowering speed,with/without load (mm/s) 100/100
Maximum climbing ability,with/without load (mm/s) 6/8
Service brake (%) Electromagnetic
Drive
Drive motor,60 minute rating (kW) 1.5
Lift motor rating at S3 15% (kW) 3
Battery voltage/rated capacity (V/Ah) 24/270
Battery weight (±5%) (kg) 260
Other
Type of drive control AC
Noise level at operator 's ear (dB(A)) ≤70
