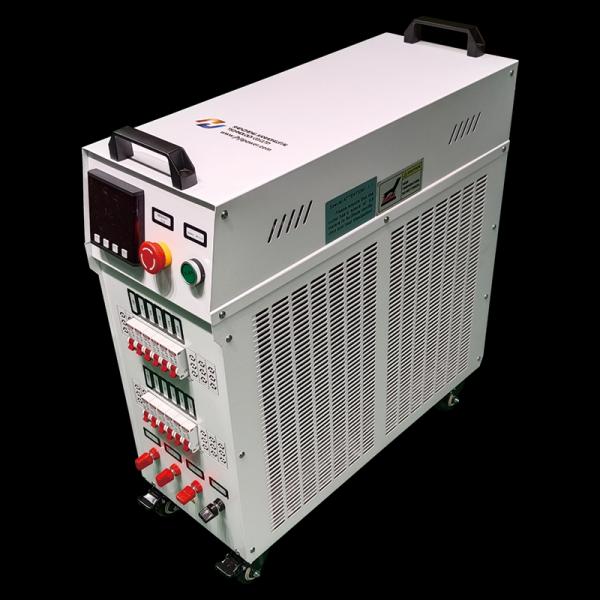

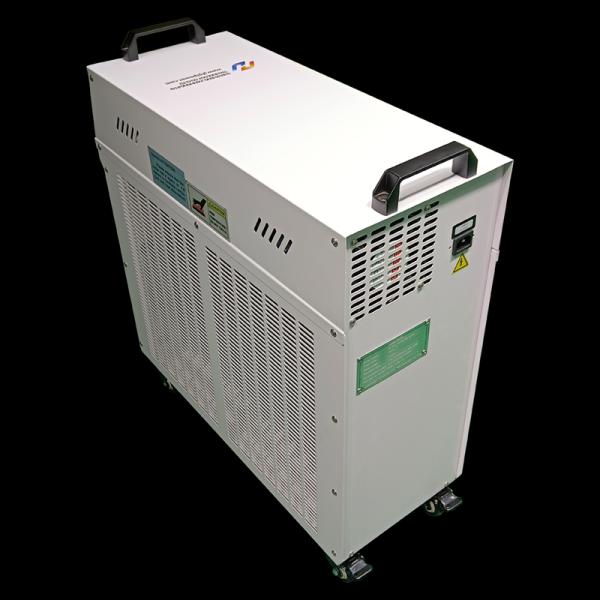

10KW AC380V Three-Phase Resistive Load Bank with Adjustable Power and Precise Resistance Control
10KW AC380V Three-Phase Resistive Load Bank with Adjustable Power and Precise Resistance Control
10KW AC380V Three-Phase Resistive Load Bank with Adjustable Power and Precise Resistance Control
10KW AC380V Three-Phase Resistive Load Bank with Adjustable Power and Precise Resistance Control
10KW AC380V Three-Phase Resistive Load Bank with Adjustable Power and Precise Resistance Control
10KW AC380V Three-Phase Resistive Load Bank with Adjustable Power and Precise Resistance Control
Specifications
Brand Name :
JIANHONG
Model Number :
JH-RYF-10KWA380-W12K
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$850-$950
Payment Terms :
T/T
Delivery Time :
20-25 work days
Packaging Details :
Wooden box
Power :
10KW
Rated voltage :
AC380V
Power factor :
1
Auxiliary power supply :
AC220V
Resistance accuracy :
±3%
Step accuracy :
10W
Description
10KW AC Three-Phase Load Bank 380V Adjustable Power Resistor
The 10KW AC Three-Phase Load Bank 380V is an efficient, reliable and versatile load test device designed for three-phase power systems. Widely used for load testing in power companies, data centers, generator sets and other industrial applications.
Key Features
  • 10KW continuous load capacity for testing power companies, generator sets, UPS power supplies and other equipment
  • Precise resistance control (±3% accuracy) for high-precision load simulation and reliable test data
  • Forced air cooling system with six 12038 fans for stable operation at high loads
  • Digital display for real-time monitoring of voltage, current and power data
  • Multiple power gears from 10W to 3KW for flexible testing configurations
  • Comprehensive protection including overheat alarm, overvoltage protection and emergency stop option
Technical Specifications
Model Number JH-RYF-10KWA380-W12K
Brand Jianhong
Dimensions ≤670*250*730MM (L*W*H)
Weight 31.2KG
Rated Voltage AC380V Three-phase four-wire
Rated Power 10KW
Auxiliary Power Supply AC220V ~AV230V 50/60HZ
Power Factor 1
Resistance Accuracy ±3% (Sheet resistor)
Cooling System Forced air cooling, left to right, 12038 fans - 6 (DC12V)
Working Environment Temperature: -10~50℃, dry and ventilated
Display Mode Digital display voltage, current, power
Applications
Generator Set Testing - Ensures stability and reliability under real workload
Power Companies - Load simulation for power system performance testing
Data Centers - Simulates power system operation under heavy load
UPS Power Testing - Verifies performance and stability in emergency situations
Industrial Equipment - Tests load capacity and safety of large power systems
The load bank features a 7*24 continuous working system with 1-year warranty, portable design with universal wheels, and includes 1 set of resistance outlets (threaded terminals) + 1 set of auxiliary power supplies (standard power outlets).
