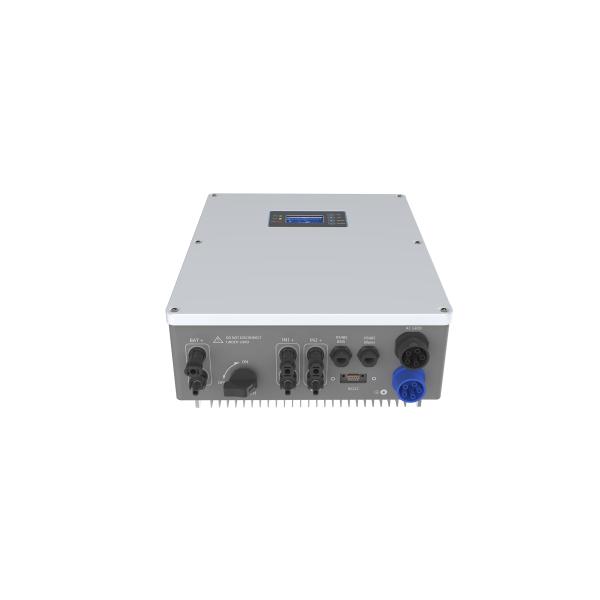

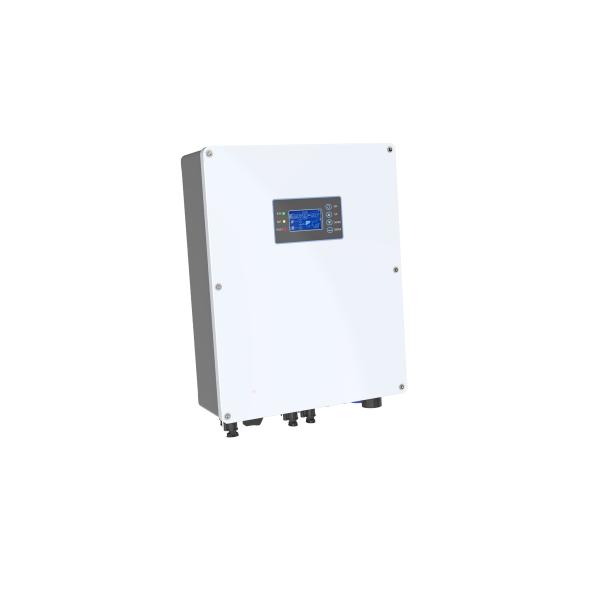

SolarMax 12K On Off Grid 3 Phase Hybrid Inverter IP65
SolarMax 12K On Off Grid 3 Phase Hybrid Inverter IP65
SolarMax 12K On Off Grid 3 Phase Hybrid Inverter IP65
SolarMax 12K On Off Grid 3 Phase Hybrid Inverter IP65
SolarMax 12K On Off Grid 3 Phase Hybrid Inverter IP65
SolarMax 12K On Off Grid 3 Phase Hybrid Inverter IP65
Specifications
Brand Name :
JFY TECH
Model Number :
Solar Max 12k
Certification :
CE
Place of Origin :
CHINA
MOQ :
20
Price :
USD
Payment Terms :
T/T
Supply Ability :
600
Delivery Time :
5-8 work days
Packaging Details :
carton box
PV Input :
200~800Vdc
AC Output :
380Vac, 3L/N
Rated Output Power :
12KW
Battery Type :
Li-ion
Battery Voltage Range :
180~600V
Communication with BMS :
RS485
Description

Three-phase 12KW On/Off-grid Hybrid Solar inverter

SolarMax 6K/8K/10K/12K
Three-phase On/Off-grid Hybrid Solar inverter with IP65
Performance characteristics
 Capable to Operate without Battery

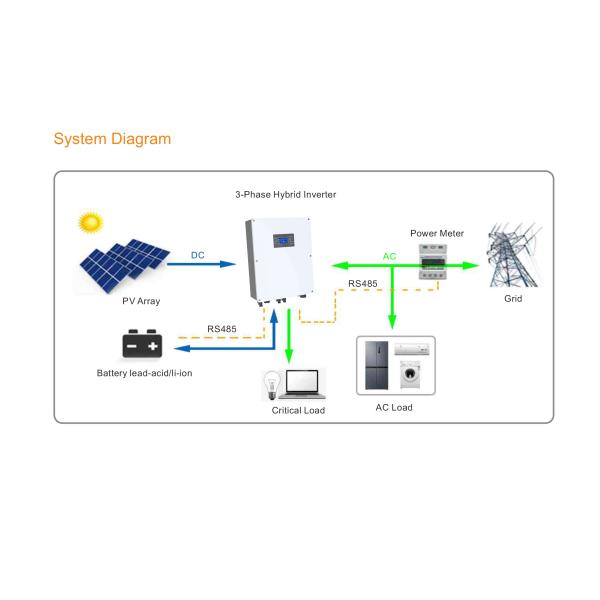

 Programmable multiple operation modes: Grid-tied, off-
grid and grid-tied with zero-export
 Programmable supply priority for PV, Grid or Battery
 Capable to save money by sensing load consumption
using the external power meter sensorand balance it continuously
 Power saving: power saving mode automatically reduces power consumption at zero-load
 Multiple Safety protection Fuctions: PV Insulation Resistance Detection,
Residual Current Monitoring,Anti-islanding Protection, etc.
MODEL SolarMax 6K SolarMax 8K SolarMax 10K SolarMax 12K
PV Array
Max.PV Array Power 7000W 10000W 12000W 15000W
Max.PV Array Open-Circuit Voltage 900V 1000V
Start-up Voltage 180V
MPPT Operating Voltage Range 200-800V
Nominal Input Voltage 620V
Max. Input Current MPPT 20A
Max. Short Circuit Current MPPT 22A
Number of MPPT 1 2 2 2
Number of inputs 1 2 2 2
Battery
Battery Type lead-acid /Li-ion
Nominal Battery Voltage(V) 280V 330V
Battery Voltage Range(V) 180-600V
Max. Charging Current 30A
Max. Discharge Current(A) 30A
On-grid Operation
Rated Outout power 6000W 80000W 10000W 12000W
Max. AC Current Output to Utility Grid 9.7A 13.6A 16.5A 18.3A
Nominal Output Voltage 400/380Vac,3L/N/PE
Nominal AC Grid Frequency 50/60Hz
Power Factor ~1(Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion < 3%
Off-grid Operation
Nominal Apparent Power 6000VA 8000VA 10000VA 120000VA
Max. Output Apparent Power 6600VA 8800VA 11000VA 13200VA
Nominal Output Voltage 400/380Vac,3L/N
Max. AC Current Output to Utility Grid 9.1A 12.1A 15.2A 18.2A
Nominal Output Fregency 50/60Hz
Transfer Time < 10ms
Efficiency
Max. PV to AC Efficiency 97.60% 97.60% 97.60% 97.60%
Max. Battery to AC Efficiency 95.50% 95.50% 95.50% 95.50%
Protection
PV Insulation Resistance Detection Yes
Residual Current Monitoring Yes
Anti-islanding Protection Yes
Zero-export Control Yes
General Data
Operating Temperature Range -30℃~+60℃
Relative Humidity 0∽95%
Max. Operating Altitude <4000m
Cooling Method Intelligent Fan cooling
Display LED + LCD
Communication with BMS RS485
Communication with Cloud WiFi/4G
Degree of Protection IP65
Weight(kg) 21
Dimension(W*H*Dmm) 450*355*183mm
Mounting Method Wall Mounted
