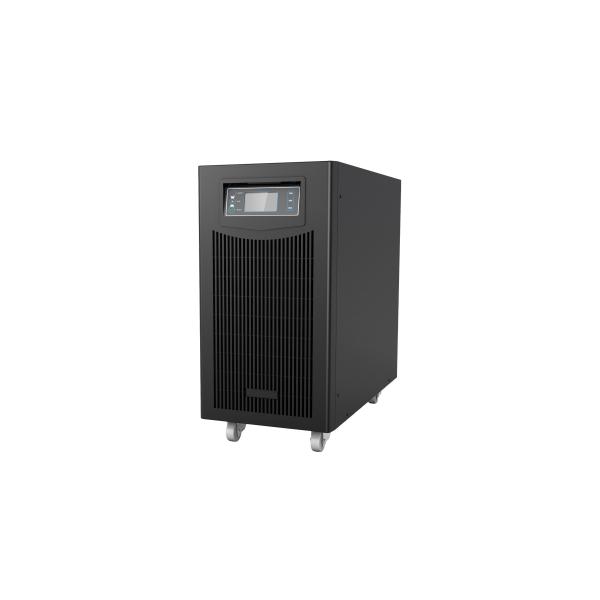

XPI 7K Solar Off Grid Hybrid Inverter 7KW Single Phase
XPI 7K Solar Off Grid Hybrid Inverter 7KW Single Phase
XPI 7K Solar Off Grid Hybrid Inverter 7KW Single Phase
XPI 7K Solar Off Grid Hybrid Inverter 7KW Single Phase
XPI 7K Solar Off Grid Hybrid Inverter 7KW Single Phase
XPI 7K Solar Off Grid Hybrid Inverter 7KW Single Phase
Specifications
Brand Name :
JFY TECH
Model Number :
XPI 7K
Certification :
CE
Place of Origin :
CHINA
MOQ :
10
Price :
USD
Payment Terms :
T/T, L/C
Supply Ability :
600
Delivery Time :
5-8 work days
Packaging Details :
carton box
PV Input :
140~280Vdc
AC Output :
230Vac
Rated Output Power :
7000W
Battery Type :
lead-acid ,Li-ion
Battery Voltage Range :
41~58V
Communication with BMS :
RS485
Description

XPI 7K Hybrid Solar Inverter with 7KW Transformer Isolation

XPI 3K/5K/7K/10K
Hybrid Solar inverter with power transformer isolation
Performance characteristics
Load friendly: Stable sine wave AC output via SPWM modulation
 Wider PV input voltage range: 130V~300Vdc

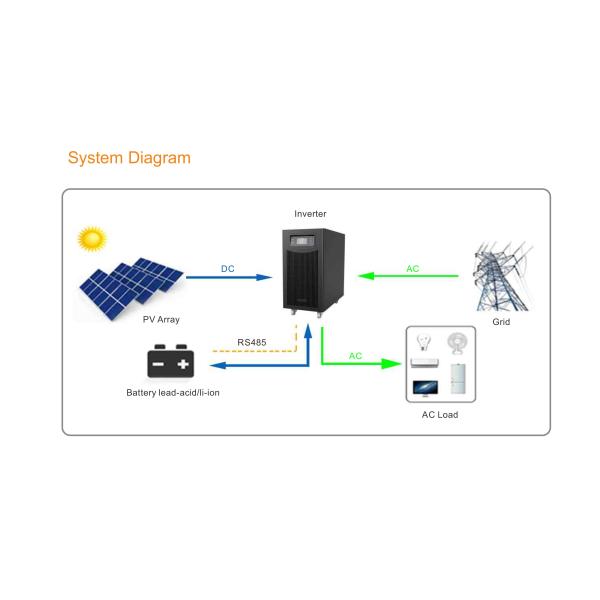

Uninterrupted power supply: simultaneous connection to utility grid/generator and PV
 User-adjustable charging/discharging current or acquire from BMS by RS-485,
suits for different types of lead-acid or lithium batteries
Instant viewing of operation: the LCD panel displays data
 Capable to Remote monitor inverter With wifi or 4G
MODEL XPI 3K-WL XPI 3K XPI 5K XPI 7K XPI 10K
PV Array
Max.PV Array Power 3300W 5500W 8000W
Max.PV Array Open-Circuit Voltage 250VDC 300VDC
Start-up Voltage 70VDC 130VDC
MPPT Operating Voltage Range 80-230VDC 140-280VDC
Nominal Input Voltage 150VDC 200VDC
Max. Input Current MPPT 18A 30A 36A
Max. Short Circuit Current MPPT 20A 33A 40A
Number of MPPT 1 1 1
Battery
Battery Type lead-acid /Li-ion
Nominal Battery Voltage 48V 96V
Battery Voltage Range 41-58V 80-116V
Max. AC Charging Current 20A 20A
Max. PV Charging Current 60A 50A 75A
Max. Continuous Charging Current 60A 50A 80A
Max. Charge Power 3000W 5000W 8000W
Max. Discharge Power 3000W 5000W 7000W 9000W
AC Input
Nominal Voltage 230VAC
Voltage Range 170-275VAC
Frequency 50/60Hz(Auto sensing)
Max. Input Current 22A 36A 50A 65A
AC Output
Nominal Voltage 220/230VAC±5%
Output Voltage Waveform Pure Sine Wave
Rated Output Power 3000VA/3000W 5000VA/5000W 7000VA/7000W 10000VA/10000W
Peak Output Power 5100VA 7000VA 8000VA 10000VA
Nominal Output Fregency 50/60Hz
Transfer Time < 10ms
Max. Battery to AC Efficiency 90.0%
Protection
AC Overcurrent/Overvoltage Protection Yes
Surge Protection Ⅱ
General Data
Operating Temperature Range -10 -- +50℃
Relative Humidity 0∽95%
Max. Operating Altitude < 4000m
Cooling Method Intelligent Fan cooling
Display LED + LCD
Communication with BMS RS485
Communication with Cloud WiFi/4G
Degree of Protection IP20
Weight(kg) 18 22 40 54 60
Dimension(W*H*Dmm) 465*310*135 500*195*345 500*240*490 500*240*490 5800*260*620
Mounting Method Wall Mounted TOWER
