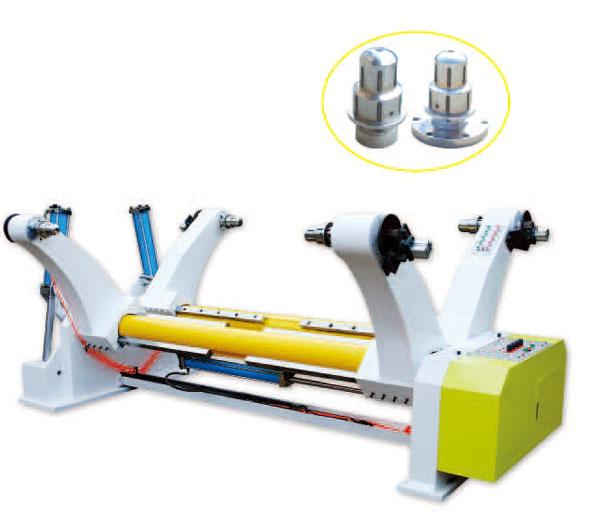

Hydraulic Mill Roll Stand
Hydraulic Mill Roll Stand
Specifications
Brand Name :
Jeytop
Model Number :
1400-2800
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
1400-2800
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1000 sets per year
Delivery Time :
within 30 days after payment
Description
Function and Features:
1. Hydraulic mill roll stand can hold more weight roll paper than electric type; it is suit high speed corrugation line.
2. It is used to hold the roll paper (liner board and medium board), and adjust tension of paper keep paper go in next unit smoothly.
3. Four arms are symmetrical in two side, it can hold 2 rolls of paper one time
4. Roll paper lift-lower, clamp, loosen, movement, contraposition operated by Hydraulic
5. It used pneumatic brake to adjust tension of paper.


Mainly technology parameter
Width
1400,1600,1800,2000,2200,2500mm
Max roll diameter
1500mm
Min roll diameter
600mm
Single arm carriage
3tons
Motor power
4.0kw
