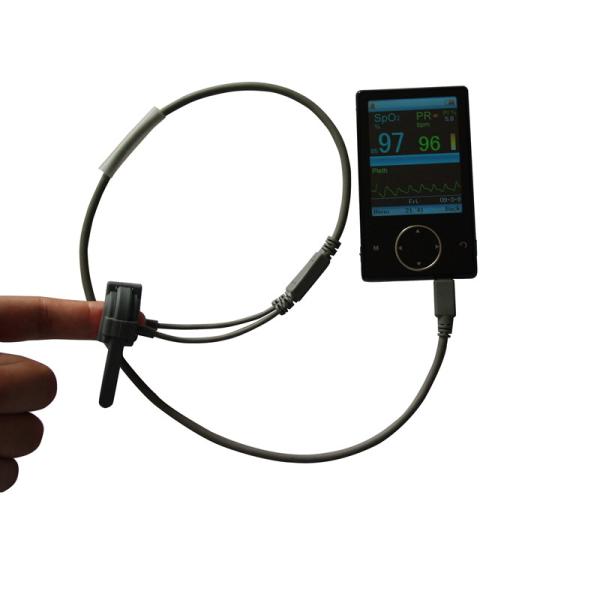

Pulse oximeter

Model:AH-60F

Major Features

*Small in volume,light in weight and convenient in carrying
*Operation of the product is simple ,low power consumption
*Operation menu for the function setting
*SpO2 value display
*Pulse rate value display, bar graph display
*Pulse waveform display
*PI Display
*Screen brightness can be changed
*A pulse rate sound indication
*With measured data overruns limits and low-voltage alarm function, the upper/down alarm range is adjustable
*Battery capacity indication
*Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage ,and with alarm function
*Real-time data can be transmitted to computers
*With clock function
*Review function
*With data record function of multiuser, continuous record about 24 hours data for each user, and the record data can be uploaded to computer
*Touch key operation and locking touch key function
*It can be connected with adult,child,infant oximeter probe
*Wireless communication function

Main performance

*Display Mode: 2.8" TFT Color display
*Screen Resolution: 320*240
*SpO2 Measuring Range: 0%~100%, (the resolution is 1%).
*Accuracy: 70%~100%: ±2% ,Below 70% unspecified.
*PR Measuring Range: 30bpm~250bpm, (the resolution is 1bpm)
*Accuracy: ±2bpm or ±2% (select larger)
*Measurement Performance in Weak Filling Condition:
*SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
*Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
*Voltage: DC 3.6V~4.2V
*Power Supply: Voltage 3.7 rechargeable lithium battery × 1
*Battery working hour: 10 hours
*Battery working life: Charge and discharge no less than 500 times.
*Safety Type: Interior Battery, BF Type

Accessories

*Sell in standard:
*A user manual
*A power adapter (GTM41076-0605;CMS0105)
*A data line
*A disk (PC software)
*An oximeter probe

Sell in addition:
*Other oximeter probe(Refer to probe application instruction for details and notice renewal)

Physical Identity
*Dimension: 94.25(L) × 55.32(W) × 9.6(H) mm
*Weight: About 80g (with a lithium battery)

Under the order, please confirm what the use of probe:

1, animal probe

2, infants probe

3, adult probe
