Specifications
Brand Name :
Jetex
Model Number :
JDHWJ Series
Place Of Origin :
Panyu Guangzhou
Certification :
CRAA ,ISO
Place of Origin :
Panyu ,Guangzhou
MOQ :
1 set
Price :
depend on the detail design
Payment Terms :
T/T,Western Union
Supply Ability :
100 per month
Delivery Time :
35 workdays
Size :
Customizable
Power Supply :
380V/50Hz
Power Source :
Electric
Cooling Capacity :
27650-768150BTU
Model :
JDHWJ Series
Dehumidifying Function :
Yes
Humidity Range :
45-78%
Temperature Range :
18~29 °C
Description

Product Description:

The Constant Temperature and Humidity Air Conditioner is a highly efficient and reliable solution designed to maintain precise environmental conditions in various industrial, commercial, and laboratory settings. This advanced constant temperature and humidity unit is engineered to provide stable temperature and humidity control, ensuring optimal performance and protection for sensitive equipment, processes, and materials that require stringent climate regulation.


The unit supply air temperature range is 18~29°C±1°C ,humidity control range is 45~78% ±5%, and special air filters are configured according to different needs. .


Unit Features

  1. Equipped with a fully inclined multi-blade centrifugal fan, featuring low noise and high efficiency.
  2. Adopts an electrode humidifier to supply adequate, clean pure steam. Combined with a high-efficiency dehumidification system, the microprocessor can precisely control the temperature and humidity in the air-conditioned space based on accurate sensor data.
  3. Designed with multi-circuit and multi-compressor configuration. In case of a single compressor failure, other compressors can still operate normally without affecting customer usage.
  4. Controlled by a microcomputer and compatible with centralized management systems. The unit can be equipped with a remote management program to feedback system operation information and enable remote services.
  5. Pre-charged with refrigerant and lubricating oil at the factory. It can be put into operation simply by connecting the water inlet/outlet pipes and power supply.
  6. Multiple refrigerant options available. Environmentally friendly units can be customized to meet different customer needs.

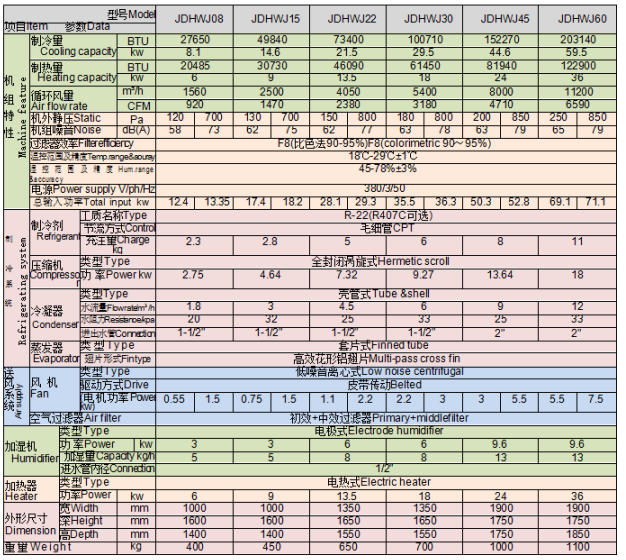

Technical Parameters:

Humidity Range 45-78%
Temperature Range 18~29 °C
Power Source Electric
Dehumidifying Function Yes
Type Split Type
Refrigerant R-22 (R407C optional)
Size Customizable
Power Supply 380V/50Hz
Heating Capacity 20000-368000 BTU
Cooling Capacity 27650-768150 BTU
Pharmaceutical Industry Constant Temperature And Humidity Air Handler AHU Split Type

Applications:

Pharmaceutical Industry ,Precision machinery, electronics, optical equipment, surface treatment, medical and health, bio-pharmaceuticals, food processing, fine chemicals, switch rooms, various measurement and testing laboratories and other industries.
