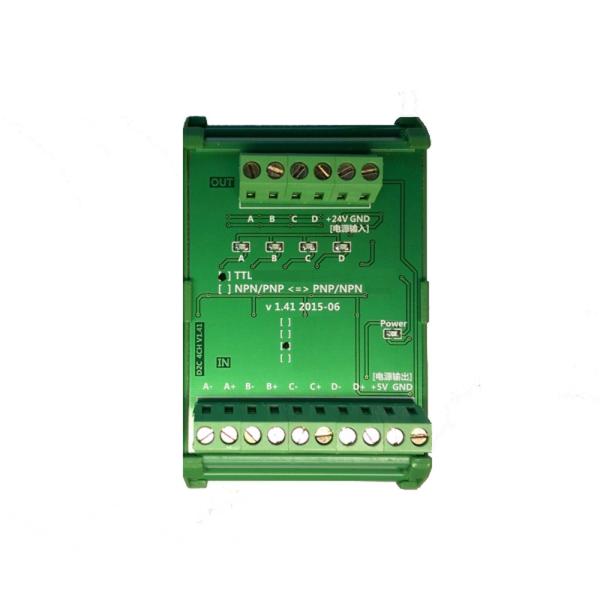

Converter DC24V 4 Ways Servo Encoder Differential 5V TTL to Collector 24V HTL Signals
Converter DC24V 4 Ways Servo Encoder Differential 5V TTL to Collector 24V HTL Signals
Converter DC24V 4 Ways Servo Encoder Differential 5V TTL to Collector 24V HTL Signals
Converter DC24V 4 Ways Servo Encoder Differential 5V TTL to Collector 24V HTL Signals
Converter DC24V 4 Ways Servo Encoder Differential 5V TTL to Collector 24V HTL Signals
Converter DC24V 4 Ways Servo Encoder Differential 5V TTL to Collector 24V HTL Signals
Converter DC24V 4 Ways Servo Encoder Differential 5V TTL to Collector 24V HTL Signals
Converter DC24V 4 Ways Servo Encoder Differential 5V TTL to Collector 24V HTL Signals
Specifications
Place of Origin :
Guang Dong
Brand Name :
Jetacon
Certification :
UL, CE
Model Number :
EC201-02-3.81
MOQ :
5 pieces
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T, L/C, Paypal, Payoneer
Supply Ability :
1KK poles monthly
Power Supply :
DC24V ( 9-30V)
Singal Input :
5V -24V TTL
Singal Ouput :
24 HTL
Description
Introduction:
1. Make Encoder differential signal (TTL EIA422 / 423, 5V -24V) to the open collector 24V HTL signal output, 4 Channels, electrical isolation between input and output.
2. Working frequency: 2000000Hz
3. The signal output mode: push-pull output

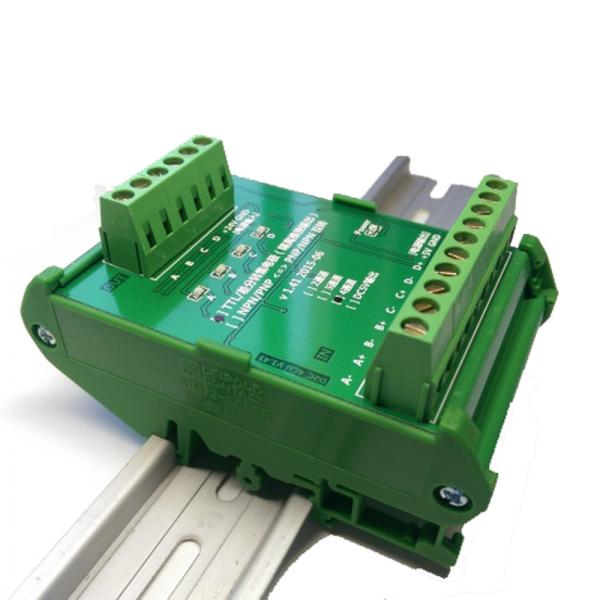

4. Installation: DIN35mm rail mounting,convenient and quick
5. Product Size: 105mm x 87mm x 35mm around
6. Rated Working Power Supply Input Voltage: DC24V ( 9 -30V )


Applications:
1. servo driver A B Z signal output to the collector , input to the PLC high-speed counter interface.
2. the differential encoder output signal to the collector output signal, input to the PLC high-speed counter interface.



Package Included:
1 * 4-Way Differential to collector
Note: If, Verison1.0 is not produced , we will send the upaded version.
Some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.
