Specifications
Brand Name :
Jetacon
Model Number :
12V-Actuator-6000N
Certification :
CE
Place of Origin :
China Mainland
MOQ :
5 Pieces
Price :
US $19.99
Payment Terms :
T/T, L/C, Paypal, Payoneer
Supply Ability :
200 /Pieces per Day
Delivery Time :
7-15 days
Packaging Details :
Standard Export Carton
Stroke :
50mm - 500mm
Voltage :
12 Volts
Gear Force :
6000N ( 600 Kg )
Description

This liner actuator is a relatively fast-extending actuator available.

Typical applications include driving electric gates, automatic window and other home automation assemblies.

The actuator may provide a pushing or pulling force of up to 6000N and a travel speed of up to 5mm / s when under no-load.
Features:
With reliable performance, sensitive action stable running.
Good environment adaptability.

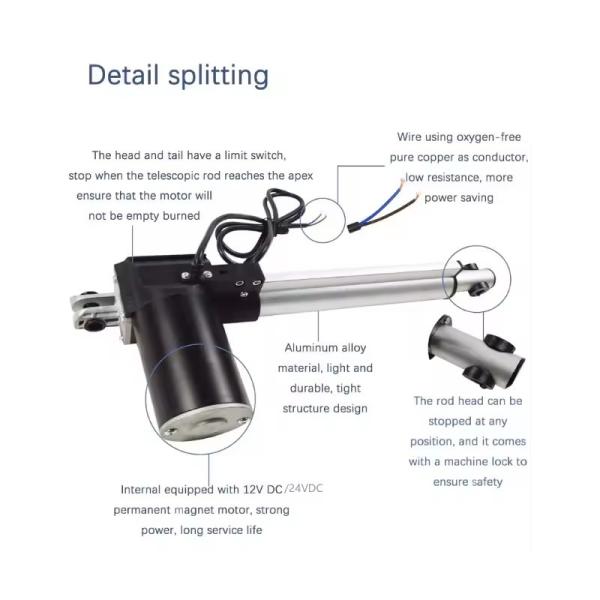

High quality metal material, high performance motor, built-in stroke switch.
Maximum push/pull is up to 6000N, and stroke speed is up to 5 mm / second when under no-load.
Commonly used in automotive, devices and engineering industry, agricultural machinery, wedding system, industrial electric lifting system, electric bed, surgical bed, traction bed, electric sofa, electric lifting lever, electric booth, electric sunroof, electric wheelchair, etc.

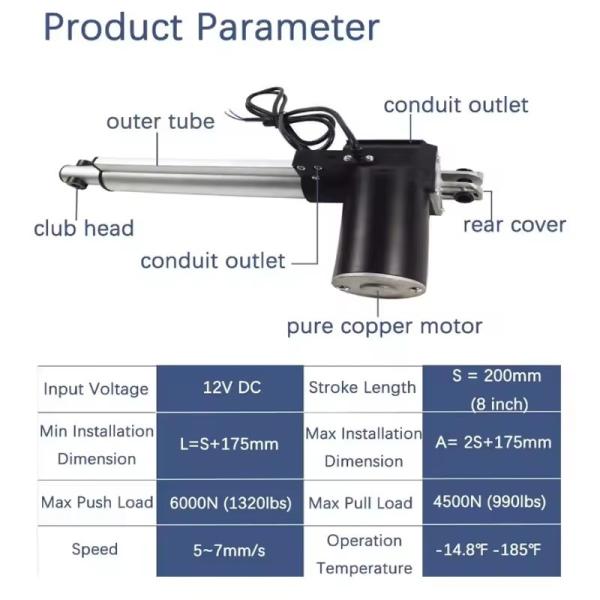

Specification:
Material: Metal
Voltage: DC 12 Volts
Maximum push / pull: About 6000N ( 600 kg )

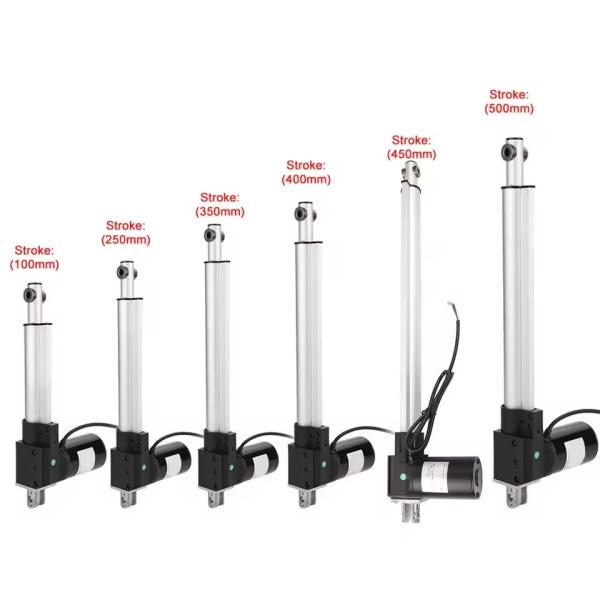

Optional stroke: 50mm, 100mm, 200mm, 250mm, 350mm, 400mm, 450mm, 500mm
No-load speed: Maximum 5mm/s
Rated load rate: 5mm/s (600kg)
Environment temperature: -26°C to +65°C
Standard protection level: IP54
Built-in stroke switch: Yes Color: Silver
Weight: Approx. 2053g~3280g / 72.4oz~115.7oz
Quantity: 1pc
Package List: 1 x Linear Actuator
