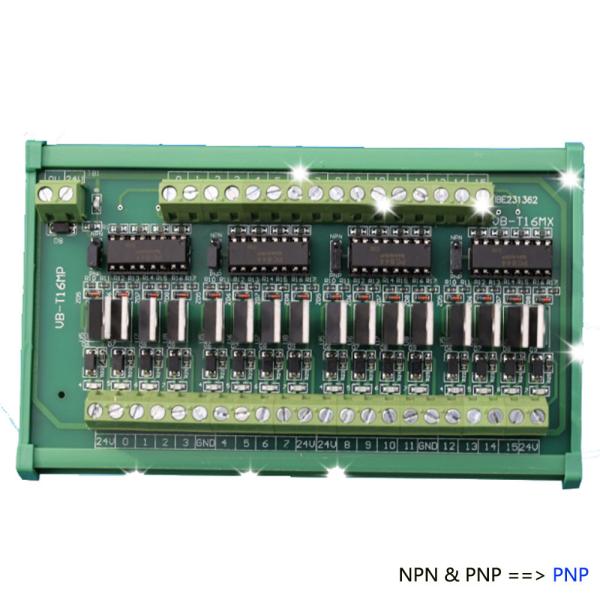

16 Ways PLC Power Output Amplifier Module Relay Board DC 24V ZC16MP
16 Ways PLC Power Output Amplifier Module Relay Board DC 24V ZC16MP
16 Ways PLC Power Output Amplifier Module Relay Board DC 24V ZC16MP
16 Ways PLC Power Output Amplifier Module Relay Board DC 24V ZC16MP
16 Ways PLC Power Output Amplifier Module Relay Board DC 24V ZC16MP
16 Ways PLC Power Output Amplifier Module Relay Board DC 24V ZC16MP
16 Ways PLC Power Output Amplifier Module Relay Board DC 24V ZC16MP
16 Ways PLC Power Output Amplifier Module Relay Board DC 24V ZC16MP
16 Ways PLC Power Output Amplifier Module Relay Board DC 24V ZC16MP
16 Ways PLC Power Output Amplifier Module Relay Board DC 24V ZC16MP
Specifications
Place of Origin :
Guang Dong
Brand Name :
Jetacon
Certification :
UL, CE
Model Number :
ZC-16MP
MOQ :
2 pieces
Price :
US $69.99 / Piece
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T, L/C, Paypal, Payoneer
Supply Ability :
1KK poles monthly
Color :
Green
Power supply :
DC 24V
Good for :
Mistubishi or Simens
Output :
PNP signal
Description

Description:

- This product isolates or amplify the faint controlling signals(only need several mA current) through photoelectricity, then output large power controlling signal, to drive motor contactor magnetic valve etc.,

Parameters:
- It is suitable for most of Branded PLC (Mitsubishi, Fanuc, Siemens, Delta ....)
- Every channel rated current: 3A (continuous time)/16A(instant current), unlimited using times
- Voltage range(loaded power): DC24V
- Input mode: Both NPN and PNP ( for example, Mitsubishi FX3U is NPN output, Simens S7-200 is PNP output)
- Output form: PNP, low level output with LED indicator
- Amplyfing Mode: Transistor
- Switch frequency≤1000HZ
- Breakover resistance<0.025Ω
- OptoCoupler isolate

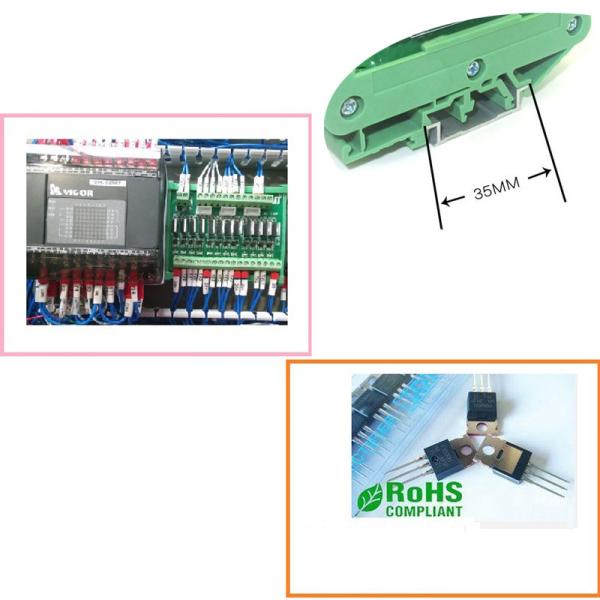

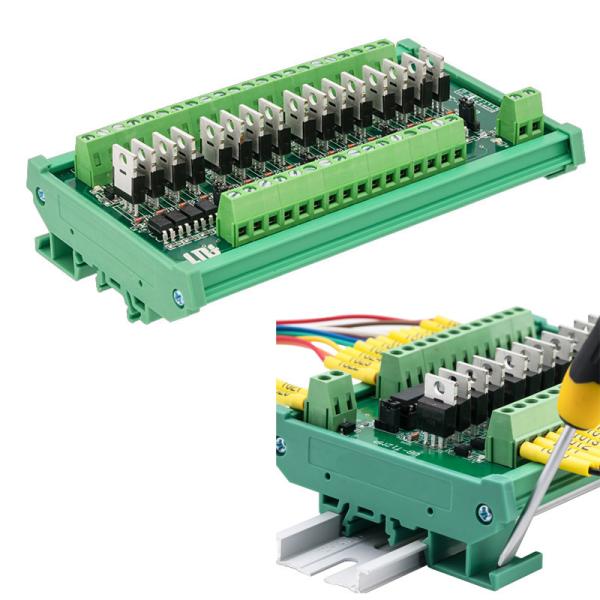

- Mouting Type: Standard Din Rail
- Net weight: 700g
- Unit Size: 139mm x 87mm x 44mm

Package Included:
1 * PLC Power Amplifier Board
Note: some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.
16 Ways PLC Power Output Amplifier Module Relay Board DC 24V ZC16MP
16 Ways PLC Power Output Amplifier Module Relay Board DC 24V ZC16MP
16 Ways PLC Power Output Amplifier Module Relay Board DC 24V ZC16MP
16 Ways PLC Power Output Amplifier Module Relay Board DC 24V ZC16MP
