Specifications
Brand Name :
Jetacon
Model Number :
FVG HVG 0W 2W 3W
Certification :
CE
Place of Origin :
China Mainland
MOQ :
5 pieces
Price :
US $20.99
Payment Terms :
T/T, L/C, Paypal, Payoneer
Supply Ability :
100pcs / per day
Delivery Time :
7-15 days
Packaging Details :
Standard Export Carton
AWG :
8-22
Pressure :
30 Bars
Depth :
300 meteres above
Material :
Brass with Nickel plated
Insulator :
Insulator: PEEK and PPS plastic
Pin Number :
2 pin to 32 pin
Description

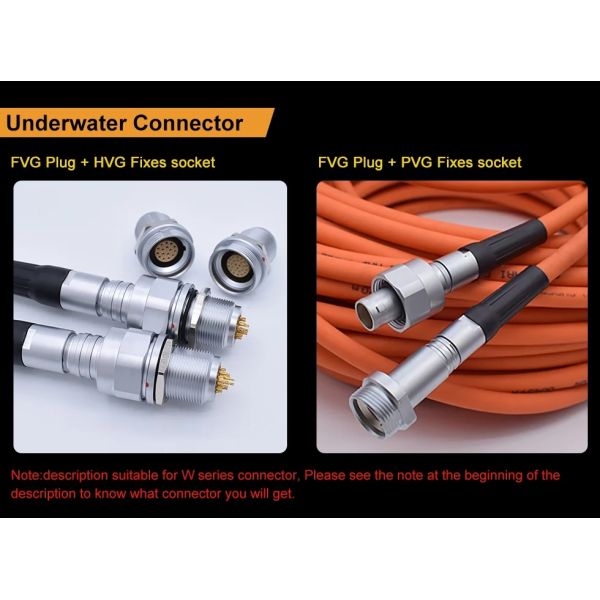

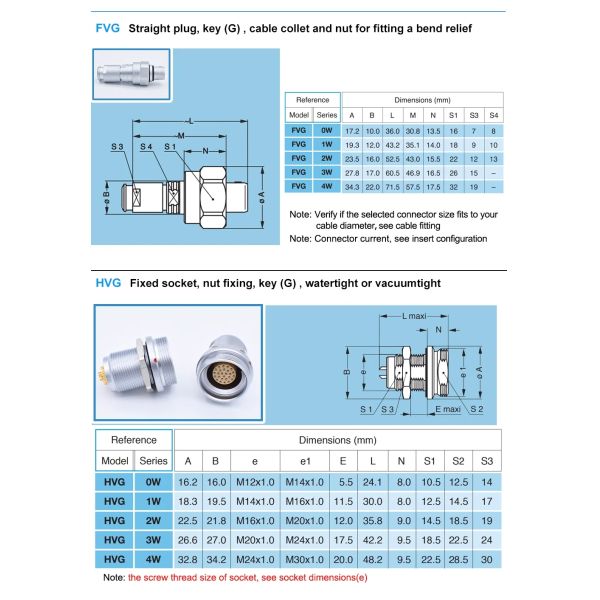

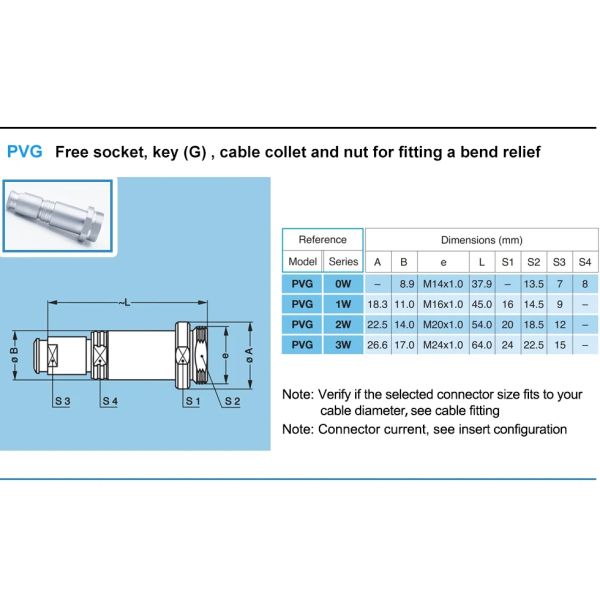

Model: FVG HVG PVG

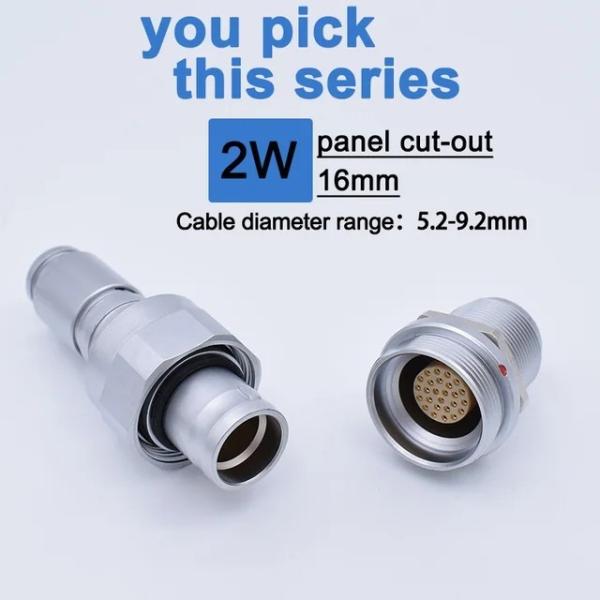

Size:0W 1W 2W 3W
Pin: 2,3,4,5,6,7,8,10,12,14,16 to 32
Gender: Male / Female
Type: Plug / Socket
Keying: 0(G)

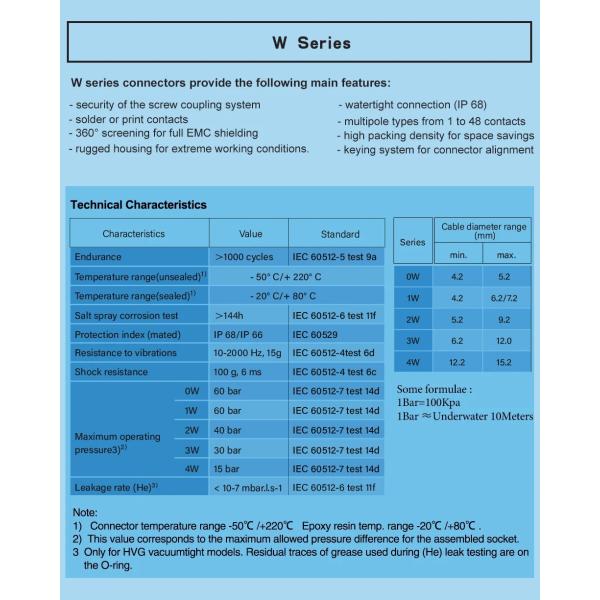

Humidity: 95% at 60 degrees

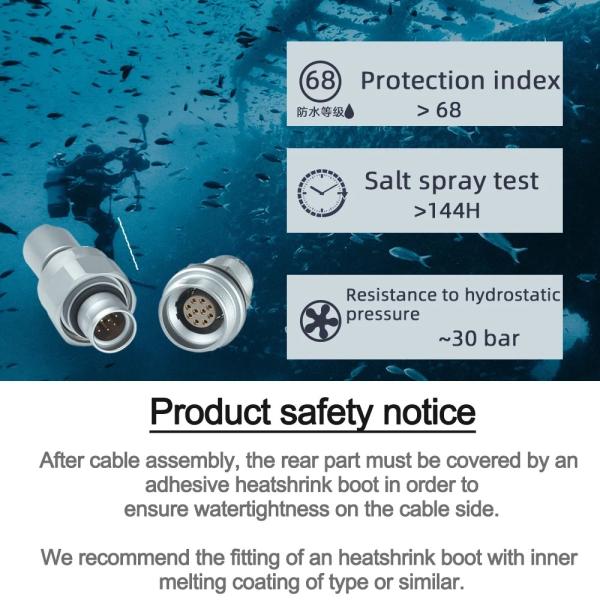

Protection index: IP68 (while insertion)
Working temperature range: -45℃, +150℃
Endurance: ＞5000 cycles
Resistance to vibration: 10-2000Hz, 15g
Corrosion resistance: Salt spray test>144h
Shielding: >10Mhz is 75dB, >1Ghz is 40dB
Body material: Brass with Nickel plated

Contact Pin Material: Gold plated phosphor copper
Insulator material: PEEK and PPS

Note:

If the deep water depth is above 200 meters, please let us to assembly the cables for you to make sure of reliability.

If the deep water depth is above 600 meters, please contact us to choose correct steeless steel connector material and its profile.
