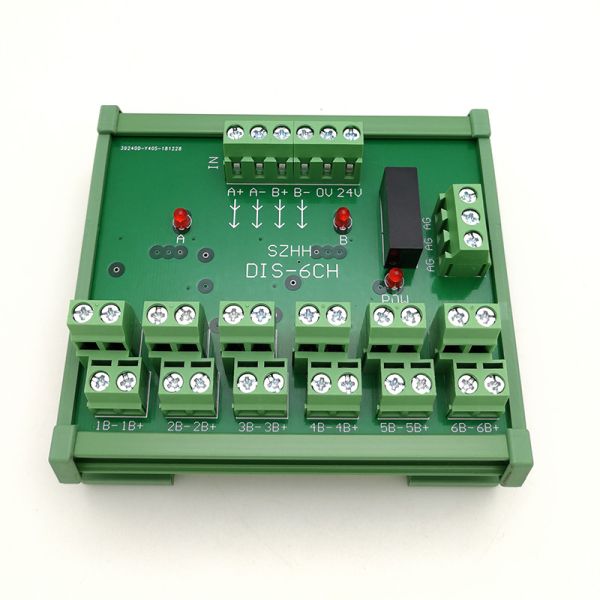

Stepping Timing Motor Pusle Singals Splitter Distributor 1 In 6 Out To Control Servo Drivers
Stepping Timing Motor Pusle Singals Splitter Distributor 1 In 6 Out To Control Servo Drivers
Stepping Timing Motor Pusle Singals Splitter Distributor 1 In 6 Out To Control Servo Drivers
Stepping Timing Motor Pusle Singals Splitter Distributor 1 In 6 Out To Control Servo Drivers
Stepping Timing Motor Pusle Singals Splitter Distributor 1 In 6 Out To Control Servo Drivers
Stepping Timing Motor Pusle Singals Splitter Distributor 1 In 6 Out To Control Servo Drivers
Stepping Timing Motor Pusle Singals Splitter Distributor 1 In 6 Out To Control Servo Drivers
Stepping Timing Motor Pusle Singals Splitter Distributor 1 In 6 Out To Control Servo Drivers
Specifications
Brand Name :
Jetacon
Model Number :
DIS-6CH
Certification :
UL, CE
Place of Origin :
Guang Dong
MOQ :
5 pieces
Price :
US $49 / Piece
Payment Terms :
T/T, L/C, Paypal, Payoneer
Supply Ability :
1KK poles monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Power supply :
24V DC
Channels :
6
Description

Introduction:

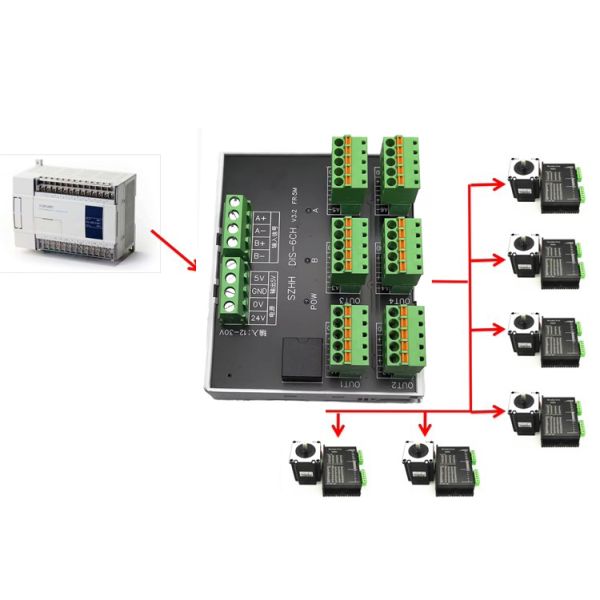

The Signal Splitter will accept 7-26 VDC signals and provide 6 independent groups of singals to control the stepper motors.
and completely isolated line driver outputs of 5-26 VDC based on user defined voltage levels.

Input Signal Current: 2.2 mA minimum, 3.5 mA typical
Frequency Range: 0 - 200 kHz
Signal out: four independent, isolated line driver output sets
Power Supply Voltage: 9-26 VDC
Output Current: 150 mA (maximum per channel)
Wire Gauge Accepted: 26 -16 AWG
Output Protection: short circuit protected
Mounting Options: DIN 35
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Operational Humidity: 98% non-condensing

Product size:62mm Width x 87mm Length x 46mm Height

Applications:

Package Included:
1 * 6-Way Pulse Distributor
Note: some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.
