Specifications
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Engine, Bearing, Gearbox, Gear
plastic processed :
PP, HDPE , ABS, PVC, PE, EVA, PE/PP, HDPE/PP
place of origin :
China
brand name :
Dawson
voltage :
440V/415V/380V/220V
dimension(l*w*h) :
4497x4139x2655
Clamping Force (kN) :
110
plc brand :
Siemens
Screw L/D Ratio :
24
screw diameter (mm) :
85
output (kg/h) :
130
automation :
Automatic
No. of Screw Heating Zone :
5
screw heating power(kw) :
12.5
extruder motor power(kw) :
30
mold platen size(width)(mm) :
400
mold platen size(height)(mm) :
490
air pressure(mpa) :
0.8
air comsumption(m³/min) :
15
die head heating power(kw) :
5.5
power (kw) :
72.2
weight (t) :
11
key selling points :
Easy To Operate
warranty :
1 Year
Cycle time :
21.6 s
Production :
16000pcs per day
Layer design :
Double layer design

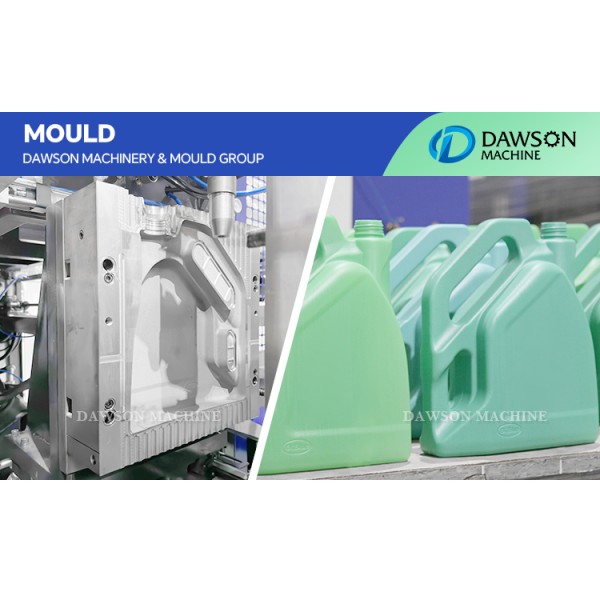

Mold Material :
P20, 2316, S136H, Aluminum with beryllium copper.
Mould Lifespan :
> 1,000,000 Cycles
Language settings :
Chinese and English operation panel
Instructions provided :
Instructions in Chinese and English
Labor demand :
1~2 operetor
After-sales Service Provided :
Field installation, commissioning and training
Color :
Customer Customized
Price :
$48,800/sets 1-2 sets
Description
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds

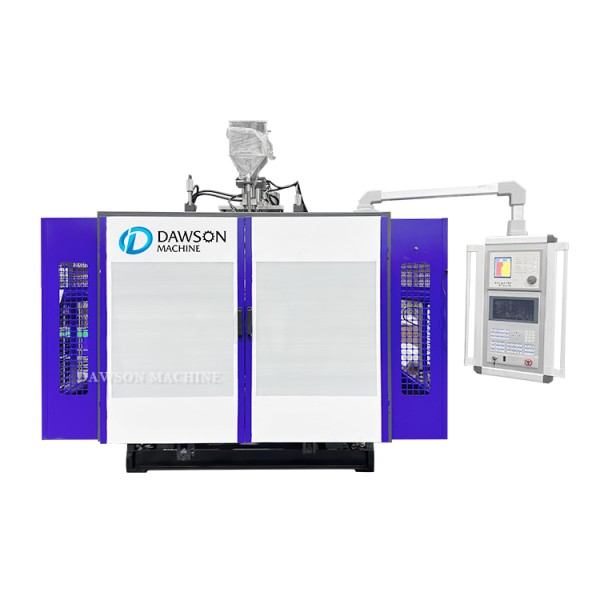

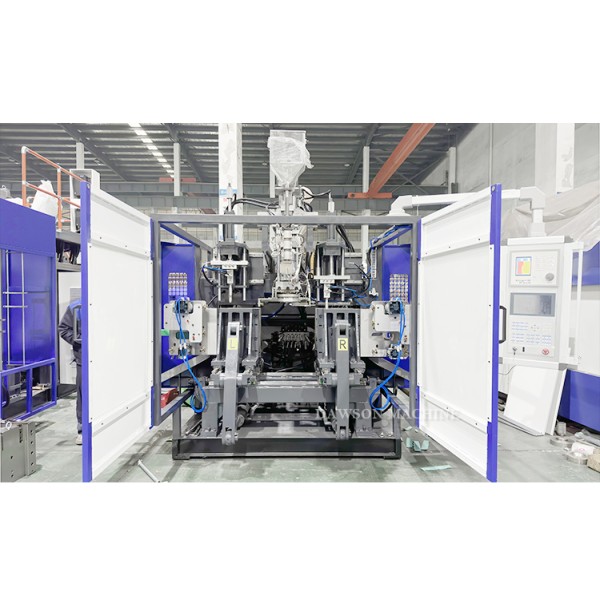

High Speed Extrusion Blow Molding Machine

suitable for making plastic bottle, blowing jars, blow molding small containers, jerrycans from 0L to 5L, The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation.
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Machine Model
Max. Bottle Size
Production Forecast
DSBSERIES
Double Station Single Head
5L
200-250BPH
Double Station Two Head
2L
450-550BPH
Basicparameters
Suitablematerial
PE.PP,PVC,PS,PETG,soon
Maxvolume
5L(Singlehead)
Outputcapacity
200~250pcs/h
Size
3.8×2.3×2.5(M)
Weight
6.5T
system
Specification
Parameters
Note

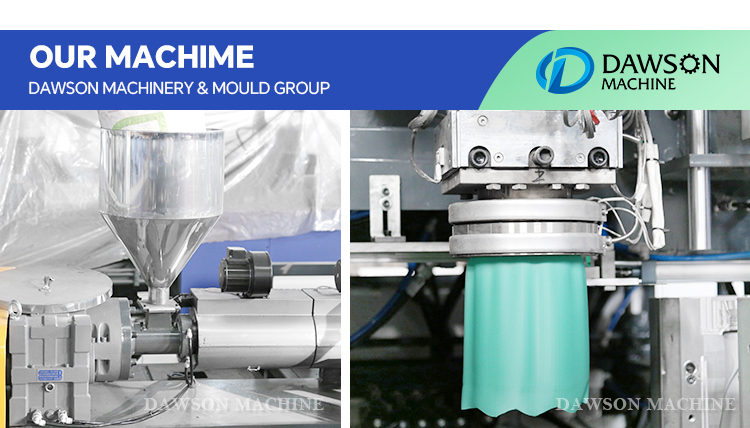

Plasticizion system
Summarize
Highefficientlowpowerconsumptionplasticizion system,transducercontrol,self-protectfunctionwhenstartedat low temperature
Reducer
MaterialofGearboxbody:HT200 Materialofgear:ZG35CrMo Materialofbearing:42CrMo HeattreatmentofGear:Quenching
Brand:GUOMAO (ThebestGearbox supplierinChina)
Screw
∮70mm,L/Dratio25/1, Material:38CrMoALA Nitriding heat-treatment Cooling by coolingFan
Coolingsystem available
Plasticization
70~90Kg/H
HDPE
HeatingZone
3-4AluminumHeater
Automaticheating
Heatingpower
13.5KW/H
ExtrusionMotor
Threephaseasynchronousmotor (380V,50HZ)22KW
Brand:W&N
CoolingFan
3-4zone
Automaticcooling
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds

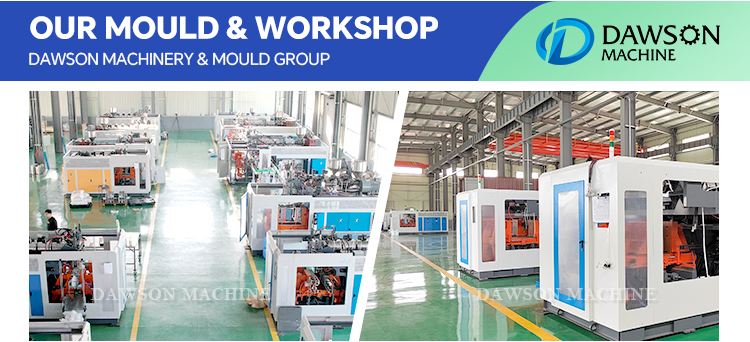

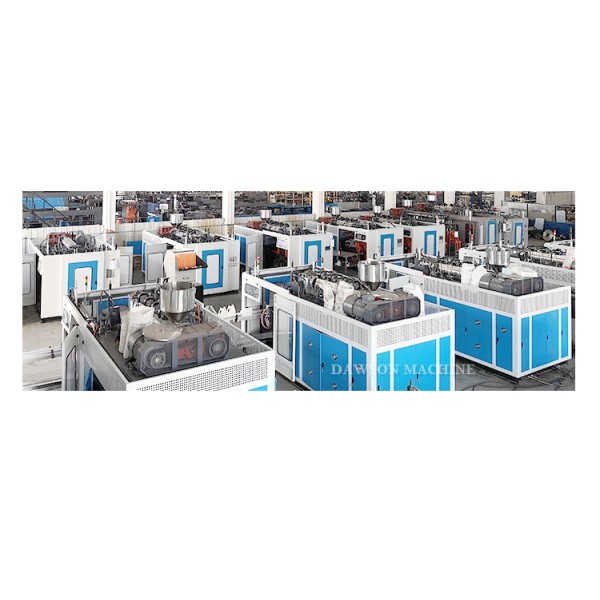

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle
will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds

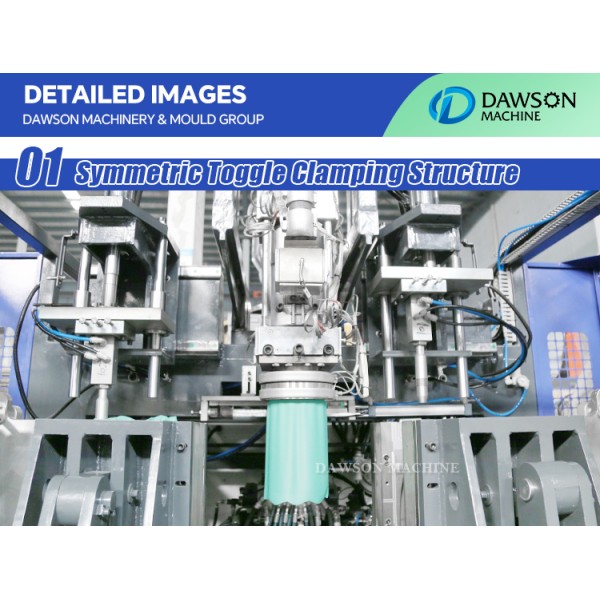

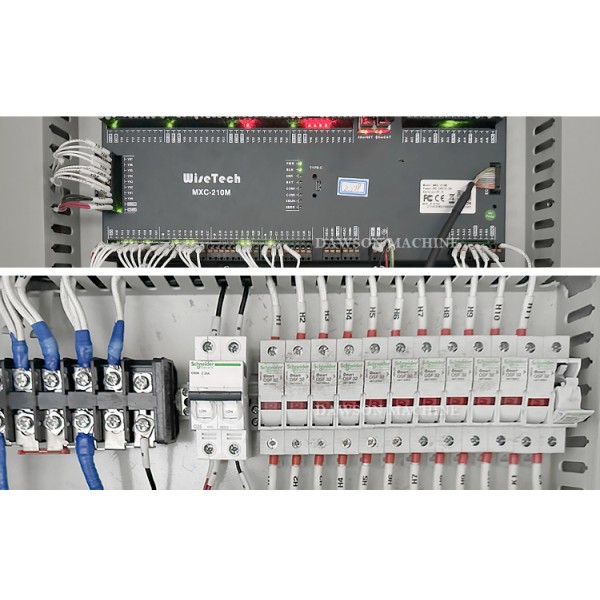

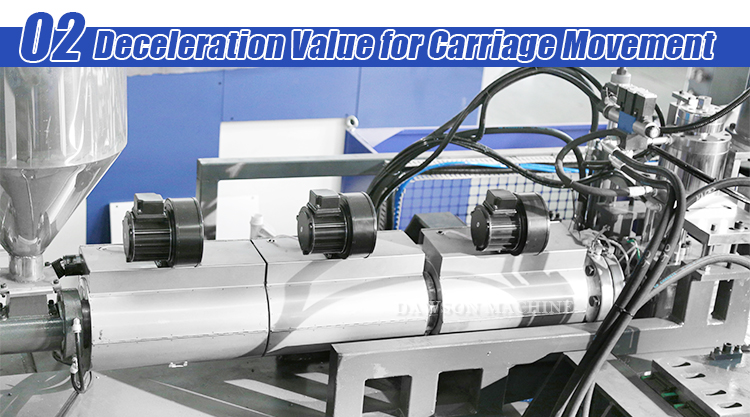

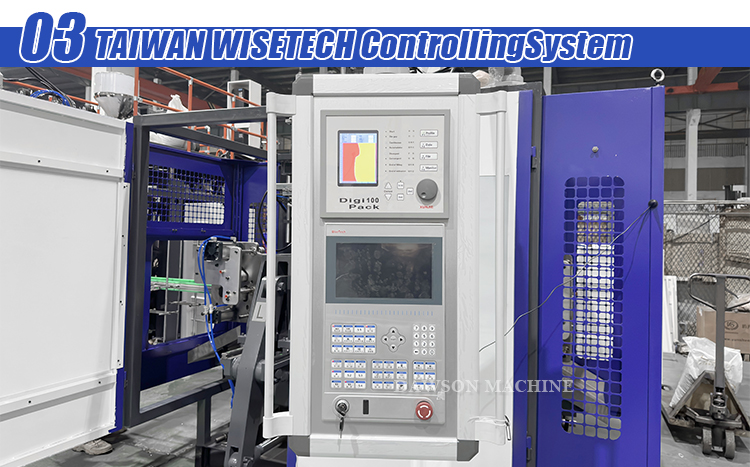

1.Symmetric Toggle Clamping Structure2.Deceleration Value for Carriage Movement3.TAIWAN WISETECH ControllingSystem0-5L HDPE Blow Molding Machine Professional Extrustion Blow Molding Machine Milk bottle / chemical bottle PETG bottle / Lubricant bottle
