Specifications
Packaging Details :
Injection molding machine are packed with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The pho
Supply Ability :
20 Set/Sets per Month
Price :
$59,800/sets 1-2 sets
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Engine, Gearbox, Motor, Pump
plastic processed :
PP, HDPE , PC, ABS, PE, ABS/PP, PE/PP
place of origin :
Jiangsu, China
brand name :
Dawson
voltage :
Customized to customer needs
dimension(l*w*h) :
4.8*3.4*3.6m
Clamping Force (kN) :
270
plc brand :
WiseTech
Screw L/D Ratio :
24
screw diameter (mm) :
80 mm
output (kg/h) :
130 kg/h
automation :
Automatic
No. of Screw Heating Zone :
3
screw heating power(kw) :
9 kW
extruder motor power(kw) :
30 kW
mold platen size(width)(mm) :
660 mm
mold platen size(height)(mm) :
680 mm
air pressure(mpa) :
0.8 MPa
air comsumption(m³/min) :
2.2 m³/min
die head heating power(kw) :
6 kW
power (kw) :
38
weight (t) :
11.3
key selling points :
Long Service Life
warranty :
1 Year
model number :
DSB80-30L
View Strip System :
available
Motor Type :
Hydraulic servo motor
Driven Type :
Hydraulic oil
Layer :
1~4 layers
Suitable Material :
HDPE, LDPE, PP
Product Usage :
Lubricant oil, Palm oil, Chemicals, Detergent ...
Bottle Weight :
100g ~ 1500g
Clamping Type :
Toggle Type Clamping System
PLC :
WiseTech
Parison Control :
MOOG 100 Point
Condition :
New
Warranty of core components :
1 Year
Application :
Bottle
Applicable Industries :
Energy & Mining, Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops, Construction works
Showroom Location :
Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
Year :
2023
Hollow part volume :
10~30L
Accumulator Capacity(L) :
0 L
Description
Hydraulic servo motor extrusion blow molding machine producing 20 liters HDPE plastic jerrycan oil bottle single station


Products Description

DAWSON MACHINERY & MOULD GROUP
Extrusion Blow Molding Machine DSB80-30L

20L Jerry cam blow moulding machine suitable for making plastic bottle, jars, containers, jerrycans up to 30L,
The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.

Hydraulic servo motor extrusion blow molding machine producing 20 liters HDPE plastic jerrycan oil bottle single station
Hydraulic servo motor extrusion blow molding machine producing 20 liters HDPE plastic jerrycan oil bottle single station
Machine Model
Max. Bottle size
Production forecast
DSB80-30L
Single Station Single Head
30L
45~60 BPH
Technical Parameters
Name
Units
DSB80-30L
Max.product volume
L
30L
Screw diameter
MM
90
Screw drive power
KW
10
Output of HDPE
KG/H
130
Oil pump drive power
KW
11
Clamping force
KN
270
Max.size of mold
MM
680× 660
Template size
MM
290×320
Mold stroke
MM
450-950
Size of machine
L×W×H
4.4×3.4×3.6
Weight of machine
TON
11.3

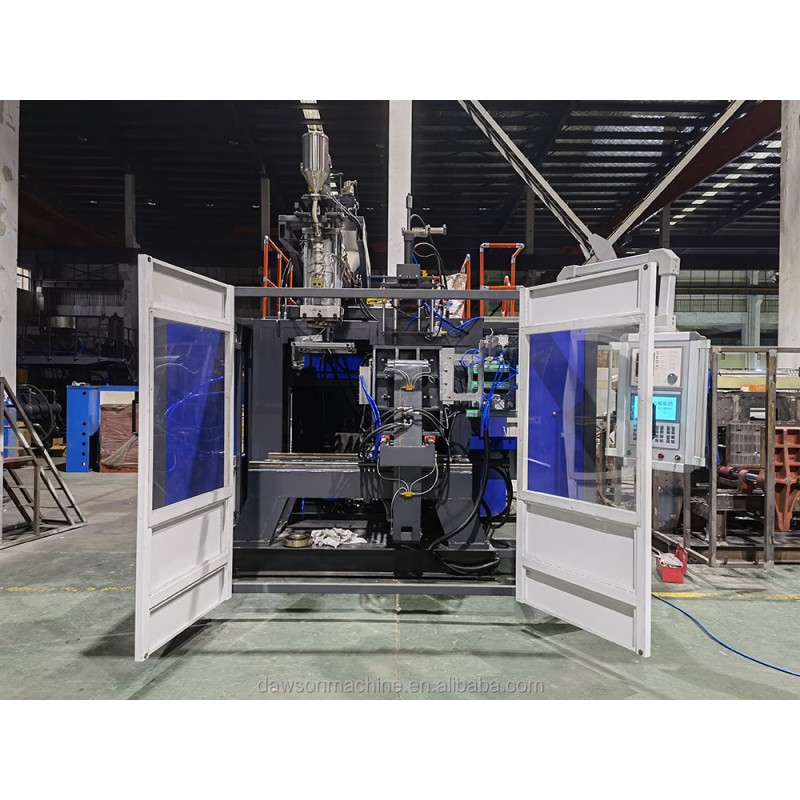

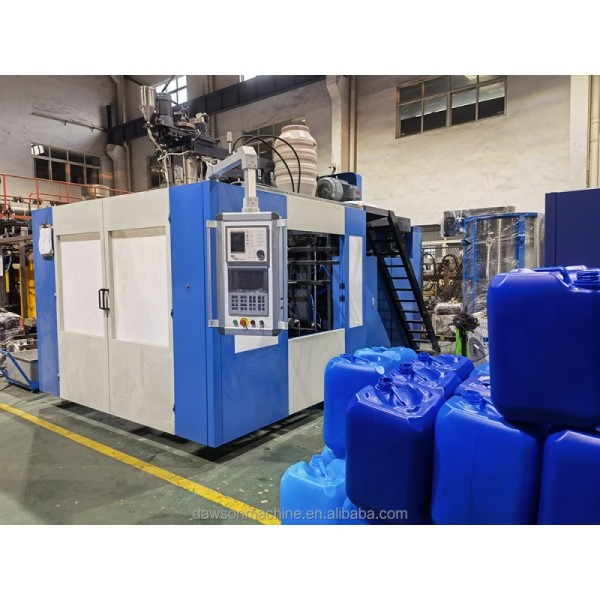

Photos Reference
Hydraulic servo motor extrusion blow molding machine producing 20 liters HDPE plastic jerrycan oil bottle single station
Hydraulic servo motor extrusion blow molding machine producing 20 liters HDPE plastic jerrycan oil bottle single station
Hydraulic servo motor extrusion blow molding machine producing 20 liters HDPE plastic jerrycan oil bottle single station
Hydraulic servo motor extrusion blow molding machine producing 20 liters HDPE plastic jerrycan oil bottle single station
Hydraulic servo motor extrusion blow molding machine producing 20 liters HDPE plastic jerrycan oil bottle single station
Hydraulic servo motor extrusion blow molding machine producing 20 liters HDPE plastic jerrycan oil bottle single station
Hydraulic servo motor extrusion blow molding machine producing 20 liters HDPE plastic jerrycan oil bottle single station
FAQ
Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle
will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
