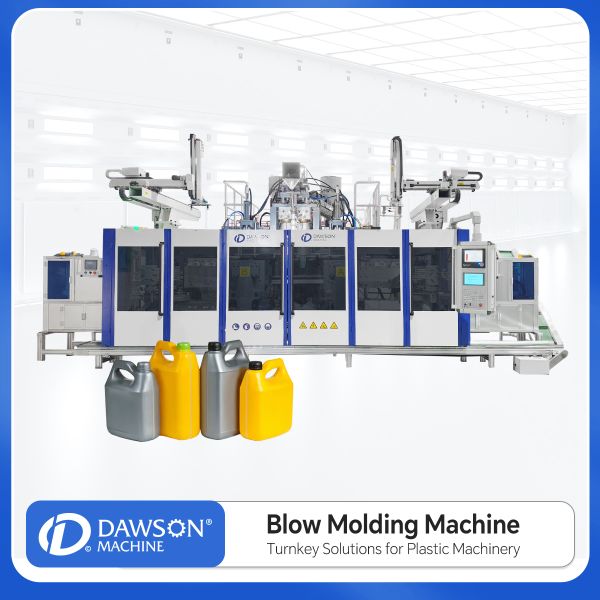

DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
DAWSON
MOQ :
1
Price :
R 954 935,92-1 022 184,93
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Engine, Bearing, Gearbox, Gear
plastic processed :
PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
voltage :
440V/415V/380V/220V
dimension(l*w*h) :
3.6*2.8*2.8m
Clamping Force (kN) :
250
plc brand :
Wisetech
screw diameter (mm) :
80
output (kg/h) :
120
automation :
Automatic
No. of Screw Heating Zone :
4
screw heating power(kw) :
21
extruder motor power(kw) :
37
mold platen size(width)(mm) :
550
mold platen size(height)(mm) :
680
air pressure(mpa) :
0.8
air comsumption(m³/min) :
2.2
die head heating power(kw) :
8
power (kw) :
90
weight (t) :
10
key selling points :
Easy To Operate
warranty :
1 Year
Maximum Application Size :
10l
Blow Molding Type :
Extrusion Blow Molding Machine
Cooling water pressure :
0.6 MPA
Water Consumption :
100 L/Min
Mould Lifespan :
> 1,000,000 Cycles
Mold Material :

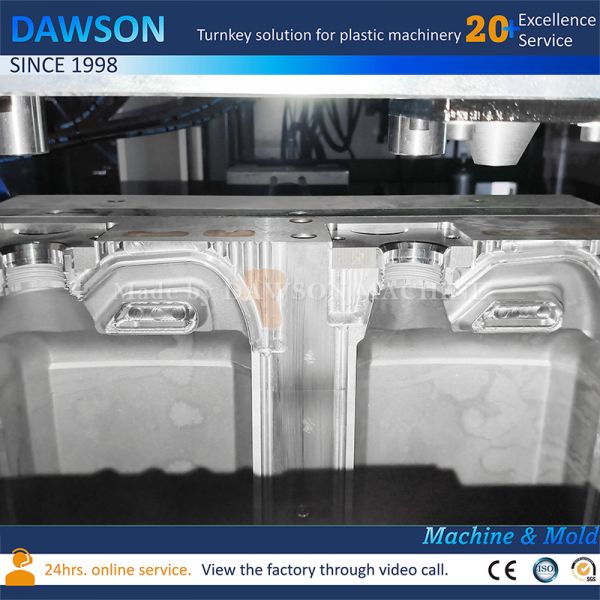

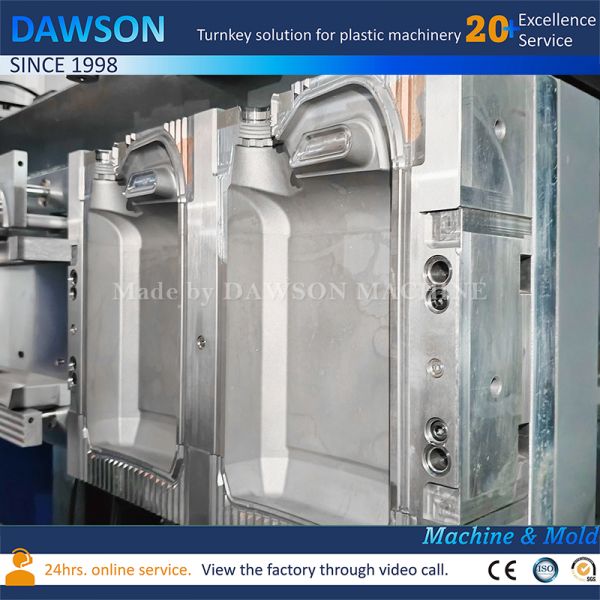

P20, 2316, S136H, Aluminum with beryllium copper.
Language settings :
Chinese, English and other language as customer need
Labor demand :
1~2 operetor
After-sales Service Provided :
Send engineer to customer's factory
Marketing Type :
Ordinary Product
Description
Product descriptions from the supplier

High Productivity Blow Molding Machine

5L HDPE Industrial Jerry Can Production Line

DSB90II Plastic Blow Molding Equipment

HDPE Jerry Can Production Blow Molding Machine

5L HDPE Blow Molding Machine for Industrial Use Double Station

5L HDPE Blow Molding Machine

Dual HeadHDPE Jerry Can Blow Molding Machine

3-Screw HDPE Blow Molding Machine for 5L Cans

5L HDPE Automotive and Chemical Packaging Machine

Industrial HDPE Liquid Container Blow Molding Machine

DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
DSB90II Automatic Double Die Head Blow Molder 5L HDPE Jerry Can Blow Molding Machine Extrusion Blow Molding Machine
About this supplier

ZHANGJIAGANG DAWSON MACHINE CO., LTD.
Located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine. During the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.The machines from our company carry good quality and effective after-sales service. Upon the market, customers from more than 45 countries, we provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale services!
