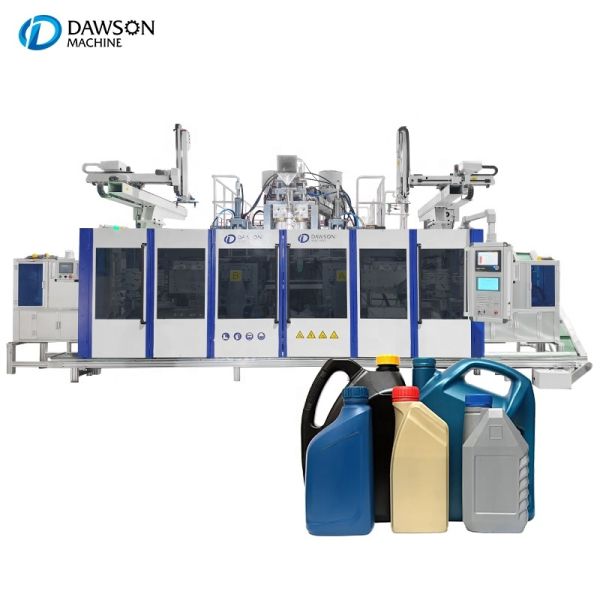

CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
Specifications
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Engine, Bearing, Gearbox, Gear
plastic processed :
PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
Place of Origin :
Jiangsu, China
Brand Name :
DAWSON
voltage :
440V/415V/380V/220V
dimension(l*w*h) :
3.6*2.8*2.8m(11.81*9.19*9.19ft)
Clamping Force (kN) :
250
plc brand :
Wisetech
screw diameter (mm) :
80
output (kg/h) :
120
automation :
Automatic
No. of Screw Heating Zone :
4
screw heating power(kw) :
21
extruder motor power(kw) :
37
mold platen size(width)(mm) :
550
mold platen size(height)(mm) :
680
air pressure(mpa) :
0.8
air comsumption(m³/min) :
2.2
die head heating power(kw) :
8
power (kw) :
90
weight (t) :
10
key selling points :
Easy To Operate
warranty :
1 Year
Maximum Application Size :
10l
Blow Molding Type :
Extrusion Blow Molding Machine
Cooling water pressure :
0.6 MPA
Water Consumption :
100 L/Min
Mould Lifespan :
> 1,000,000 Cycles
Mold Material :
P20, 2316, S136H, Aluminum with beryllium copper.
Language settings :
Chinese, English and other language as customer need
Labor demand :
1~2 operetor
After-sales Service Provided :
Send engineer to customer's factory
Marketing Type :
Ordinary Product
MOQ :
1
Price :
$56,800-60,800
Description
Product descriptions from the supplier

5L HDPE plastic jerry can making machine

DSB90II extrusion blow molding equipment

double station dual head plastic blow molding machine

3 screw extruder blow molding machine

HDPE jerry can manufacturing equipment

5 liter HDPE can blow molding machine

automotive oil container blow molding machine

industrial chemical liquid packaging machine

high speed blow molding machine for 5L cans HDPE industrial jerry can production machine

CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
About this supplier

ZHANGJIAGANG DAWSON MACHINE CO., LTD.
Located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine. During the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.The machines from our company carry good quality and effective after-sales service. Upon the market, customers from more than 45 countries, we provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale services!

Company overview
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
Factory profile
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
Competitive advantages
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
Trade show participation
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
Production workflow
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
Packaging & shipping specifications
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
Customization capabilities
CE Certified DSB90II Double Station Blow Molding Machine Jerry Can Making Machine for 5L HDPE Chemical Bottles
