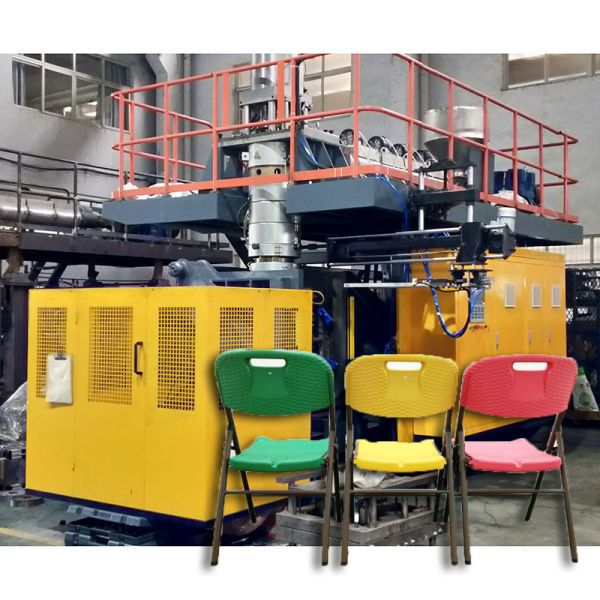

Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H
Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H
Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H
Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H
Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H
Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H
Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H
Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H
Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H
Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H
Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H
Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H
Specifications
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Engine, Bearing, Gearbox, Gear
plastic processed :
PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
place of origin :
Jiangsu, China
brand name :
DAWSON
voltage :
440V/415V/380V/220V
dimension(l*w*h) :
7.5*3.5*5.5
Clamping Force (kN) :
900
screw diameter (mm) :
120
output (kg/h) :
350
automation :
Automatic
No. of Screw Heating Zone :
6
screw heating power(kw) :
36
extruder motor power(kw) :
132
mold platen size(width)(mm) :
1200
mold platen size(height)(mm) :
1700
air pressure(mpa) :
0.8
air comsumption(m³/min) :
1.6
die head heating power(kw) :
36
power (kw) :
241
weight (t) :
36
key selling points :
Long Service Life
warranty :
1 Year
Blow Molding Type :
Extrusion Blow Molding Machine
Maximum Application Size :
300L
Cooling water pressure :
0.6 MPA
Water Consumption :
180 L/Min
Mould Lifespan :
> 1,000,000 Cycles
Mold Material :
P20, 2316, S136H, Aluminum with beryllium copper.
Language settings :
Chinese and English operation panel
Instructions provided :
Instructions in Chinese and English
Labor demand :
1~2 operetor
Samples provided :
If required
Price :
$158,600/sets 1-2 sets
Description

Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H

Product Description

DAWSON MACHINERY & MOULD GROUP

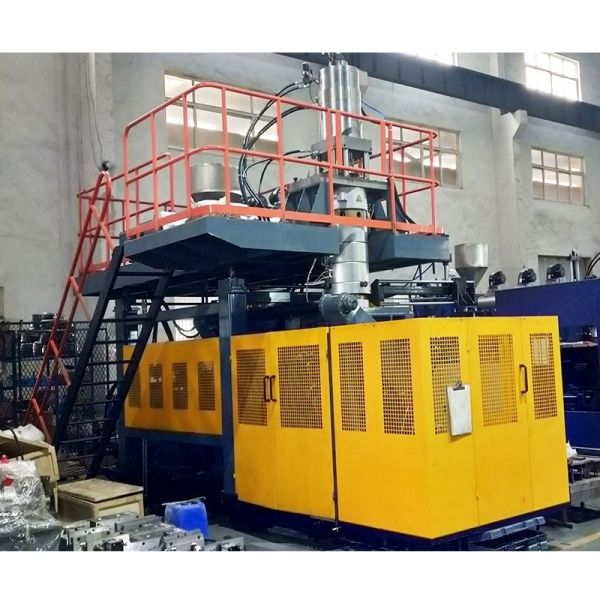

Extrusion Blow Molding Machine ABLD120

suitable for making drums, barriers, bed board... up to 120L, The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.

Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H

Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg HLong Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H

Technical Parameters

Name

Units

ABLD100

ABLD120

Max.product volume

L

120

300

Dry cycle

PC/H

360

300

Screw diameter

MM

100

120

Screw L/D ratio

L/D

28

33

Screw drive power

KW

55

132

Screw heating capacity

KW

22

36

No.of heating zone

ZONE

5

6

Output of HDPE

KG/H

200

350

Oil pump drive power

KW

22

37

Clamping force

KN

600

900

Max.size of mold

MM

1000×1300

1200×1700

Material storage

L

14

24-35

Template size

MM

1150×1150

1200×1600

Mold stroke

MM

500-1350

880-1700

Max.die diameter

MM

450

700

Die heating power

KW

21

36

Die heating few segments

ZONE

5

6

Blowing pressure

MPA

0.8

0.8

Air volume

m³/MIN

1.6

1.6

Cooling water pressure

MPA

0.3

0.3

Water consumption

L/MIN

150

180

Size of machine

L×W×H

5.4×2.5×4.5

7.5×3.5×5.5

Weight of machine

TON

15

36


Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H

Workshop

Our professional blow molding machine workshop...

Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H

High Quality Mould
Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg HLong Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H
Customer Feedback

Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H

Our Services

Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg HLong Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H
