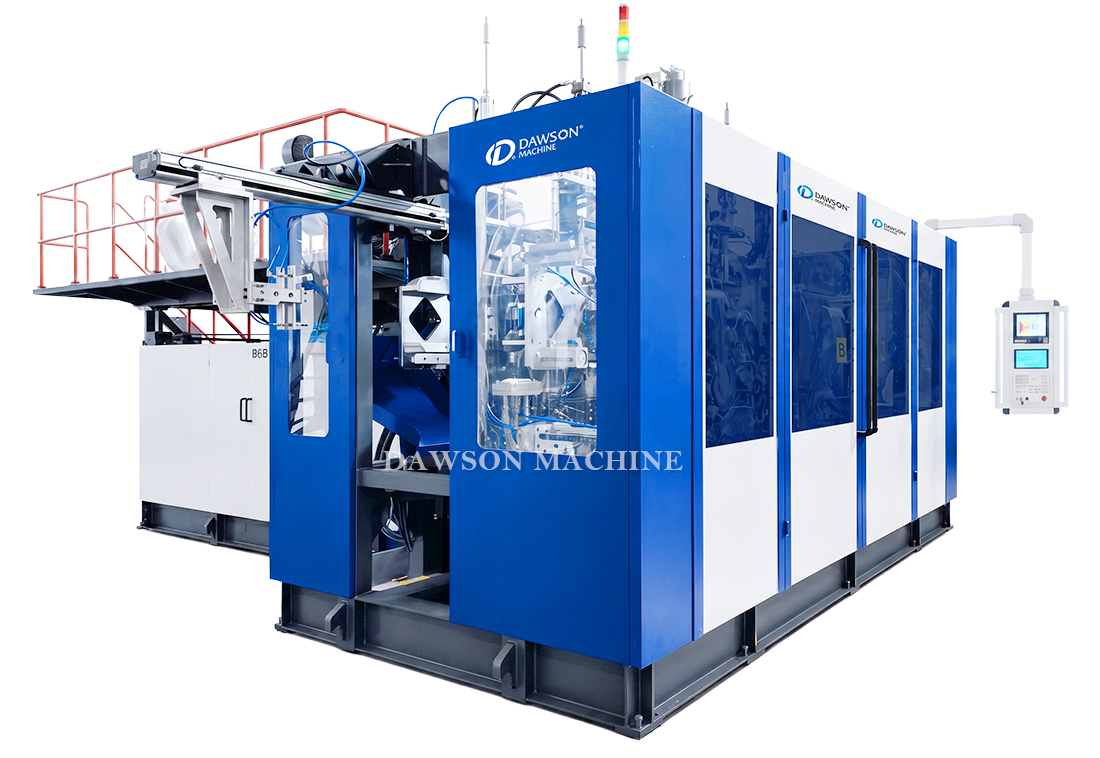

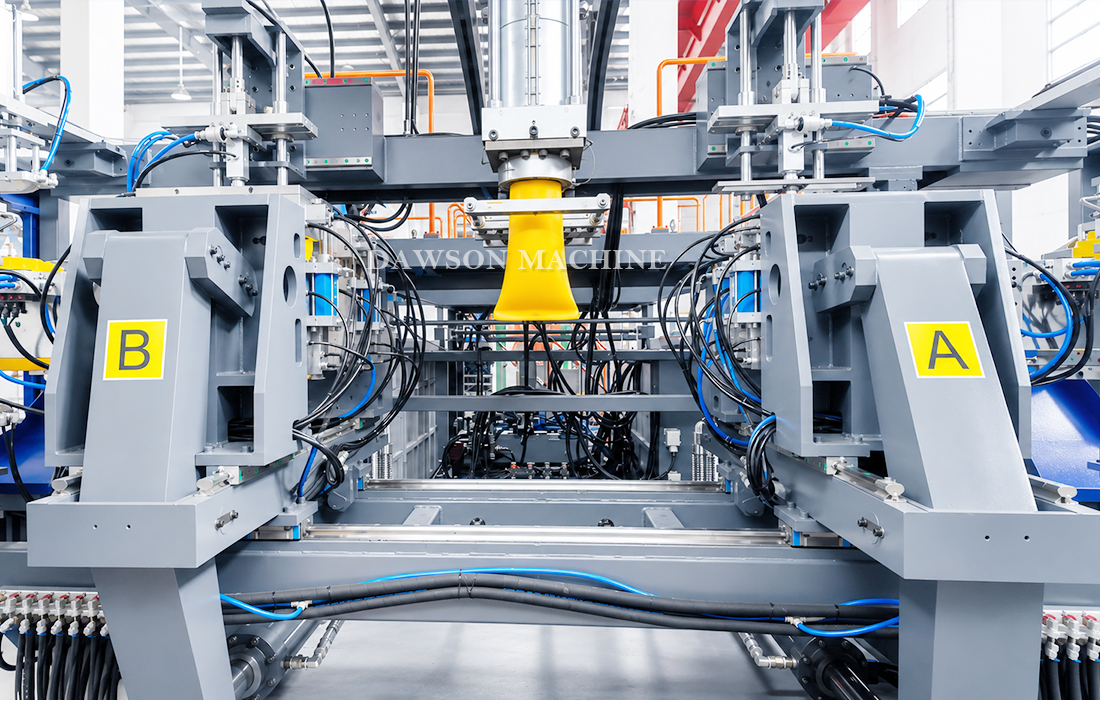

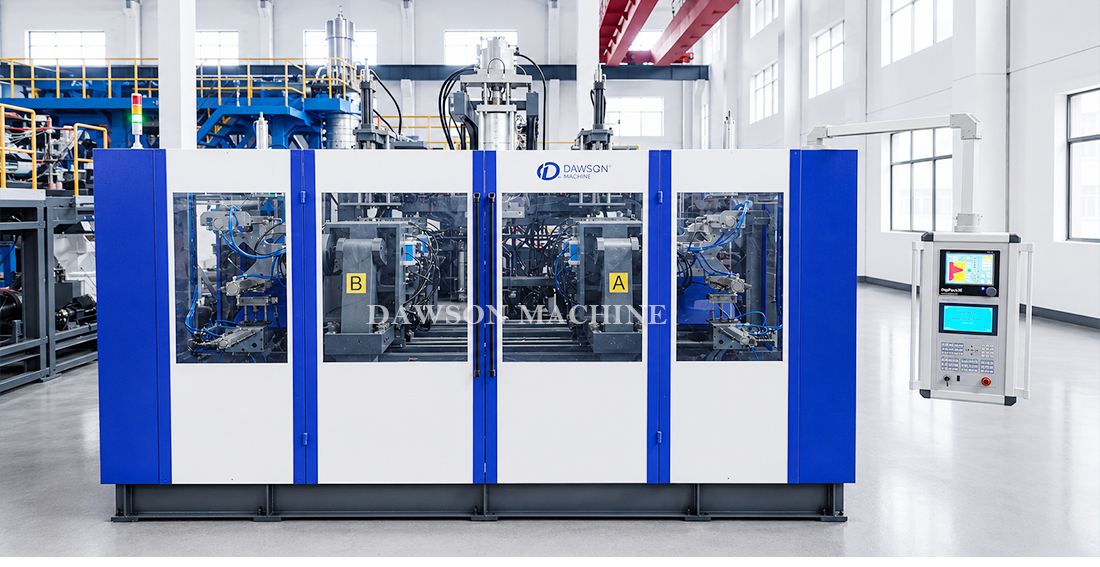

Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine

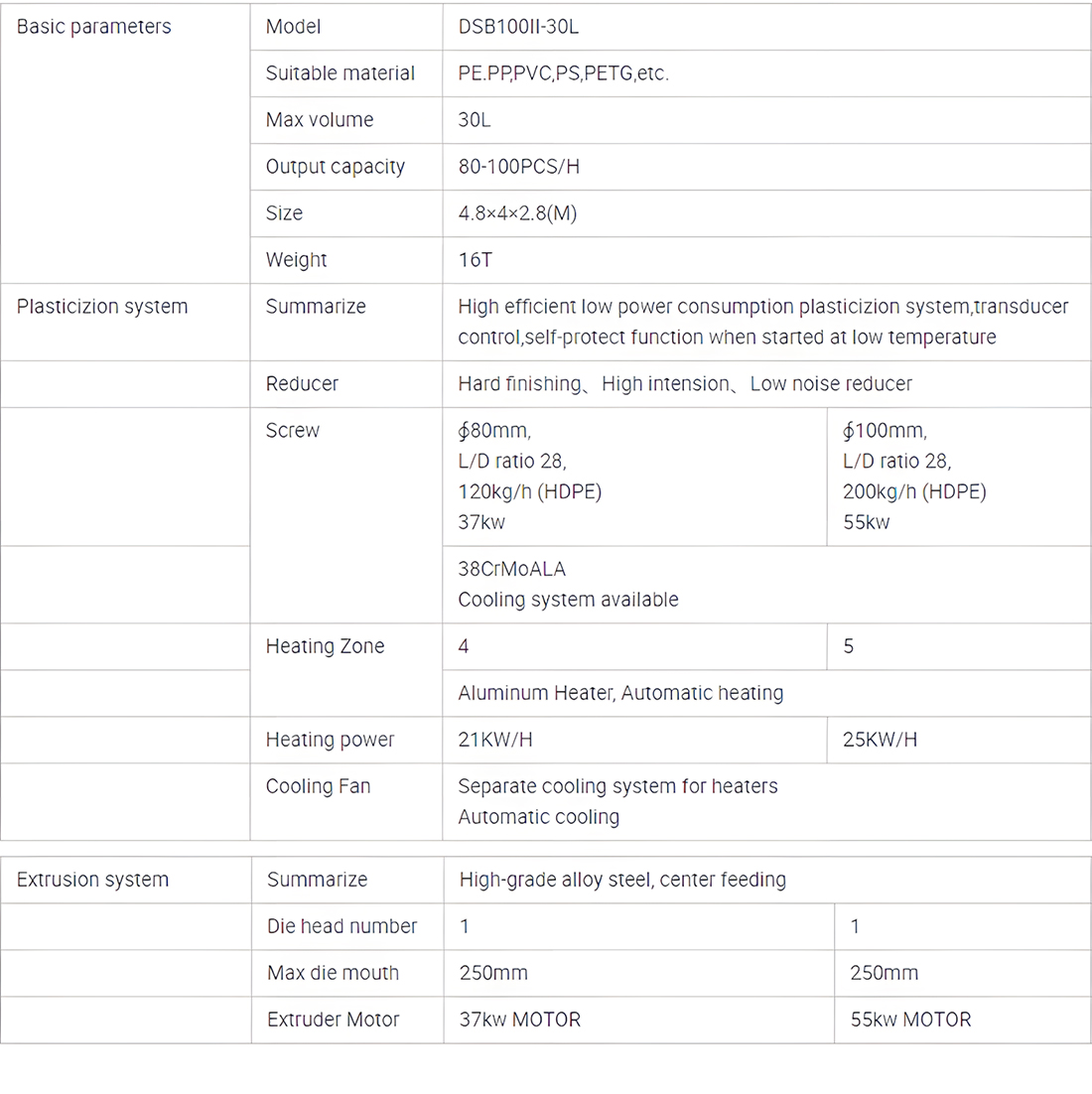

Specifications
plastic processed :
PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
automation :
Automatic
air pressure(mpa) :
0.8
Blow Molding Type :
Extrusion Blow Molding Machine
core components :
PLC, Engine, Bearing, Gearbox, Gear
screw diameter (mm) :
90
voltage :
440V/415V/380V/220V
die head heating power(kw) :
8
Maximum Application Size :
30L
MOQ :
1
plc brand :
WiseTech
mold platen size(width)(mm) :
660
weight (t) :
11.3
Labor demand :
1~2 operetor
Brand Name :
DAWSON
dimension(l*w*h) :
4.4*3.4*3.6
Cooling water pressure :
0.6 MPA
Price :
$46,876.54-47,685.24
Place of Origin :
Jiangsu, China
output (kg/h) :
130
key selling points :
Easy To Operate
video outgoing-inspection :
Provided
Clamping Force (kN) :
270
Screw L/D Ratio :
24
mold platen size(height)(mm) :
680
power (kw) :
67
Samples provided :
If required
No. of Screw Heating Zone :
4

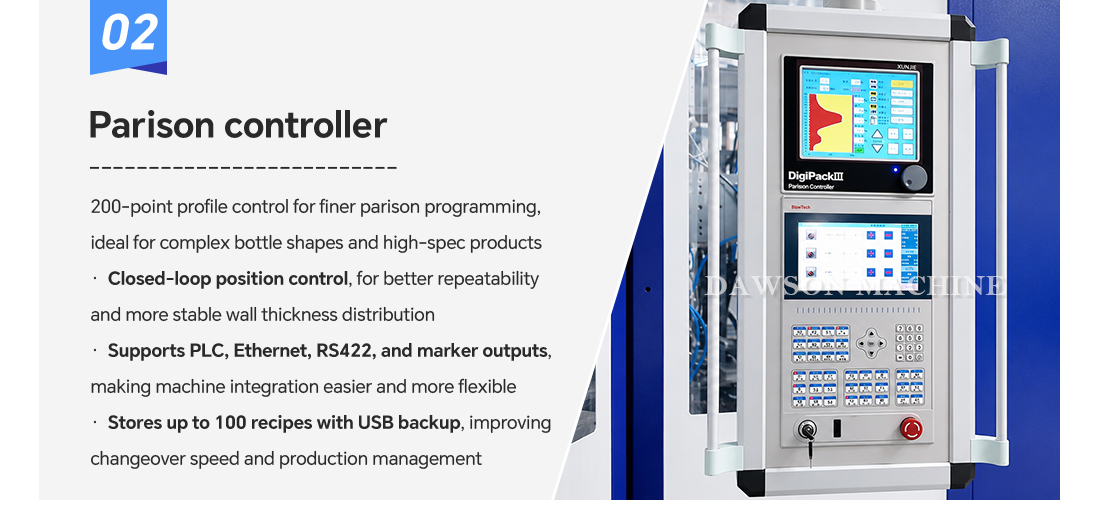

Parison Control system :
M00G 200 points

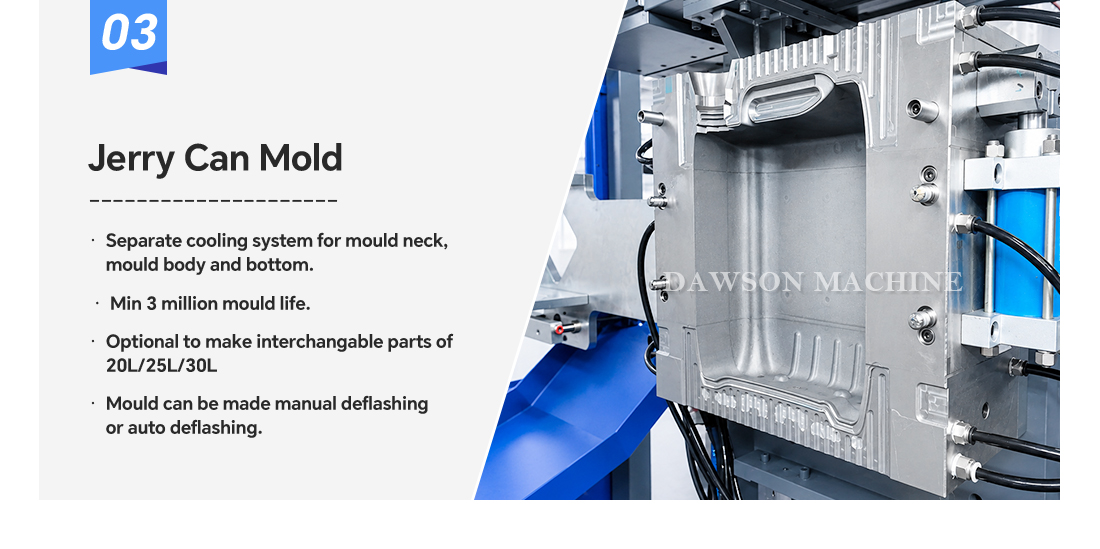

Mold Material :
P20, 2316, S136H, Aluminum with beryllium copper.
Language settings :
Chinese and English operation panel
Instructions provided :
Instructions in Chinese and English
machinery test report :
Provided
air comsumption(m³/min) :
2.2
warranty :
1 Year
Water Consumption :
100 L/Min
extruder motor power(kw) :
30
screw heating power(kw) :
10
Description
Product descriptions from the supplier

Industrial Single Die Head Extrusion Blow Molding Machine Lubricant Oil Jerry Can Machine Blow Molding Machines for Plastic Storage Drum Manufacturing

High Output HDPE Jerry Can Blow Molding Machine Precision Wall Thickness System for Industrial Packaging Applications

High Output Automatic 30L HDPE Blow Molding Machine Jerry Can Blow Moulding Machines for Plastic Storage Drum Manufacturing

Automatic 30L Jerry Can Making Machine Double Station Extrusion Blow Moulding Machines for Lubricant Oil Container Production

Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
About this supplier

ZHANGJIAGANG DAWSON MACHINE CO., LTD.
Located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine. During the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.The machines from our company carry good quality and effective after-sales service. Upon the market, customers from more than 45 countries, we provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale services!

Company overview
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Factory profile
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Competitive advantages
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Trade show participation
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Production workflow
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Packaging & shipping specifications
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
Customization capabilities
Automatic DSB100II-30L HDPE Plastic Container Blow Molding Machine 30L HDPE Jerry Can Blow Moulding Machine
