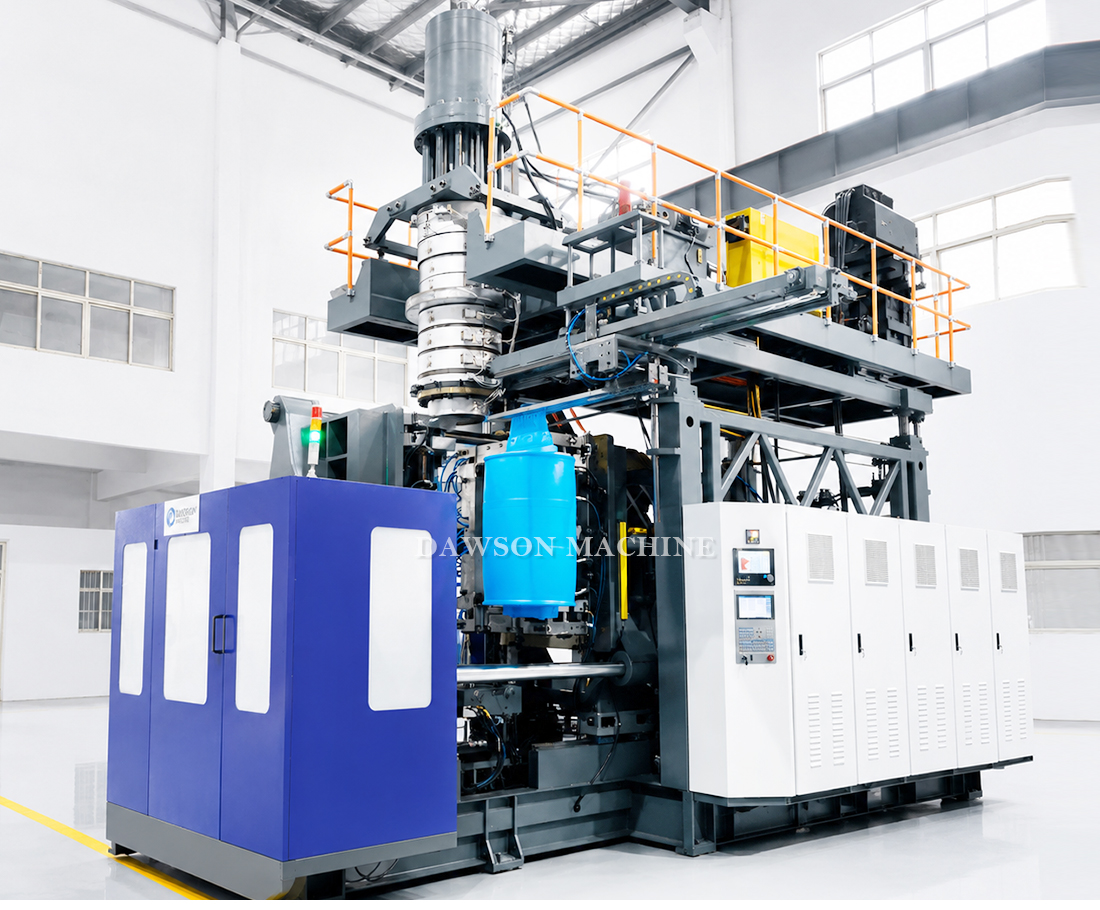

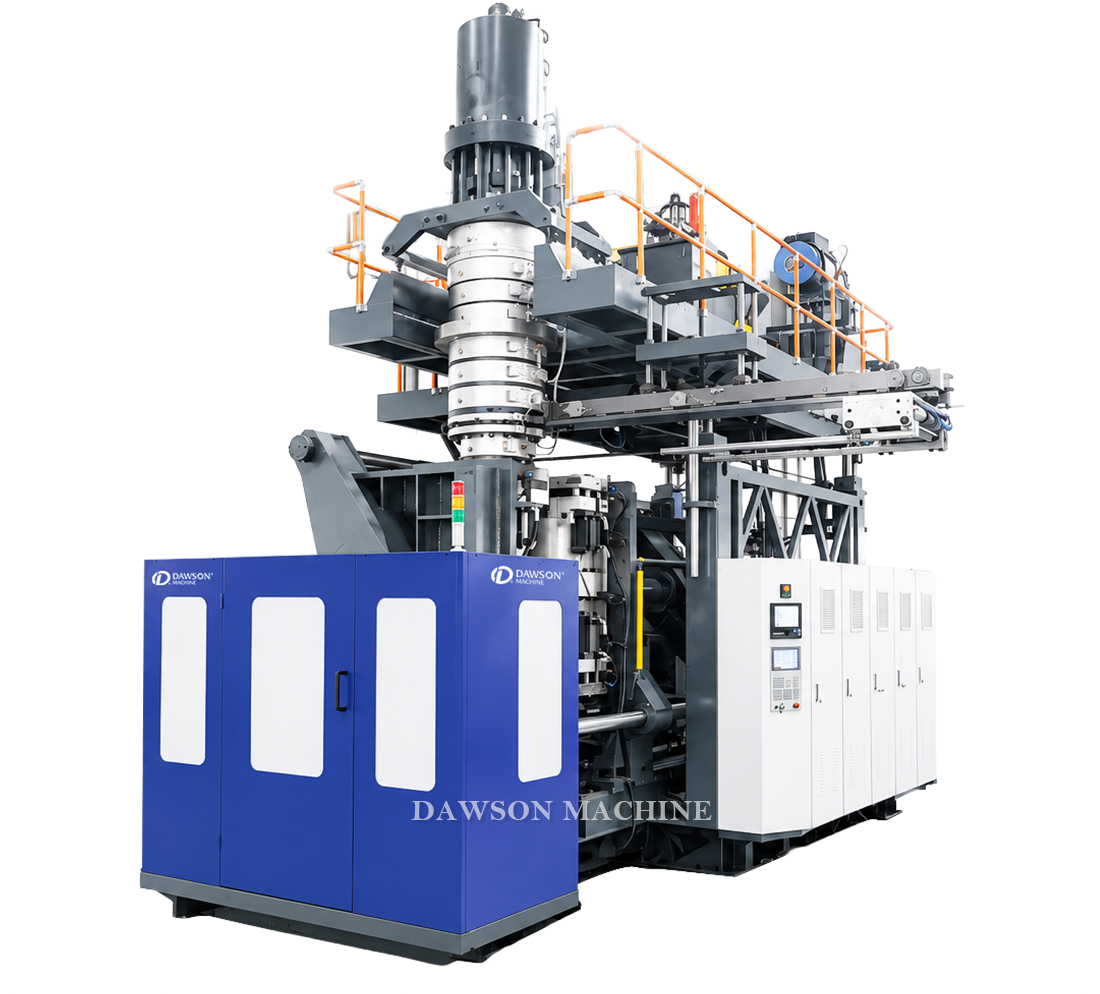

Automatic HDPE 200L Plastic Drum Blow Molding Machine Drum Making Equipment for Lubricant Oil Production
Automatic HDPE 200L Plastic Drum Blow Molding Machine Drum Making Equipment for Lubricant Oil Production
Automatic HDPE 200L Plastic Drum Blow Molding Machine Drum Making Equipment for Lubricant Oil Production
Automatic HDPE 200L Plastic Drum Blow Molding Machine Drum Making Equipment for Lubricant Oil Production
Automatic HDPE 200L Plastic Drum Blow Molding Machine Drum Making Equipment for Lubricant Oil Production
Automatic HDPE 200L Plastic Drum Blow Molding Machine Drum Making Equipment for Lubricant Oil Production
Automatic HDPE 200L Plastic Drum Blow Molding Machine Drum Making Equipment for Lubricant Oil Production
Automatic HDPE 200L Plastic Drum Blow Molding Machine Drum Making Equipment for Lubricant Oil Production
Automatic HDPE 200L Plastic Drum Blow Molding Machine Drum Making Equipment for Lubricant Oil Production
Automatic HDPE 200L Plastic Drum Blow Molding Machine Drum Making Equipment for Lubricant Oil Production
Automatic HDPE 200L Plastic Drum Blow Molding Machine Drum Making Equipment for Lubricant Oil Production
Automatic HDPE 200L Plastic Drum Blow Molding Machine Drum Making Equipment for Lubricant Oil Production

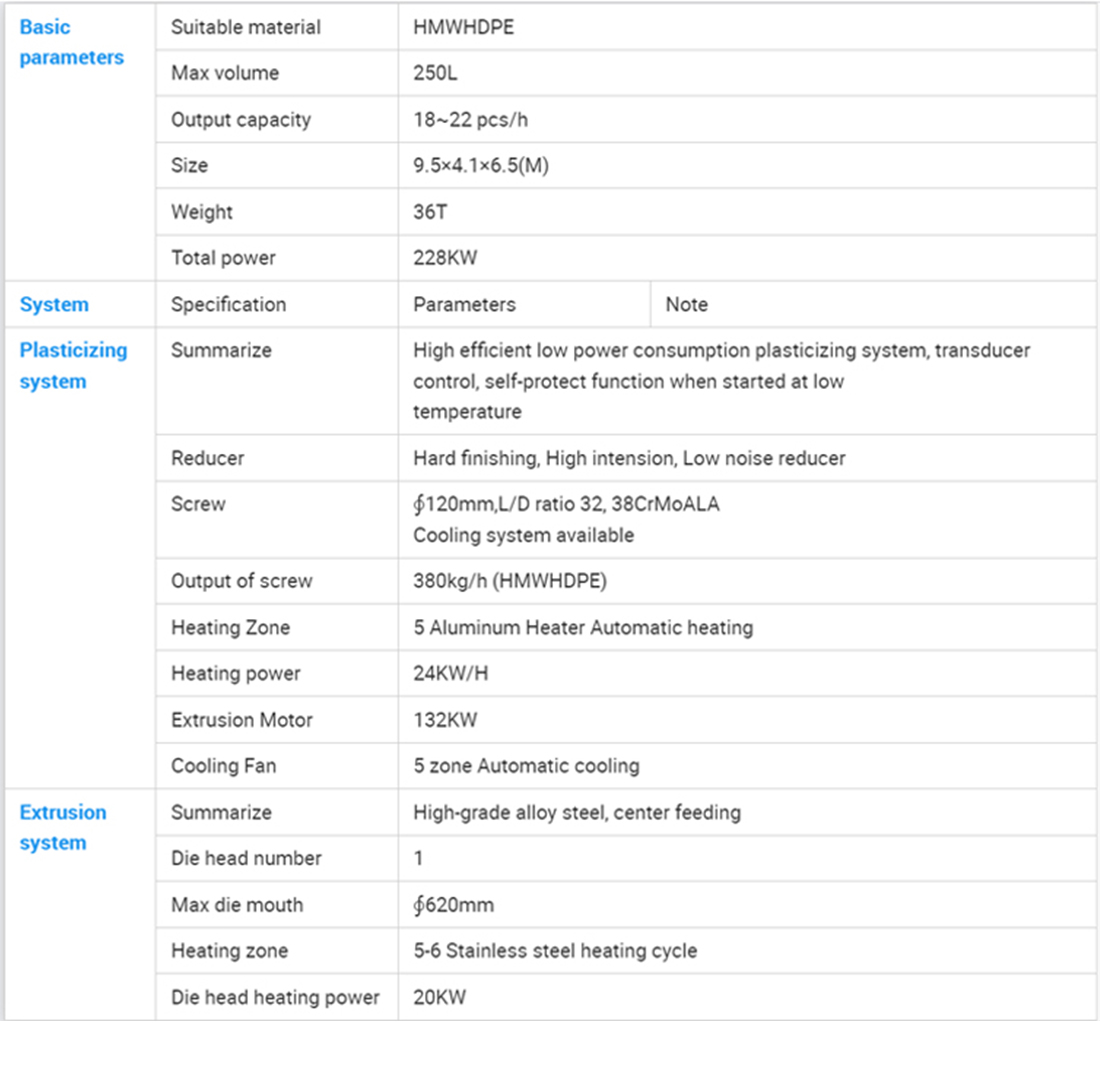

Specifications
plastic processed :
PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
Mold Material :
Steel
voltage :
440V/415V/380V/220V
air comsumption(m³/min) :
1.6
air pressure(mpa) :
0.8
Certification :
CE / ISO9001
core components :
PLC, Engine, Bearing, Gearbox, Gear
screw diameter (mm) :
120
extruder motor power(kw) :
132
mold platen size(height)(mm) :
1600
Material application :
HMWHDPE
No. of Screw Heating Zone :
6
output (kg/h) :
350
automation :
Automatic
key selling points :
Easy To Operate
After Warranty Service :
Field maintenance and repair service
After-sales Service Provided :
Field installation, commissioning and training
Function :
Auto Blow Molding Machine
video outgoing-inspection :
Provided
Clamping Force (kN) :
900
mold platen size(width)(mm) :
1200
Price :
40,309,100-49,611,200円
Brand Name :
DAWSON
power (kw) :
228
Place of Origin :
Jiangsu, China
screw heating power(kw) :
36
Blow Moulding Type :
Extrusion Blow Moulding
Hydraulic Valve :
Taiwan
warranty :
1 Year
Advantage :
High Efficiency
Local Service Location :
Panama
machinery test report :
Provided
dimension(l*w*h) :
9.5*4.1*6.5
die head heating power(kw) :
20
weight (t) :
36
MOQ :
1
Description
Product descriptions from the supplier

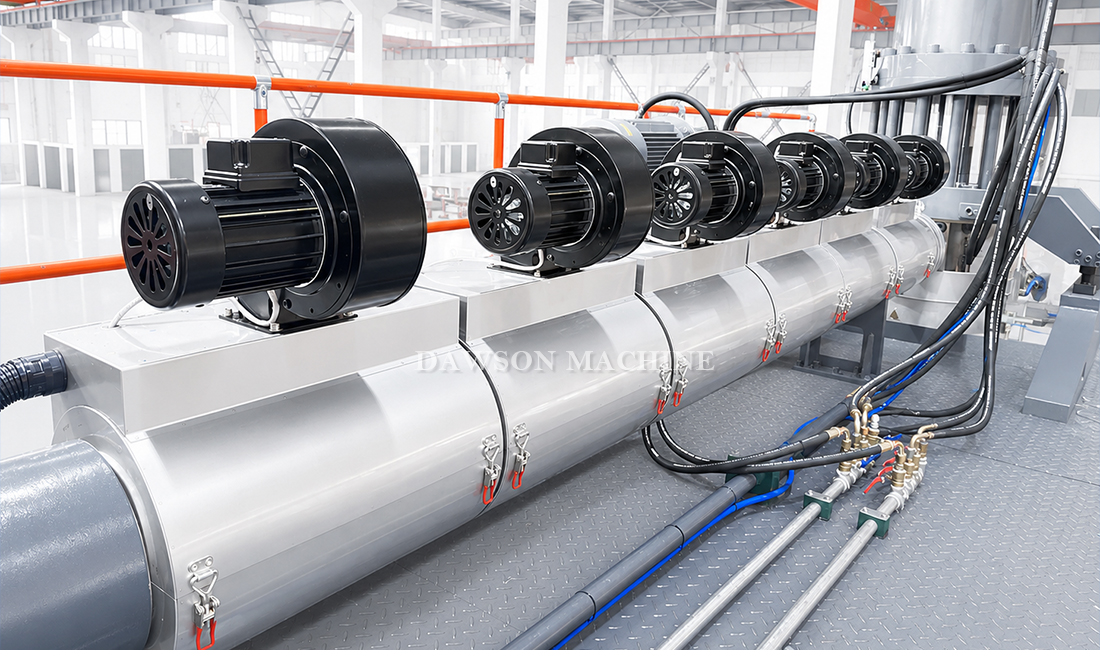

Low Power Consumption Plasticizing System: The high-efficiency plasticizing design with transducer control cuts energy use, lowering the cost per drum produced Smart Temperature Control: Five automatic aluminum heating zones with self-protection at low temperature start reduce heat loss and protect the screw system from cold-start damage Energy Saving Operation: Automatic 5-zone cooling fans match cooling output to production demand, avoiding unnecessary power waste during normal running Reduced Production Cost: Lower power draw and stable material output mean fewer rejects and a faster payback, improving overall profitability for drum manufacturers
