Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control

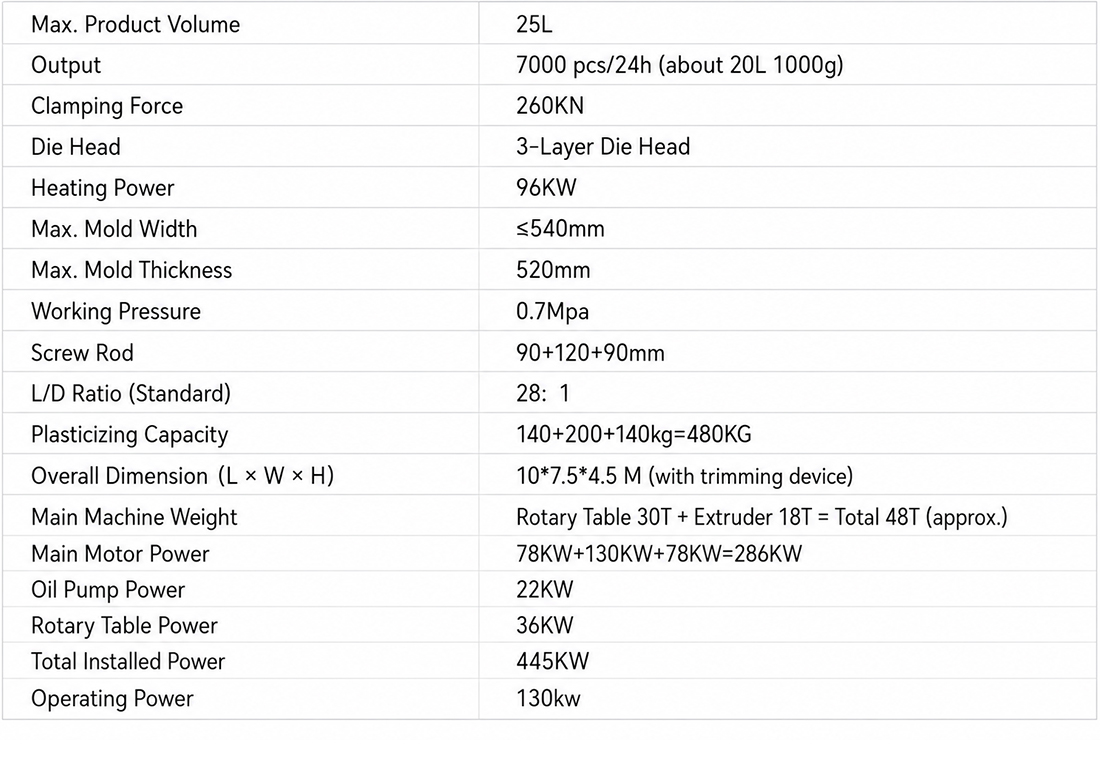

Specifications
machinery test report :
Provided
air pressure(mpa) :
0.8
Blow Molding Type :
Rotary Blow Molding Machine
Rotary Table Power :
36KW
voltage :
440V/415V/380V/220V
screw diameter (mm) :
75
mold platen size(height)(mm) :
620
Max. Product Volume :
25L
Clamping Force (kN) :
44/110
No. of Screw Heating Zone :
3
mold platen size(width)(mm) :
270
After-sales Service Provided :
Field installation, commissioning and training
dimension(l*w*h) :
4.9*3.68*2.
screw heating power(kw) :
12.5
Price :
$56,800-98,000
extruder motor power(kw) :
30
Mold Material :
P20, 2316, S136H, Aluminum with beryllium copper.
Screw L/D Ratio :
24
automation :
Automatic
MOQ :
1
Operating Power :
22KW
video outgoing-inspection :
Provided
air comsumption(m³/min) :
15
Brand Name :
Dawson
key selling points :
Easy To Operate
warranty :
1 Year
die head heating power(kw) :
7
Instructions provided :
Instructions in Chinese and English
core components :
PLC, Engine, Bearing, Gearbox, Gear
Language settings :
Chinese and English operation panel
output (kg/h) :
120
Place of Origin :
China
weight (t) :
11
Total Installed Power :
445KW
plastic processed :
PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
power (kw) :
62
Description
Product descriptions from the supplier

Automatic HDPE Blow Molding Machine for Plastic Bottles Jerry Cans Chemical Containers Rotary Servo Control

Plastic Container Making Machine for HDPE Lubricant Detergent Edible Oil Bottles High Speed Blow Molding Line

High Speed HDPE Plastic Jerry Can Blow Molding Machine for 1L-25L Bottles Servo Rotary Automatic Manufacturing

Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
Automatic HDPE Rotary Blow Molding Machine with 25L Max. Product Volume Temperature Control
About this supplier

ZHANGJIAGANG DAWSON MACHINE CO., LTD.
Located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine. During the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.The machines from our company carry good quality and effective after-sales service. Upon the market, customers from more than 45 countries, we provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale services!
