Specifications
MOQ :
1 piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000pcs per year
Delivery Time :
7-60 days
Place of Origin :
China
Brand Name :
Jentan
Certification :
CE;GS;EN;ISI;AU;UL;CUL;TUV
Price :
Negotiation
Model Number :
JTSJ-A
Warranty :
1 year
Size :
12 inches
Features :
Adjustable height, easy to operate, durable
Type :
Mechanical Jack
Application :
Industrial use
Capacity :
3.2-380 tons
Country Of Origin :
China
Usage :
Heavy duty lifting
Weight :
19.5-60 kg
Material :
Steel
Color :
yellow
Description

A screw jack is a simple yet powerful mechanical device designed to lift, lower, position, align, and stabilize heavy loads with exceptional precision and reliability.

Operating on the fundamental principle of the screw mechanism, it converts rotational force (torque) applied via a handle or motor into linear, vertical movement. This provides a significant mechanical advantage, allowing a small input force to safely manage loads ranging from hundreds to thousands of kilograms.

  • High Reliability: Requires no hydraulics or pneumatics, making it robust and maintenance-free.

  • Safety & Stability: Features a self-locking mechanism that holds the load securely in position without continuous application of force, preventing unintended lowering.

  • Precision Control: Allows for extremely accurate, fine adjustments in positioning.

  • Durability: Built from high-strength materials to perform in demanding industrial environments.

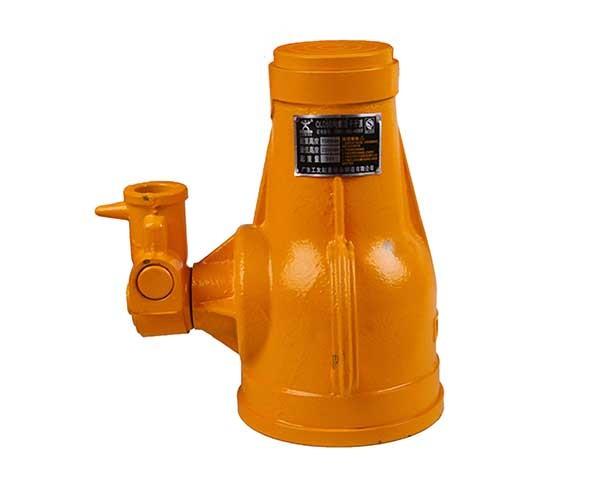

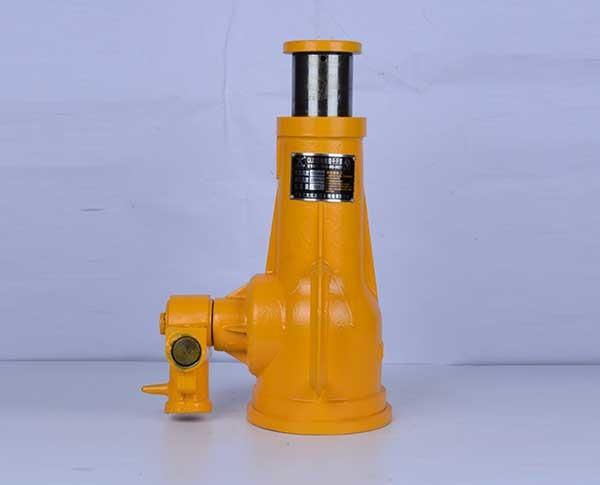

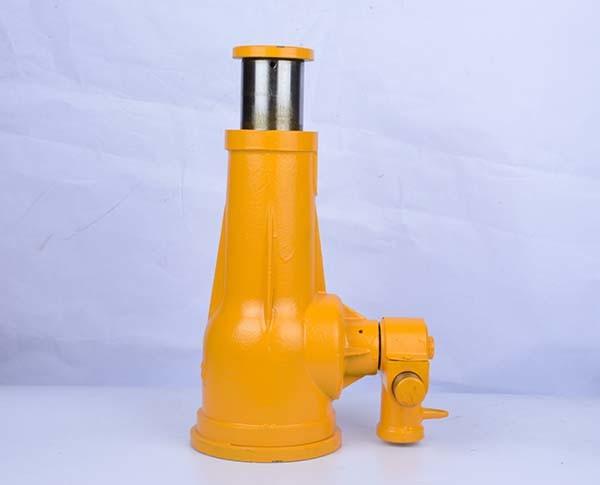

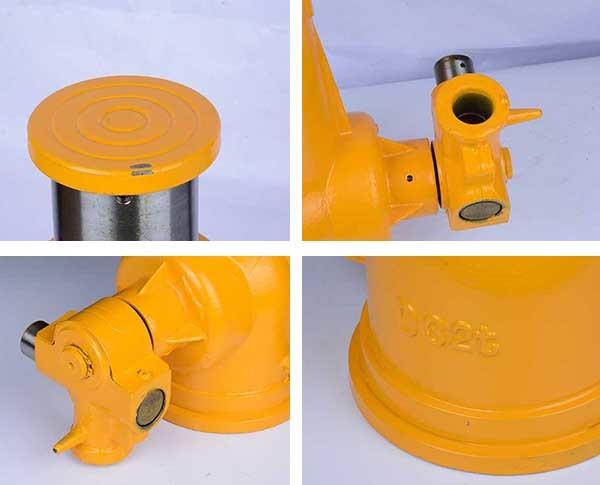

JTSJ-A Screw Jack

Model Capacity (T) Lifting Height (mm) Min. Height (mm) Piece/Canton N.W. (kg) G.W. (kg) Package Size (cm)
QL3.2 3.2T 110 200 5 18.5 19.5 61*25*16
QL5 5T 130 250 5 27.5 28.5 68*28*18
QL8 8T 140 260 5 27.5 28.5 68*28*18
QL10 10T 150 280 4 24.5 25.5 55*31*20
QLD10 10TD 75 200 5 24.5 25.5 68*28*18
QL16 16T 180 320 3 29.5 30.5 54*35*21
QLD20 20TD 90 225 3 24.5 25.5 54*30*20
QL20 20T 180 325 3 29.5 30.5 54*35*21
QL25 25T 130 275 3 27.5 28.5 54*30*20
QL32 32T 200 395 2 32 33 43*41*23
QLD32 32TD 180 320 2 28.5 29.5 41*32*26
QL50 50T 250 452 1 29 30 49*32*26
QLD50 50TD 150 330 1 24 25 37*32*26
QL100 100T 200 452 1 59 60 52*37*26
QL200 200T 200 472 1 / / /
QL320 320T 200 540 1 / / /
QL380 380T 200 600 1 / / /
