The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain
The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain
The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain
The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain
The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain
The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain
The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain
The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain
The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain
The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain
The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain
The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain
The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain
The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain
The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain
The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain
Specifications
Brand Name :
Jentan
Model Number :
JTVC-A
Certification :
CE;GS;EN;ISI;AU;UL;CUL;TUV
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000pcs per year
Delivery Time :
7-60 days
Price :
Negotiation
Packaging Details :
Carton
Hooks :
Forged Steel
Orginal :
CHINA
Chain Size :
6x18mm
Operation Mode :
Handle button + remote control
Height :
3-30m
Type :
JTVC-A
Load Chain :
Single
Sling Type :
Chain
Lifting Height :
3m
Safety Factor :
4:1
Chain Material :
G80&G100 for Option
Construction Material :
Steel
Warranty :
1 year
Hook Material :
Forged Steel
Control Type :
Hand Chain
Load Chain Diameter :
6 mm
Origin :
China
Loading Capacity :
0.5 ton - 10 ton
Handle Length :
300 mm
Hoist Type :
Manual
Power :
3.0*2kw
Lift Speed :
Manual
Capacity :
1 ton
Description

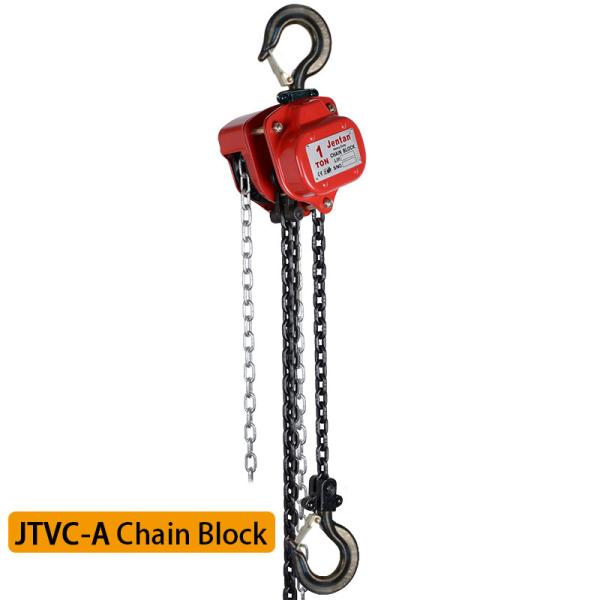

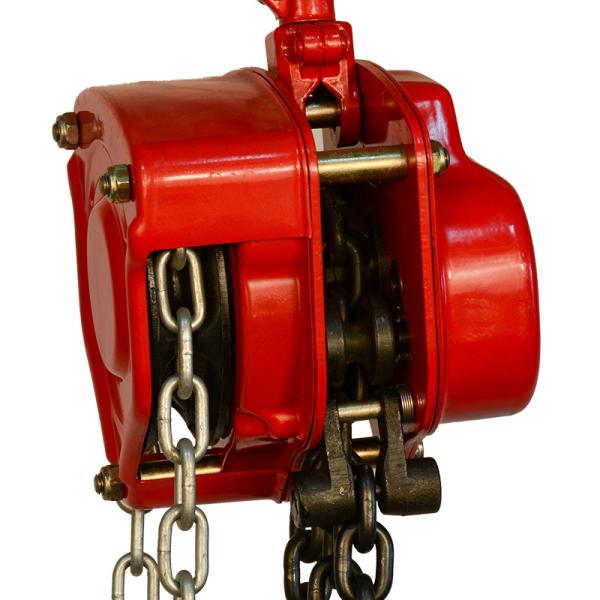

JTVC-A Manual Chain Hoist – Engineered for Safety, Adaptability & Low-Maintenance Performance

The JTVC-A Manual Chain Hoist is a professional-grade lifting tool designed for demanding applications where safety, reliability, and ease of use are paramount. Its compact design and low headroom requirement ensure wide usability in confined spaces, while a suite of premium features—from a robust double-pawl brake to high-precision gearing—guarantees smooth, secure, and efficient operation. Built for durability with optional customization, the JTVC-A is the versatile choice for workshops, maintenance, construction, and industrial material handling.

The JTVC-A Chain Block Unmatched Performance and Durability with GBO Heat-Treated Alloy Load Chain

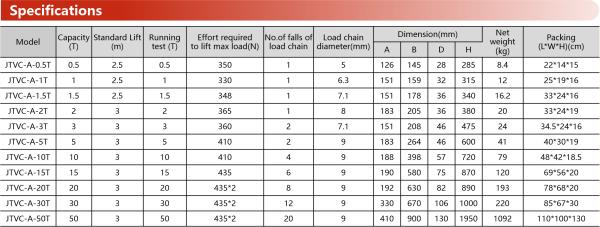

JTVC-A Specifications Sheet
Model capacity(t) Lift(m) Proof Load(KN) Effort required to lift max load (N) Load Chain Dimensions(mm) N.W.(kg)
Falls Diameter H A B D
VC0.5 0.5 2.5 7.5 350 1 5X15 285 126 145 28 8.4
VC1 1 2.5 15 330 1 6.3X19 315 151 159 32 12
VC1.5 1.5 2.5 22.5 348 1 7.1X21 340 151 178 36 16.2
VC2 2 3 3 365 1 8X24 380 183 205 36 20
VC3 3 3 45 360 2 7.1X21 475 151 208 46 24
VC5 5 3 75 410 2 9X27 600 183 264 46 41
VC7.5 7.5 3 112.5 410 3 9X27 700 185 355 57 65
VC10 10 3 150 435 4 9X27 720 188 398 57 79
VC15 15 3 225 435 6 9X27 870 190 580 75 120
VC20 20 3 300 435X2 8 9X27 890 192 630 82 193
VC30 30 3 450 435X2 12 9X27 1000 330 670 106 220
VC50 50 3 750 435X2 22 9X27 1950 410 900 130 1092
