Specifications

Brand Name :

Jentan

Model Number :

JTAL

Certification :

CE;GS;EN;ISI;AU;UL;CUL;TUV

Place of Origin :

China

MOQ :

1 piece

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time :

7-60 days

Price :

Negotiation

Supply Ability :

500000pcs per year

Packaging Details :

Wooden Box

Power Source :

Electric

Material :

Stainless Steel

Control Method :

Remote Control

Lifting Height :

1.5m

Voltage :

220V

Chain Type :

G80 Alloy Steel

Warranty :

1 Year

Safety Features :

Overload Protection, Emergency Stop Button

Capacity :

3-12t

Usage :

Industrial, Construction, Warehouse

Hoist Speed :

8m/min

Protection Grade :

IP54

Frequency :

50Hz

weight :

13.2-40kg

Description

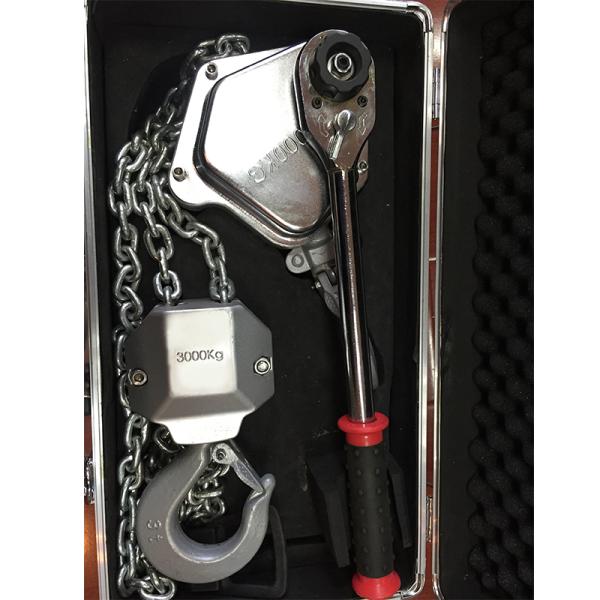

JTAL Lever Block

Introducing the international high-end technology.
Safety factor: four times.
Small and light, easy to carry.
High work efficiency and light hand force.
Easy to maintain and.
The hoist body uses high-strength alloy steel and in sealed gear cover, to assure safety.
The brake system uses the two pawls, with higher safety and stability.
The handle lever is designed in disconnect-type and is easy to carry. When overloaded, the handle will be deformed to remind the user.
With brake clutch device, the chan can be adjusted and rotated when non-loaded. It can help to adjust the hook position and improve work efficiency.

JTAL Lever Block 1.42kg 2.84kg 4.26kg 5.68kg Loading Chain Weight/Meter for JTAL-D3 JTAL-D6 JTAL-D9 JTAL-D12

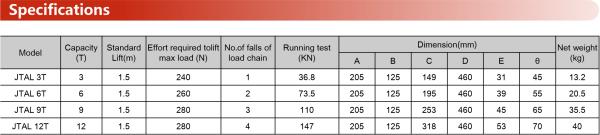

Model		JTAL-D3	JTAL-D6	JTAL-D9	JTAL-D12
Capacity	t	3	6	9	12
Standard	m	1.5	1.5	1.5	1.5
Running test	kN	36.8	73.5	110	147
Effort required to lift max load	N	240	260	280	280
Load chain diameter	mm	8	8	8	8
Falls		1	2	3	4
Min distance between hooks(H)	mm	445	575	770	720
Dimensions(mm)	A	205	205	205	205
	B	125	125	125	125
	C	149	195	253	318
	D	460	460	460	460
	E	31	39	45	53
	φ	45	55	65	70
N.W.	kg	13.2	20.5	35.5	36.5
Loading Chain Weight/Meter	kg	1.42	2.84	4.26	5.68
