Heavy Duty Mechanical Lifting Devices Including JTPB F3 Hook Chain Link Closed Triple Wheels Pulley for Material Handling
Heavy Duty Mechanical Lifting Devices Including JTPB F3 Hook Chain Link Closed Triple Wheels Pulley for Material Handling
Heavy Duty Mechanical Lifting Devices Including JTPB F3 Hook Chain Link Closed Triple Wheels Pulley for Material Handling
Heavy Duty Mechanical Lifting Devices Including JTPB F3 Hook Chain Link Closed Triple Wheels Pulley for Material Handling
Heavy Duty Mechanical Lifting Devices Including JTPB F3 Hook Chain Link Closed Triple Wheels Pulley for Material Handling
Heavy Duty Mechanical Lifting Devices Including JTPB F3 Hook Chain Link Closed Triple Wheels Pulley for Material Handling
Specifications
Place of Origin :
China
Brand Name :
Jentan
Certification :
CE;GS;EN;ISI;AU;UL;CUL;TUV
MOQ :
1 piece
Price :
Negotiation
Delivery Time :
7-60 days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
500000pcs per year
Description

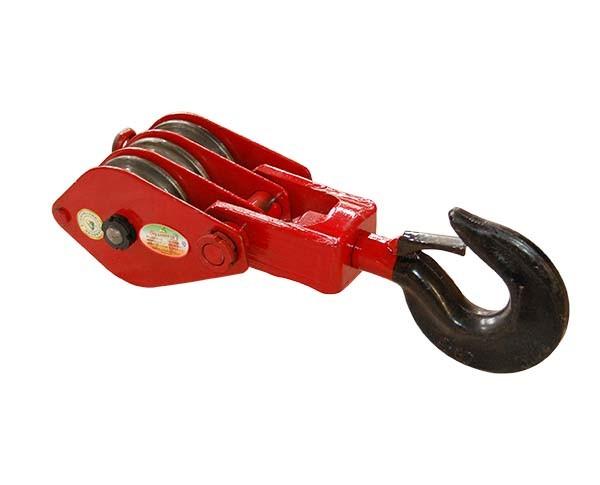

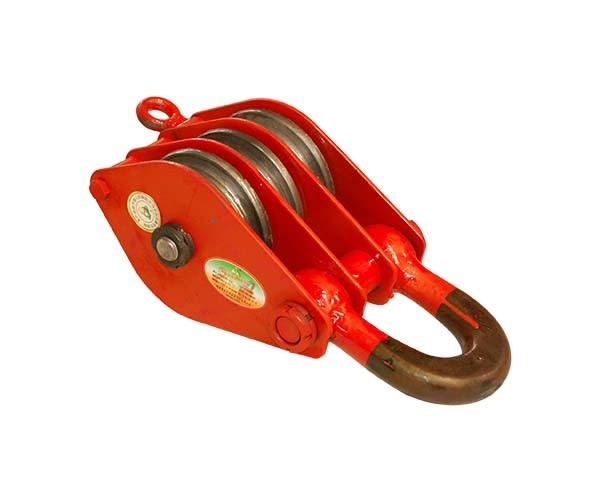

JTPB-F3 Hook(Chain Link)Sories Closed Triple Wheels Pulley

The JTPB-F3 Hook (Chain Link) Series Closed Triple Wheels Pulley is engineered for demanding rigging, lifting, and mechanical advantage systems where strength, reliability, and quick deployment are critical. Featuring three smoothly rotating steel or alloy sheaves enclosed in a sealed protective housing, this pulley significantly reduces rope friction, multiplies pulling power, and is built to withstand harsh conditions. Its integrated forged steel hook with chain-link compatibility allows fast, secure attachment to slings, chains, or anchor points without additional hardware, making it ideal for rescue, industrial, arborist, and off‑road applications.

Key Features & Benefits:

  • Triple‑Sheave Efficiency: Provides high mechanical advantage for heavy lifting and controlled pulling with minimal effort.

  • Closed & Sealed Housing: Protects sheaves and rope from dirt, moisture, and abrasion—suitable for outdoor and rugged environments.

  • Integrated Forged Hook: Heavy‑duty hook enables quick, tool‑free connection to chain links, slings, or structural anchors.

  • High‑Strength Construction: Made from heat‑treated alloy or galvanized steel for durability under repeated heavy loads.

  • Smooth Bearing Operation: Sealed bearings or bushings ensure consistent performance and extended service life.


Heavy Duty Mechanical Lifting Devices Including JTPB F3 Hook Chain Link Closed Triple Wheels Pulley for Material Handling



Model t KN mm
mm kg

HQG3-3.2

 3.2 51.2 456 435 116 127 14 7.7 11 50 >=37 21 - 10

HQL3-3.2

 3.2 51.2 456 435 116 127 14 7.7 11 50 >=37 21 - 14

HQG3-5

 5 80 575 555 152 152 20 11 14 60 >=42 26.5 - 17.5

HQL3-5

 5 80 575 555 152 152 20 11 14 60 >=42 26.5 - 14.5

HQG3-8

 8 128 710 680 176 180 24 12.5 15.5 75 >=56 33.5 - 33

HQL3-8

 8 128 710 680 176 180 24 12.5 15.5 75 >=56 33.5 - 20

HQG3-10

 10 160 810 790 212 245 28 15.5 18.5 85 >=61 37.5 - 53

HQL3-10

 10 160 810 790 212 245 28 15.5 18.5 85 >=61 37.5 - 40.5

HQG3-16

 16 224 960 920 230 233 32 17 20 106 >=81 50 - 70

HQL3-16

 16 224 960 920 230 233 32 17 20 106 >=81 50 - 58

HQG3-20

 20 280 1080 1030 280 258 36 20 23 118 >=90 52.5 - 125

HQL3-20

 20 280 1080 1030 280 258 36 20 23 118 >=90 52.5 - 82

HQG3-32

 32 512 1480 1400 580 240 - 35 38 140 >=106 - - 300

HQL3-32

 32 512 1480 1400 580 240 - 35 38 140 >=106 - - 138

HQD3-3.2

 3.2 51.2 330 - 116 128 14 7.7 11 - - - 23.5 14.5

HQD3-5

 5 80 435 - 152 156 20 11 14 - - - 28 15

HQD3-8

 8 128 515 - 176 186 24 12.5 15.5 - - - 33 20.5

HQD3-10

 10 160 610 - 212 216 28 15.5 18.5 - - - 40 41

HQD3-16

 16 224 680 - 236 233 32 17 20 - - - 42 59

HQD3-20

 20 280 770 - 280 266 36 20 23 - - - 47 83

HQD3-32

 32 448 945 - 364 305 48 26 28 - - - 52 140

HQD3-50

 50 700 1220 - 452 369 56 31 35 - - - 64 300
