Specifications
Brand Name :
JDY
Model Number :
JDY-2000P
Place of Origin :
China
MOQ :
1
Price :
$57142
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
200 per month
Delivery Time :
30days
Packaging Details :
flight case
Antenna Gain :
3±1dBi
Charging Time :
3-4 hours
Max Power Consumption :
≤785W
Battery :
Removable, Swap Time ≤60s
Frequency :
900MHz/1.5Ghz/2.4Ghz/5.8Ghz
Display :
LED indicator for battery and signal status
Jamming Response Time :
≤2 Seconds
Usage Method :
Integrated Single-Soldier Handheld
Jamming Freq :
800MHz~6000MHz
Compliance :
FCC and CE certified
Applicable Scenarios :
Battalion, residential
Jamming Modes :
5 Bands Selectable
Device Dimension :
60cm × 50cm × 45cm
Range :
Detection:1km / Jamming:1.5kg
Transmission Power :
40dBm/Channel
Description

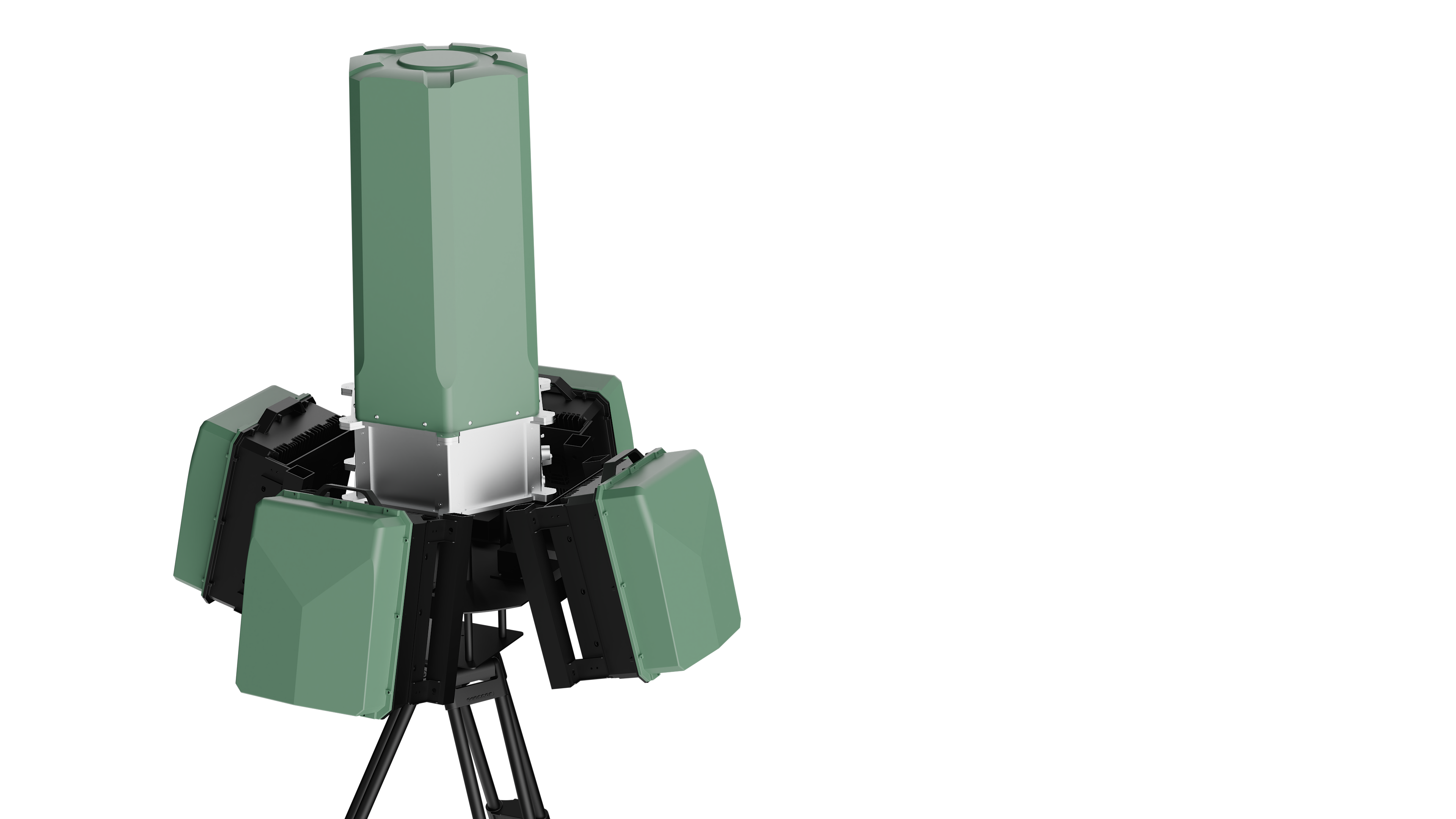

Highly Efficient Fixed Reconnaissance, Strike, Deception, and Counter-UAV Equipment

In modern warfare and security, traditional reconnaissance, strike, deception, and counter-UAV (C-UAV) equipment faces increasing challenges. With the rapid development of UAV technology, traditional defense systems often cannot meet the demands for high efficiency, high precision, and all-weather operation. Therefore, developing highly efficient fixed reconnaissance, strike, deception, and counter-UAV equipment has become an inevitable trend. This equipment can not only effectively respond to various threats but also operate automatically without human intervention, improving ease of use and reliability.

High-efficiency fixed reconnaissance, strike, decoy and counter-drone equipment

Automated Operation Without Human Intervention

One of the most significant features of this equipment is its high degree of automation, enabling it to operate independently without human intervention. Through advanced artificial intelligence algorithms, the system can autonomously complete various tasks related to reconnaissance, strike, deception, and counter-UAV operations. This means that, whether day or night, the equipment can automatically adjust its operating mode based on real-time data analysis and conduct precise strikes or deceptions against intruding UAVs. Simultaneously, automated operation reduces reliance on operators, lowers the risk of human error, and improves the overall system response speed and operational efficiency.

Product Parameter Table
Item Parameter
Operating Mode Reconnaissance, Strike, Deception, Counter-Drone
Detection Range 300MHz-6G
Key Detection Frequency Bands 2.4G/5.8G/400M/800M/900M/1.4G
Detection Range 1-12KM
Positioning Accuracy <10m
Pilot Positioning Accuracy <5m
Response Time ≤0.25s
Jackage Frequency Bands 900M1.5G2.4G5.2G5.8G
Jackage Range >1-5KM
Response Time ≤3s
Deception Signal System GPS/BDS/GLONASS/Galileo Decoy Distance: 1-10KM
Product Dimensions 450*450X*850mm
Packaging Dimensions 960*530*455mm
Product Weight 20KG
Total Product Weight 47KG
Materials and Structural Design Ensure Long-Term Operation in Extreme Environments

To cope with various complex and extreme working environments, this device utilizes high-strength alloy materials and a unique structural design. Whether in extreme environments such as high temperature, low temperature, or sandstorms, the internal components maintain efficient operation. The device's casing is made of corrosion-resistant and high-temperature-resistant materials, ensuring long-term stable operation under harsh natural conditions. Furthermore, the device's internal structure is carefully designed so that the heat dissipation system can quickly dissipate internal heat, preventing overheating and malfunctions, thus ensuring long-term stable operation.

Built-in Alarm System Ensures Timely Response

This device has a built-in efficient alarm system that can monitor the surrounding environment in real time and respond quickly when potential threats are detected. When the equipment detects an unidentified flying object (UFO) or drone approaching, the alarm system will automatically issue a warning signal, notifying operators to take necessary countermeasures. The alarm system not only supports audible and visual warnings but also allows remote alerts via mobile apps and computer terminals, ensuring incidents are addressed immediately. Furthermore, the system supports integration with other security devices to form a more comprehensive protection network.

The equipment has passed multiple international certifications, guaranteeing its quality.

This equipment has passed multiple international certifications, and its quality is recognized globally. It complies with ISO 9001 quality management system certification, CE certification, and other international safety and technical standards, ensuring its internationally leading level in design, manufacturing, and operation. In addition, the equipment has passed special performance tests such as waterproofing, dustproofing, and shock resistance, ensuring stable operation in various extreme environments. Whether in military, aviation, or civilian fields, the equipment's high quality and stability provide users with the most reliable protection.
