6-Channel Drone Jammer for Anti-Drone Industry Wide Voltage Power Supply Low Power Consumption Suitable for Small-to-Medium-Sized Scenarios
6-Channel Drone Jammer for Anti-Drone Industry Wide Voltage Power Supply Low Power Consumption Suitable for Small-to-Medium-Sized Scenarios
6-Channel Drone Jammer for Anti-Drone Industry Wide Voltage Power Supply Low Power Consumption Suitable for Small-to-Medium-Sized Scenarios
6-Channel Drone Jammer for Anti-Drone Industry Wide Voltage Power Supply Low Power Consumption Suitable for Small-to-Medium-Sized Scenarios
6-Channel Drone Jammer for Anti-Drone Industry Wide Voltage Power Supply Low Power Consumption Suitable for Small-to-Medium-Sized Scenarios
6-Channel Drone Jammer for Anti-Drone Industry Wide Voltage Power Supply Low Power Consumption Suitable for Small-to-Medium-Sized Scenarios
6-Channel Drone Jammer for Anti-Drone Industry Wide Voltage Power Supply Low Power Consumption Suitable for Small-to-Medium-Sized Scenarios
6-Channel Drone Jammer for Anti-Drone Industry Wide Voltage Power Supply Low Power Consumption Suitable for Small-to-Medium-Sized Scenarios
Specifications
Place of Origin :
China
MOQ :
1
Price :
＄1890
Payment Terms :
D/A,D/P,L/C,T/T,Western Union,MoneyGram
Supply Ability :
5000 per month
Delivery Time :
30
Channel 1 - 6 :
400MHz ~ 1200MHz
Channel 6 - Output Power :
47dBm (50W)
Supply Voltage :
DC +12V～+28V (supports battery power, battery optional)
Max Power Consumption :
≤600W
Energy Efficiency :
≥50%
Device Dimension :
45cm × 37cm × 22cm
Device Weight :
≤14kg
Power Interface :
Aviation Socket WS20-2
RF Interface :
N-J Type, Impedance 50Ω
Antenna Type :
Omnidirectional FRP Spring Antenna
Antenna Power Capacity :
100W
Antenna Gain :
3±1dBi
Standard Accessories :
Wired Power Box (1PCS), Strong Magnetic Screws (6PCS), Adapters (6PCS)
Applicable Scenarios :
Security for Small-to-Medium-Sized Events, Airspace Control in Scenic Areas, Protection for Corporate Factories, Protection for Outdoor Exhibitions, Security for Cultural Heritage Protection Areas
Description
1. Product Introduction

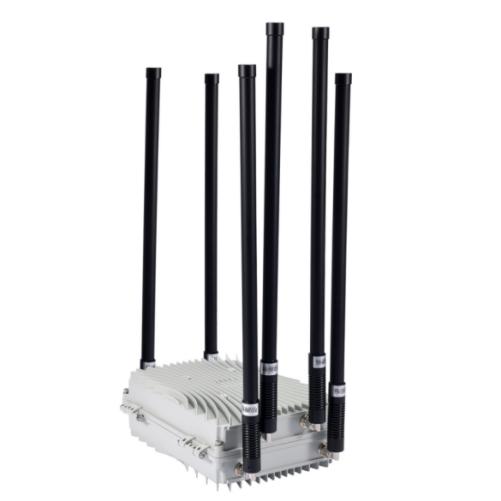

The 6-channel drone jammer is a high-efficiency device specially designed for small-to-medium-sized protection scenarios in the anti-drone industry. With 6 independent jamming channels, it achieves precise frequency coverage from 400MHz to 1200MHz, and each channel delivers a stable output power of 47dBm (50W). It can strongly block the communication link between drones and remote controllers, cut off navigation and image transmission signals, effectively prevent unauthorized drone intrusions, and ensure short-to-medium-range airspace security.

Adopting a wide-voltage DC power supply design (+12V～+28V), the device supports external power supply or optional battery power, flexibly adapting to both fixed deployment (e.g., corporate campuses, cultural heritage protection areas) and mobile protection (e.g., small-to-medium-sized concerts, outdoor exhibitions) scenarios. With a low power consumption of ≤600W and an energy efficiency of ≥50%, it reduces energy consumption while ensuring jamming performance, making it suitable for long-term standby and continuous operation.

In terms of structure, the device has a compact size of only 45cm*37cm*22cm and a weight of ≤14kg, which can be easily carried by a single person, solving the problem of "difficult deployment due to heaviness" of traditional jammers. Equipped with omnidirectional FRP (Fiberglass Reinforced Plastic) spring antennas (gain: 3±1dBi, power capacity: 100W), it provides non-dead-angle signal coverage, further improving jamming stability and effective range. Currently, it is widely used in anti-drone scenarios such as security for small-to-medium-sized events, airspace control in scenic areas, and protection for corporate factory areas.

2. Core Technical Specification Table
No. Category Specific Item Technical Parameters
1 Jamming Channels Channel 1 Operating Frequency: 400MHz～500MHz; Output Power: 47dBm (50W)
1 Jamming Channels Channel 2 Operating Frequency: 500MHz～600MHz; Output Power: 47dBm (50W)
1 Jamming Channels Channel 3 Operating Frequency: 600MHz～730MHz; Output Power: 47dBm (50W)
1 Jamming Channels Channel 4 Operating Frequency: 730MHz～910MHz; Output Power: 47dBm (50W)
1 Jamming Channels Channel 5 Operating Frequency: 910MHz～1100MHz; Output Power: 47dBm (50W)
1 Jamming Channels Channel 6 Operating Frequency: 1100MHz～1200MHz; Output Power: 47dBm (50W)
2 Power Supply Parameters Supply Voltage DC: +12V～+28V (supports battery power, battery optional)
3 Energy Consumption Parameters Max Power Consumption ≤600W
3 Energy Consumption Parameters Energy Efficiency ≥50%
4 Structural Parameters Device Dimension 45cm * 37cm * 22cm
4 Structural Parameters Device Weight ≤14kg
5 Interface Configuration Power Interface Aviation Socket WS20-2
5 Interface Configuration RF Interface N-J Type, Impedance 50Ω
6 Antenna Parameters Antenna Type Omnidirectional FRP Spring Antenna
6 Antenna Parameters Antenna Gain 3±1dBi
6 Antenna Parameters Antenna Power Capacity 100W
7 Standard Accessories Accessory List Wired Power Box (1PCS), Strong Magnetic Screws (6PCS), Adapters (6PCS)
3. Frequently Asked Questions
Q1: What are the core differences between this 6-channel jammer and 8-channel models?
A1: The core differences lie in frequency coverage range, size-weight, and power consumption: ① In terms of frequency, the 6-channel model covers 400MHz-1200MHz (focusing on frequency bands commonly used by mainstream drones), while 8-channel models cover 220MHz-1500MHz (wider coverage); ② In terms of size and weight, the 6-channel model (45*37*22cm, ≤14kg) is more lightweight, while 8-channel models (50*45*27cm, ≤23kg) are heavier; ③ In terms of power consumption, the 6-channel model is ≤600W, while 8-channel models are ≤785W. The 6-channel model is more suitable for mobile deployment in small-to-medium-sized scenarios; if full-frequency protection is required, 8-channel models can be selected.
Q2: The device weighs ≤14kg. Is additional equipment needed for mobile deployment?
A2: No additional equipment is required. The device weighs only 14kg and can be directly carried by one person. With the strong magnetic screws included in the accessories, it can be quickly fixed on vehicle-mounted platforms, the top of security booths, etc. The whole process from unboxing to activation takes only 5-10 minutes, meeting the "rapid response" demand of temporary security scenarios.
Q3: Can the 400MHz-1200MHz frequency band cover mainstream consumer drones?
A3: Yes. Currently, more than 90% of consumer drones on the market (brands such as DJI, Xiaomi) use communication/navigation frequency bands (433MHz, 868MHz, 915MHz, 1.2GHz, etc.) that fall within the 400MHz-1200MHz range, and the device can effectively jam such drones. If coverage of special frequency bands above 1200MHz is needed, please contact the manufacturer for customized expansion.
Q4: What is the approximate battery life in battery-powered mode?
A4: Battery life depends on battery capacity. Taking a common 100Ah/24V lithium battery as an example, the fully charged battery can support the device for about 3-4 hours of continuous operation (calculated based on maximum power consumption of 600W). To extend battery life, backup batteries or external portable power supplies can be used to meet the demand for long-term outdoor protection.
Q5: The RF interface is equipped with 6 adapters. Do they need to be connected to antennas corresponding to each channel?
A5: Yes. Each adapter needs to be connected to an antenna corresponding to one jamming channel to ensure independent signal output of each channel without interference. The adapters are designed with standard N-J type compatibility and can be plugged and unplugged without additional tools, allowing even non-professionals to quickly complete antenna connection.
