JCVISION 43inch Semi-outdoor High brightness display（single side or double side)
JCVISION 43inch Semi-outdoor High brightness display（single side or double side)
JCVISION 43inch Semi-outdoor High brightness display（single side or double side)
JCVISION 43inch Semi-outdoor High brightness display（single side or double side)
JCVISION 43inch Semi-outdoor High brightness display（single side or double side)
JCVISION 43inch Semi-outdoor High brightness display（single side or double side)
JCVISION 43inch Semi-outdoor High brightness display（single side or double side)
JCVISION 43inch Semi-outdoor High brightness display（single side or double side)
JCVISION 43inch Semi-outdoor High brightness display（single side or double side)
JCVISION 43inch Semi-outdoor High brightness display（single side or double side)
JCVISION 43inch Semi-outdoor High brightness display（single side or double side)
JCVISION 43inch Semi-outdoor High brightness display（single side or double side)
Specifications
Place of Origin :
CHINA
Brand Name :
JCVISION
Certification :
CE/ROHS
MOQ :
1
Delivery Time :
10DAYS
Payment Terms :
TT
Response time :
6ms,8ms,5ms,14 (Typ.)(Tr+Td),6.5ms
Type :
TFT,LCD Display,Outdoor Advertising Lcd Display Screen Tv Digital Signage Kiosk
Brightness :
2000cd/m2,450cd/m2,2000nits,1500/m2,500 cd/m2
Application :
Outdoor,Indoor,hotel,airport,exhibition
Input voltage :
AC100~240V 50 /60 HZ,AC 110V~240V,50/60Hz,320W,AC100~240V 50-60 HZ
Viewing angle :
178 /178,89/89/89/89,178°/178°,178 °V /178°H,89°/89°89°/89°(Typical)
Pixel pitch :
0.4845(H)*0.4845 (V),0.4845mm,0.831(H) x 0.831(V),0.08275*0.24825,0.0817(H) X 0.2451(V) mm
Warranty :
1 Year,One Year,2 Years,3 years,12 Months
Color :
16.7M,Black/Silver/white,or be optional,Color,Black
Panel size :
42 Inch,customized,55inch,65 inch,230x105x35mm
Max resolution :
1920*1080,1920(RGB)*1080(FHD),1080P,3840*2160
Product name :
55 Inch High Brightness Outdoor Digital Signage Advertising Display,22-inch Fanless Panel Pc Computer,65inch large outdoor digital signage,Advertising Display,Outdoor advertising screen digital signage outdoor
After-sales service provided :
Video technical support,Online support,Free spare parts,Field installation,commissioning and training
Cpu :
2GHz,A83T,octa core,ARM A17 Quad 2.0GHz,Dual-core
Touch screen :
Multi Points foil Touch,10-Point Capacitive /ir Touch,Touch Foil(optional),IR touch(Capacitive/SAW touch Optional),optional
Material :
Metal Case + Toughened Glass Panel,Cold Rolled Steel,Metal Case+tempered glass,1.2-1.5mm metal plate
Installation :
floor standing,Floor standing or customized
Size :
42~65inch,65",65 inch (other sizes available),50",17-84 Inch Optional
Operating system :
Android 5.1,Android 4.4,X86 Windows7,CF/SD/USB,Android(Windows optional)
Description


JCVISION 43inch Semi-outdoor High brightness display（single side or double side)

JCVISION Technology Inc

43inch Semi-outdoor High brightness display

JCVISION 43inch Semi-outdoor High brightness display（single side or double side)

JCVISION 43inch Semi-outdoor High brightness display（single side or double side)JCVISION 43inch Semi-outdoor High brightness display（single side or double side)


Features

u AppearanceAdopting an industrial-grade structural design concept, it features a one-piece molded frame, a slim and aesthetically pleasing body, simple installation and convenient maintenance, and a unique heat dissipation technology that supports 24/7 operation.

u High Definition: Utilizes an IPS high-definition LCD panel, featuring vibrant colors, high brightness, and supports up to 2160P video and image decoding playback, achieving high-quality image output.

u intelligent:Equipped with an intelligent input and display system, it features a wide range of mainstream ports, powerful audio and video decoding capabilities, automatic signal recognition, simple operation, and meets diverse usage needs.

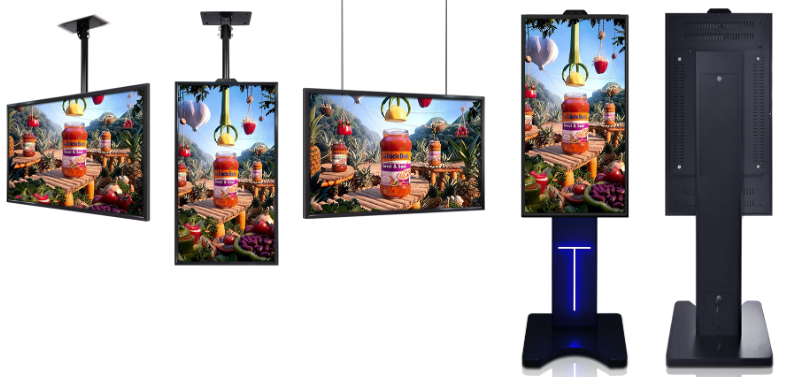

u Scenarios: Supports horizontal/vertical installation, applicable to a wide range of scenarios, and is widely favored by government, education, finance, transportation, hotels, supermarkets, exhibition halls, medical, catering, and other industries.

u High-end: Combining numerous advantages such as aesthetics, high definition, explosion-proof, ease of use, commercial application, and intelligence, it is a high-end commercial display terminal device favored by many industries.

Trade Condition


Model No.

JC-OW-S43A-NT


Display parameters


LCD Grade

New A+ LCD display panel


Panel size

43 inches


resolution

1920*1080


Viewing angle

89/89/89/89


Display area

940.896*529.254mm (H×V)


Display ratio

16:9


Backlight type

E-LDE


Screen brightness

Single side 700nits/1000-3000NITS (option)

Double side normally window side 2500 nits, indoor side 700 nits(potion)


refresh rate

60Hz


Surface treatment

Matte finish (Haze 1%)


Supported colors

16.7M (8-bit)


Fuselage parameters


Available colors

black


Border material

Aluminum profiles


Body material

Cold-rolled steel sheet for hardware (metal spraying)


Border size

5mm


Body size

953.5*544.5*59.5mm (excluding wall mount)


Packaging size

1080*150*677mm


Wall mount bracket

Horizontal/Vertical Universal Version


Hanging hole spacing

400*400


Packaging material

Neutral thickened cardboard box


net weight

11.2KG


Gross weight

13.9KG


Installation method

Wall-mounted/Embedded/Hanging/Floor-mounted


Display System (optional)


Motherboard

Display Solution


Support video

MPEG1/MPEG2/MPEG4/AVI/VOB/MOV/WMV/DIVX/RM/RMVB, support super HD 2160P video


Support picture

JPG/JPEG/ PNG/BMP


Timer

Set time on/off auto


Image rotate

support 90°,180°,270° image rotate


Android System (optional)


Motherboard

RK3566/RK3576/RK3588


Operating system

11.0/14.0/13.0


Main frequency

1.8G HZ/2.2HZ/2.4HZ


Memory

2G/4G/8G (Optional)


Storage

32G/64G/128G(Optional)


Input/output

RJ45,HDMI out,USB*2,audio,TFcard, and option for HDMI IN


Windows System (optional)


Cpu

I5 10th Gen/I5/I7 (optional)


Operating system

Win10/ Win11


Memory

4G/8G/16G (Optional)


Storage

128/256G /512G/1T SSD (Optional)


Input/output

RJ45,HDMI out,USB2.0,USB3.0,audio


System Functions

Language selection

Supports English, Chinese, and multiple languages.


Video Decoding

Highest support2160PVideo and image decoding and playback


Power-on method

Automatic start upon power-on, remote control on/off


Signal recognition

Automatically identify signal input source


hibernation function

Automatically enters sleep mode when no signal input.


Idle animation

Customizable standby screen


Boot screen

Customizable boot timeLOGO


Remote control function

Supports remote control operation


USBFunction

upgrade/Multimedia playback


Audio function

Built-in two high-quality tweeters


screen rotation

Follow the display orientation of the input host.


Video support

480P, 480p, 576P, 576p, 720p, 1080P, 1080p, 4Kx2K@60Hz


Electrical performance


Rated voltage

AC110-220V


standby power

≤1W


Rated power

≦167W


Operating temperature

Temperature -20℃~70℃/humidity10%RH~90%RH


Storage environment

Temperature -20℃~70℃/humidity10%RH~90%RH


Dimensions(Show separately)
