JCVision 55-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
JCVision 55-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
JCVision 55-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
JCVision 55-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
JCVision 55-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
JCVision 55-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)

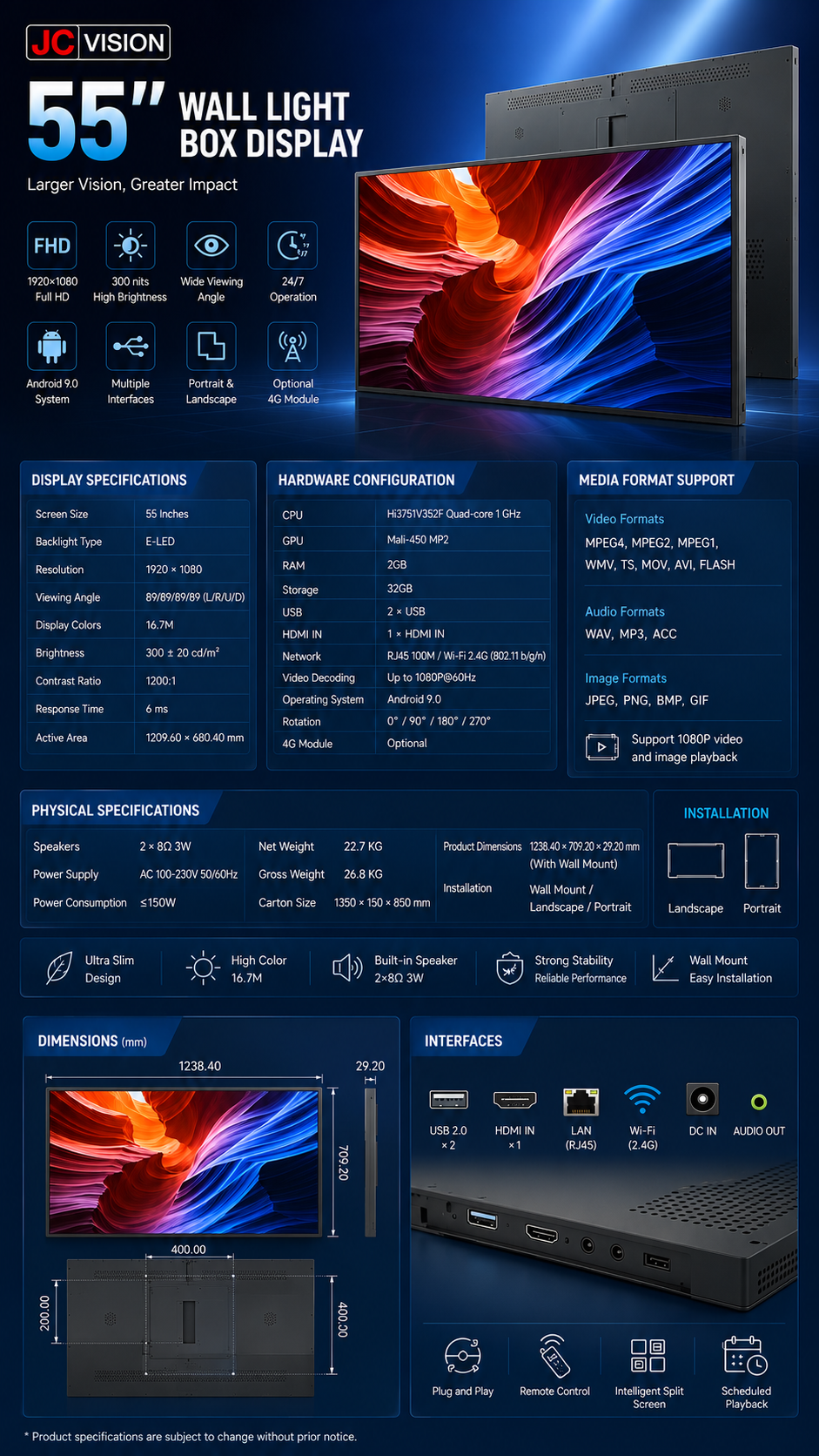

Specifications
Brand Name :
JCVision
Model Number :
JC-55ILB
Certification :
CE ROHS
Place of Origin :
CHINA
MOQ :
1
Price :
600
Payment Terms :
T/T
Supply Ability :
50
Delivery Time :
5-8WORK DAYS
Packaging Details :
CARTON BOX
Brand :
JCVision
Model :
HD-352C
Product Name :
55" Wall Light Box Display
Screen Size :
55 inches
Backlight Type :
E-LED
Resolution :
1920 × 1080 (Full HD)
Aspect Ratio :
16:9
Viewing Angle :
89°/89°/89.6° (L/R/U/D)
Display Colors :
16.7M
Brightness :
300 ± 20 cd/m²
Contrast Ratio :
1200:1
Response Time :
6 ms
Active Display Area :
1209.60 × 680.40 mm (H × V)
Chipset :
Hisilicon Hi3751V352F Quad-Core, up to 1.0 GHz
GPU :
Mali-450 MP2
Operating System :
Android 9.0
RAM :
2 GB
Storage :
32 GB
Video Decoding :
Up to 1080P @ 60Hz
Image Rotation :
0° / 90° / 180° / 270° manual
USB Ports :
2 × USB 2.0
HDMI :
1 × HDMI In
Ethernet :
RJ45 100M Ethernet
Wi-Fi :
2.4G (802.11 b/g/n)
4G Module :
Optional
Audio Out :
1 × Audio Out
DC In :
1 × DC In
Video Formats :
MPEG4, MPEG2, MPEG1, WMV, TS, MOV, AVI, FLASH
Audio Formats :
WAV, MP3, ACC
Image Formats :
JPEG, PNG, BMP, GIF
Speakers :
2 × 8Ω 3W
Power Input :
AC 100–230V, 50/60Hz
Power Consumption :
≤ 150W
Net Weight :
22.7 kg
Gross Weight :
26.8 kg
Carton Dimensions :
1350 × 150 × 850 mm
Product Dimensions :
1238.40 × 709.20 × 29.20 mm (including wall mount
Installation :
Wall-mounted (Landscape / Portrait)
Operation :
24/7 Continuous Use
Special Features :
Plug and Play, Remote Control, Intelligent Split Screen, Scheduled Playback
Description

Product Name: JCVision 55-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)

Product Description:

Make a bold statement with the JCVision 55-inch Wall Light Box (Square Edge), a premium indoor digital signage solution designed for large-scale visual communication in retail stores, hotels, restaurants, and public spaces.

The 55-inch E-LED backlit display features 1920×1080 Full HD resolution, 300 cd/m² brightness, 1200:1 contrast ratio, and 89° ultra-wide viewing angles (L/R/U/D), delivering clear and vivid visuals to a broad audience. The 6ms response time ensures smooth video playback.

Powered by the Hisilicon Hi3751V352F quad-core chipset (1 GHz) and Mali-450 MP2 GPU, it runs Android 9.0 with 2GB RAM and 32GB storage. It supports virtually all major video formats (MPEG4, WMV, MOV, AVI, etc.) and offers 1080P@60Hz video decoding.

Connectivity includes 2× USB, 1× HDMI IN, RJ45 Ethernet, and 2.4G Wi-Fi. An optional 4G module is available. The display supports both horizontal and vertical wall mounting, making it perfect for digital posters, menu boards, promotions, and informational signage.

Key Specifications:

JCVision 55-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)

  • Screen Size: 55 inch

  • Resolution: 1920×1080

  • Brightness: 300±20 cd/m²

  • Response Time: 6ms

  • OS: Android 9.0

  • RAM / Storage: 2GB / 32GB

  • Power: ≤150W

  • Dimensions (with wall mount): 1238.40 × 709.20 × 29.20 mm

  • Weight: 22.7 kg (net)
