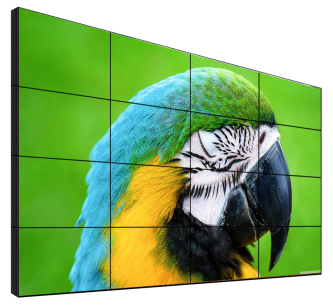

46 Inch LCD Video Wall Display with 1920 by 1080 Resolution 178 Degree Viewing Angle Anti Glare Surface and Consumption for Energy Saving
46 Inch LCD Video Wall Display with 1920 by 1080 Resolution 178 Degree Viewing Angle Anti Glare Surface and Consumption for Energy Saving
46 Inch LCD Video Wall Display with 1920 by 1080 Resolution 178 Degree Viewing Angle Anti Glare Surface and Consumption for Energy Saving
46 Inch LCD Video Wall Display with 1920 by 1080 Resolution 178 Degree Viewing Angle Anti Glare Surface and Consumption for Energy Saving
Specifications
Model Number :
DV460FHM-NV0
Brand Name :
JCVision
Place of Origin :
China
Description

JCVision 46inch video wall .pdf

Video Wall Solution Diagram 46inch
46 Inch LCD Video Wall Display with 1920 by 1080 Resolution 178 Degree Viewing Angle Anti Glare Surface and Consumption for Energy Saving
Panel Specifications
Active Screen Diagonal 46"
Pixel Pitch(WxH) 0.49005 (H) × 0.49005 (V) mm
Panel Dimension(WxHxD) (H) × 0.49005 (V) mm Active Area
Total Bezel Width 3.5mm
Aspect Ratio 16:9
Physical Resolution 1920*1080
Backight System D-LED
Luminance(nits) 500cd/㎡
Contrast 4000:1 (typ.)
Input & Output ports HDMI IN*1, USB IN*1, RS232 IN*1, IR IN*1, RS232 OUTPUT*2, Audio*1, VGA*1
Viewing Angle 178°/178° (H/V)
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=158W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0℃～55℃
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
