JCVISION Conference LCD Smart Interactive Whiteboard Anti Glare Glass Eshare I7 Video
JCVISION Conference LCD Smart Interactive Whiteboard Anti Glare Glass Eshare I7 Video
JCVISION Conference LCD Smart Interactive Whiteboard Anti Glare Glass Eshare I7 Video
JCVISION Conference LCD Smart Interactive Whiteboard Anti Glare Glass Eshare I7 Video
Specifications
Brand Name :
JCHUB
Model Number :
JC-H65K
Certification :
CE, FC, RosH
Place of Origin :
Guangdong, China
MOQ :
1 Unit
Price :
EXW. USD998
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
4000Units/M
Delivery Time :
3-7 working days
Packaging Details :
Standard export carton box
Product name :
Multi Size Inch Interactive Smart Board
Screen type :
LCD
Resolution :
3840*2160(4K)
Cpu :
i3/i5/i7 optional
Viewing angle :
178°(H) / 178°(V)
Touch type :
Infrared touch
Description

JCVISION Anti-glare Glass Eshare i7 Video Conference Smart Whiteboard LCD Interactive Flat Panel

JCVISION Conference LCD Smart Interactive Whiteboard Anti Glare Glass Eshare I7 Video

JCHUB INTERACTIVE WHITEBOARD/SMART BOARD
Model
JC -H55K
JC-H65K
JC-H75K
JC-H86K
Backlight
LED
Panel Brand
BOE/LG
Screen size (diagonal)
55"
65"
75"
86"
Active area (mm)
1209.6*680.4
1428.48*803.52
1650.24*928.26
1913.0*1084.0
Aspect Ratio
16:9
Resolution
3840*2160
Colors
1.07 billion colors
Brightness
300cd/m2
350cd/m2
350cd/m2
350cd/m2
Interface
Front Side:USD2.0*1,USB3.0*1,TOUCH USB*1,HDMI*1 Rear Side: RS232*1,EARPHONE OUT*1,RJ45*1,PC Audio*1,VGA*1,COAX*1,AV
in*1,YPBPR*1,AV out*1,DP*1,HDMI in*2,Touch USB*1, USB2.0*2,USB3.0*1,TF*1
Outputs (Speakers)
10W x 2
Wall Bracket
YES
Input Voltage
100-240V AC
Power consumption
Maximun< 250W
Standby Mode<0.5W
Maximun< 250W
Standby Mode<0.5W
Maximun< 300W
Standby Mode<0.5W
Maximun< 450W
Standby Mode<0.5W
TOUCH PANEL
Glass surface
4mm Tempered glass with Anti-glare
Touch supported
IR touch,20points touch,10 points writing
Writing tools
Pen or finger
Response Time
7ms
Cursor speed
125points/s
Precision
2mm
Front button
Power
Wi-Fi
Integrated
Android System
CPU: Quad-Core A55 1.9GHz ,GPU:Mali-G31 MP2 Android 9.0, Ram 2G DDR3, Rom 16G. (Option:4G+32G)
Software
White board Software,Annotation Software
Screen hot key support
Yes
OPS Slot
Yes
Panel Life Expectancy
50,000 Hours
Accessories
Manual, Touch Pen, Remote Control,Power cable.
VESA Hole (mm)
400*300
400*300
600*500
600*600
Unit Dimension (mm)
1278*783*100
1497*906*100
1722*1032*104
1964*1168*104
Packing Dimension (mm)
1375*185*900
1580*185*1025
1865*230*1195
2110*230*1340
Net Weight (kg)
46.4
46.4
60
79
Gross Weight (kg±2)
58.3
58.3
76
98
OPS (windows system)
Chipset CPU
Intel Core i3 /i5 /i7 (optional)
RAM
DDR3 / DDR4 (optional)
SSD
128G or 256G (optional)
Graphic
Inter HD video
Wireless
support wifi
Interface
USB2.0*4,USB3.0*2,VGA*1,HDMI*1,RJ45×1,WIFI ANTENNA*2,EARPHONE OUT*1,MIC-IN*1,POWER*1
OS
Windows 7/ Windows XP/ Windows 2000 / Vistal / Linux UNIX / Windows 8.1(X86)/ Windows 10 (Optional)
Remark
OPS is optional and have different configuration, you can check our seperate OPS price list for your reference.

JCVISION Conference LCD Smart Interactive Whiteboard Anti Glare Glass Eshare I7 VideoJCVISION Conference LCD Smart Interactive Whiteboard Anti Glare Glass Eshare I7 VideoJCVISION Conference LCD Smart Interactive Whiteboard Anti Glare Glass Eshare I7 Video

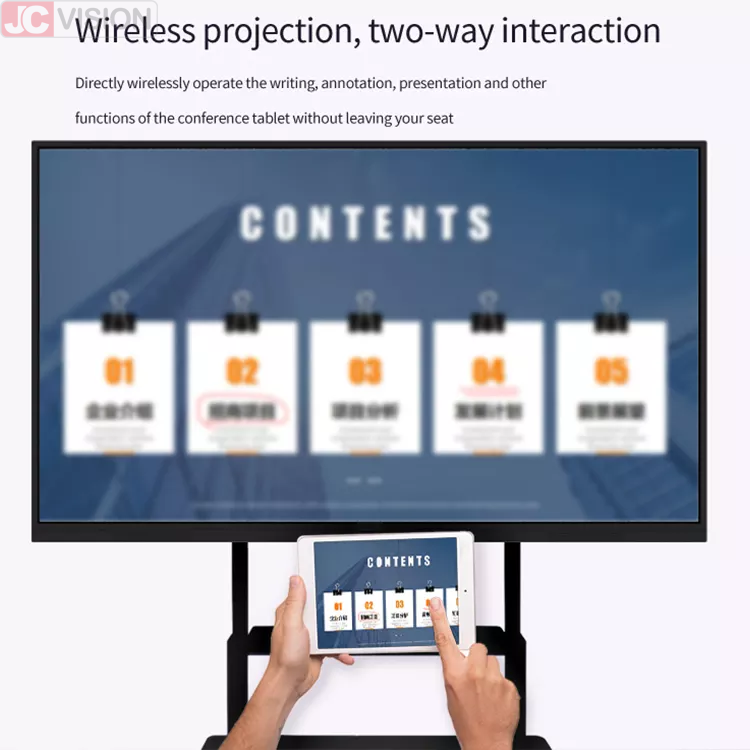

Multi-screen interaction:
1. Use the mobile phone to display content on the screen with a single key, and easily interact with each other.
2. Use a wireless screener to pair the PC with the conference tablet. Share the content of the meeting and get it started

For more details, please contact us.
