Specifications
Brand Name :
JCVISION
Model Number :
JC-SP168
Certification :
CE/CCC/FCC/ROHS/ISO9001
Place of Origin :
SHENZHEN, CHINA
MOQ :
1unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 Unit/Units per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden box
Production Capacity :
5000 units/month
Dimension(L*W*H) :
415*366*540mm
Voltage :
110-240V
Forming size :
200*200*300mm
Printing Size :
200*200*300 mm
Forming Precision :
±0.1-0.3 mm
Nozzle Diameter :
0.4 mm(Optional)
File Format :
STL/Gcode/dae/amf/bmp/jpg
Automatic Grade :
Automatic
Plate Type :
Flatbed Printer
Filament Diameter :
1.75 mm
Layer Thickness :
0.05-0.3 mm
Precision XY axis :
0.0128 mm Z axis:0.0025 mm
Supporting Material :
PLA/TPU/PETG
Description

JCVISION New design high precision 3D printing size 200*200*300 mm large 3d printer

Product Features:

1. Linear guideway: low firction and more accuracy.

2. With LED light: feel free to check the print process.
3. 4.3''Full-color touch screen: as convenient as smart phone operation.
4. Magnetic removable extruder, easier and more efficient to change the nozzle.
5. Magnetic removable print platform: Easier for model removal without damage.
6. Power failure protection: Resume 3D print from where the last print stops due to power outage.
7. Dual motor feeding system,make printing more precise, excellent function for complicated model printing.
8. Filament run-out reminder: A friendly reminder for filament changing due to filament shortage or breakage.
9. Automatic bed leveling & automatic lifting filament tray: intelligent control of bed levelling and more time-saving for filament feeding.
Specification:
Advantages Mixed-color/Dual-color/Layered color/Single color supported /single nozzle output two color mixing/Hot bed/Smart leveling
Printing size 200*200*300mm(480mm)
Nozzle number Dual feed single nozzle
Layer thickness 0.05-0.30mm
Forming precision ±0.1-0.3mm
Nozzle diameter 0.4mm
Printing material PLA/TPU/PHA
Filament diameter 1.75mm
Slicing software CURA-Chinese/English
Support File Format stl;Gcode;obj;dae;amf;bmp;jpg
XY axis precision 0.0128mm
Z axis precision 0.0025mm

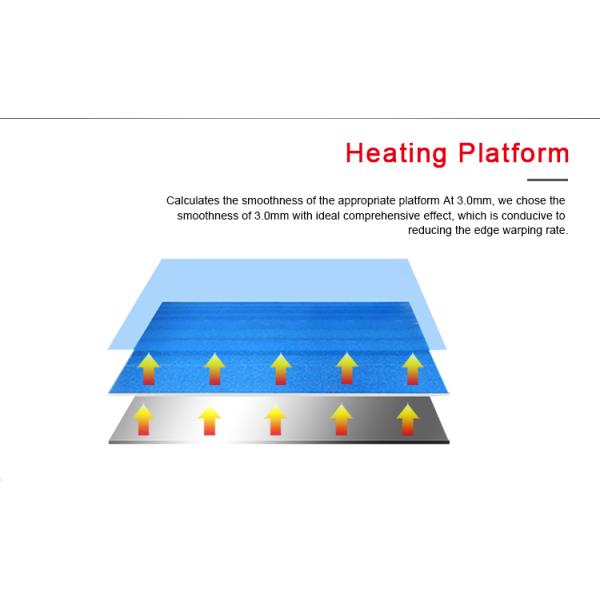

Hot bed temperature 0-120℃
Nozzle temperature 0-250℃
SD card offline printing Support U Disk printing
LCD 3.5 inch color touch screen
Working voltage 24V
Input voltage 220V/110V
Average power/maximum power 200W/320W
Product size 360*360*534mm
Packing size 505*445*660mm
Machine weight 22kg
Packing weight 31kg
Environmental requirement 15-35℃,Humidity20-50%
Quality certification CE,FCC,ROHS
