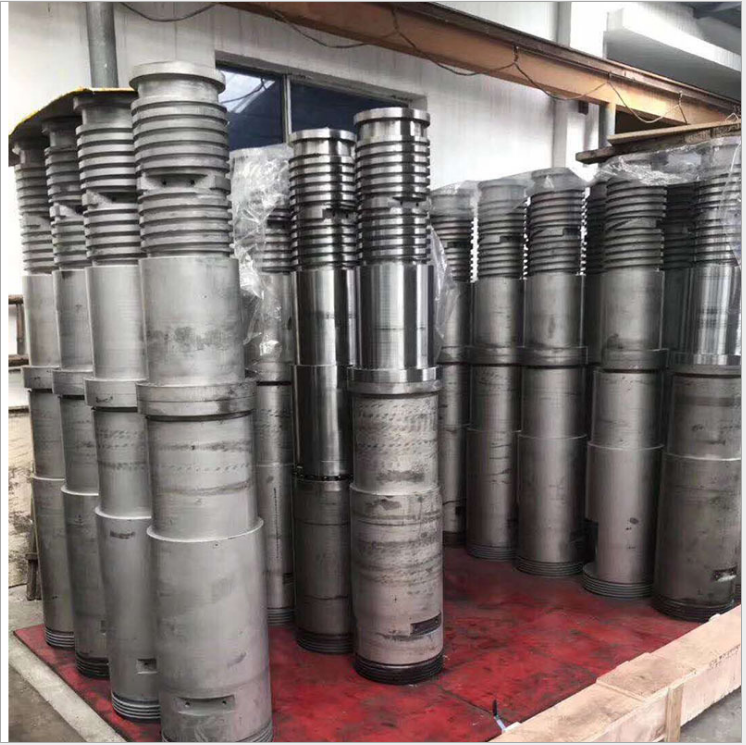

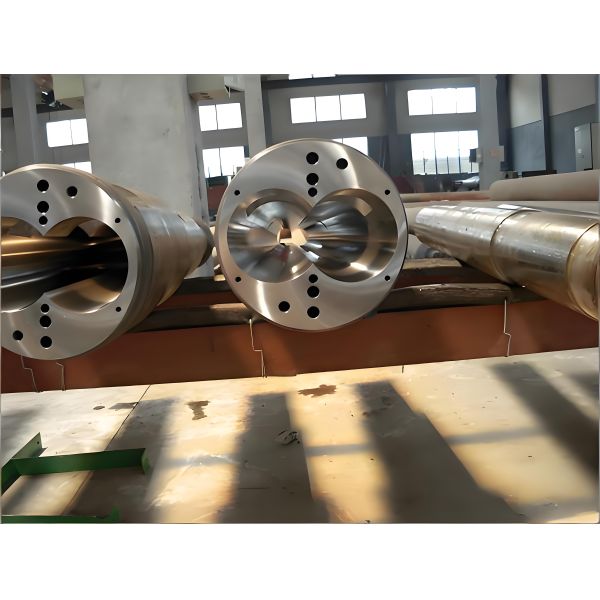

JCD Series 92/188 Ion Nitrided Conical Twin Screw Barrel | Large Capacity (PPR/WPC)
JCD Series 92/188 Ion Nitrided Conical Twin Screw Barrel | Large Capacity (PPR/WPC)
JCD Series 92/188 Ion Nitrided Conical Twin Screw Barrel | Large Capacity (PPR/WPC)
JCD Series 92/188 Ion Nitrided Conical Twin Screw Barrel | Large Capacity (PPR/WPC)
JCD Series 92/188 Ion Nitrided Conical Twin Screw Barrel | Large Capacity (PPR/WPC)
JCD Series 92/188 Ion Nitrided Conical Twin Screw Barrel | Large Capacity (PPR/WPC)
Specifications
Brand Name :
JCD
Place of Origin :
Dongguan, Guangdong, China
MOQ :
1
Price :
To be Quoted
Payment Terms :
T/T,Western Union
Supply Ability :
20 sets per month
Delivery Time :
35 working days
Product Alias :
Conical Twin-Screw Barrel, PVC Profile Extruder Twin Barrel
Screw Type :
Intermeshing Conical Twin-Screw
Barrel Material :
38CrMoAlA, SACM645 + Bimetallic Coating (For High Calcium PVC)
Screw Material :
38CrMoAlA, SACM645 + Tungsten Carbide Spraying
Surface Treatment :
Ion Nitriding, Bimetallic Overlay Welding, Tungsten Carbide Spraying
Applicable Machine Type :
PVC Profile Extruder, PPR Pipe Extruder, SPC Flooring Extruder, Wood-Plastic Extruder
Applicable Raw Materials :
High Calcium PVC, PPR, SPC Flooring Material, Wood-Plastic Composite (WPC)
Screw Diameter :
45/65, 65/132, 80/156, 92/188 (Tapered Diameter, Customizable)
Parameter Customization :
Customizable per Requirements
After-sales Service :
Technical Support, Maintenance
Description
JCD Series 92/188 Ion Nitrided Conical Twin Screw Barrel | Large Capacity (PPR/WPC)

JCD Series 92/188 Ion Nitrided Conical Twin Screw Barrel | Large Capacity (PPR/WPC)

This JCD 92/188 ion nitrided conical twin screw barrel is specially designed for large-capacity extrusion lines, mainly used for PPR pipe production and WPC wood-plastic composite extrusion.

Adopting high-quality alloy steel with advanced ion nitriding treatment, it has high surface hardness, good toughness and strong wear resistance, ensuring stable plasticizing and high output under long-term large-flow production.

Key Specifications
Parameter Detail
Model JCD Series 92/188 (Tapered Diameter: 92mm/188mm)
Material 38CrMoAlA / SACM645 Alloy Steel
Surface Treatment Ion Nitriding
Hardness HRC62°–68°
Nitriding Depth 0.4mm–0.7mm
L/D Ratio 28:1–35:1
Applicable Equipment Large Capacity Conical Twin Screw Extruder
Applicable Materials PPR, WPC Wood-Plastic Composites, PE Wood Powder Composites

JCD Series 92/188 Ion Nitrided Conical Twin Screw Barrel | Large Capacity (PPR/WPC)

Frequently Asked Questions (FAQ)

Q: Why is this 92/188 model for large-capacity production?

A: Its large tapered diameter and optimized screw structure provide stronger conveying capacity and higher output, matching large-scale extrusion lines.

Q: Is it suitable for WPC with wood powder and filler?

A: Yes. Ion nitrided surface greatly improves wear resistance, ensuring long service life when processing abrasive WPC materials.

Q: Can we use it for PPR pipe extrusion?

A: Yes. It provides stable plasticizing and uniform melting, which is widely used in high-quality PPR pipe production.

JCD Series 92/188 Ion Nitrided Conical Twin Screw Barrel | Large Capacity (PPR/WPC)

With precision machining and ion nitriding technology, JCD 92/188 conical twin screw barrel delivers high output, stable plasticizing and long service life. It is the ideal choice for large-capacity PPR pipe and WPC extrusion production lines.
