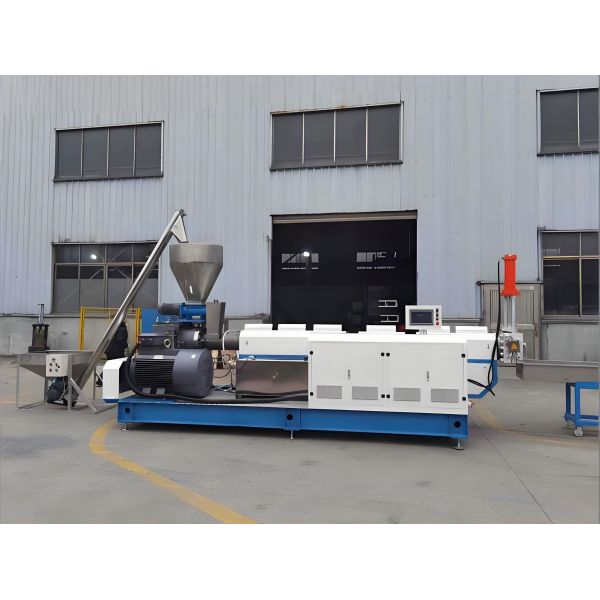

The JCD90 high-output single screw extruder is a heavy-duty, high-efficiency processing equipment exclusively optimized for plastic regeneration pelletizing, tailored for medium and large-sized plastic recycling plants and processing enterprises with batch production demands. Boasting a 90mm large-diameter screw, 32:1 L/D ratio, and 90kw high-power motor, it achieves a stable high output of 100-220kg/h, perfectly matching the large-batch regeneration granulation needs of various waste plastics. Equipped with a recycled material-specific screw design, industrial-grade high-torque gearbox, and super wear-resistant screw & barrel, it effectively handles waste plastics with impurities and moisture, featuring excellent plasticizing, mixing and dehumidification effects. Its robust structure, 24h continuous operation capability and professional regeneration granulation optimization make it the core equipment for large-scale plastic recycling and regeneration production.

Note: All parameters of JCD90 can be customized according to large-batch plastic regeneration pelletizing production demands and raw material characteristics.

• High-output Design for Batch Regeneration Pelletizing

  100-220kg/h stable high output with optimized screw push efficiency, specially designed for large-batch plastic recycling granulation, greatly improving the production efficiency of waste plastic regeneration and meeting the batch production needs of medium and large recycling plants.

• Recycled Material-specific Screw for Optimal Plasticizing

  Customized screw design for waste plastic regeneration, with optimized spiral groove and mixing section, effectively plasticizing waste plastics with impurities, uneven moisture and different melting points, avoiding material caking and ensuring uniform pellet quality.

• Industrial-grade High-torque Gearbox for 24h Continuous Operation

  Heavy-duty high-torque integrated gearbox with reinforced transmission structure, realizing low-noise, vibration-free and stable 24h continuous operation, adapting to the high-efficiency production rhythm of plastic recycling enterprises and reducing production downtime.

• Super Wear-resistant Screw & Barrel for Waste Plastic Processing

  Screw and barrel undergo enhanced special hardening treatment with higher hardness and wear resistance, effectively resisting abrasion from sand, metal and other impurities in waste plastics, extending the service life of core components by more than 50% compared with ordinary models.

• Dual-stage Vacuum Exhaust for Dehumidification & Purification

  Equipped with professional dual-stage vacuum exhaust port (optional), efficiently discharging a large amount of moisture, waste gas and volatile substances generated during the melting of waste plastics, thoroughly solving the problem of hollow and loose pellets in regeneration production, and ensuring compact and high-quality finished pellets.

• Robust Heavy-duty Structure for Industrial Site Reliability

  Full-steel thickened frame with reinforced fixed installation structure, no displacement or shaking during high-speed and high-output operation, adapting to the harsh working environment of plastic recycling plants and ensuring long-term stable operation.

• Flexible Configuration for Various Recycled Raw Materials

  According to the type of waste plastics (PE/PP film, PVC pipe, ABS plastic parts, mixed waste plastics) and impurity content, optional parent-child machine, preheating hopper and other configurations, realizing targeted processing of different recycled raw materials.

• Energy-saving & Cost-effective for Batch Production

  Optimized power matching and screw transmission efficiency, low energy consumption per unit output; the whole machine is easy to disassemble and maintain, reducing the later operation and maintenance cost of large-batch regeneration production.

The JCD90 high-output single screw extruder is a professional equipment for large-batch plastic regeneration pelletizing, widely applicable to medium and large-sized plastic recycling plants and processing enterprises for:

• Waste PE/PP Regeneration Pelletizing: Large-batch granulation of waste PE/PP plastic films, woven bags, plastic barrels and pipe materials, with excellent plasticizing and dehumidification effects.
• Waste Hard Plastic Regeneration: Batch regeneration granulation of waste ABS, PS, PC engineering plastic parts, plastic profiles and leftover materials, ensuring the strength and quality of regenerated pellets.
• Waste PVC Regeneration Pelletizing: Targeted processing of waste PVC pipes, door and window profiles and plastic sheets, with optional temperature control optimization to meet PVC processing characteristics.
• Mixed Waste Plastic Pelletizing: Efficient processing of mixed waste plastics with certain impurities, realizing resource reuse of mixed waste plastics.
• High-output Virgin Plastic Pelletizing: Concurrent large-batch granulation production of virgin PE/PP/PVC resins, realizing dual-use of one machine for regeneration and raw material processing.
• Modified Regenerated Plastic Production: Batch production of filled and toughened modified regenerated plastics, improving the added value of regenerated plastic pellets.
