Doosan Solar 300LC-V DH300-7 DE08 Engine Turbocharger 65.09100-7082
Doosan Solar 300LC-V DH300-7 DE08 Engine Turbocharger 65.09100-7082
Doosan Solar 300LC-V DH300-7 DE08 Engine Turbocharger 65.09100-7082
Doosan Solar 300LC-V DH300-7 DE08 Engine Turbocharger 65.09100-7082
Doosan Solar 300LC-V DH300-7 DE08 Engine Turbocharger 65.09100-7082
Doosan Solar 300LC-V DH300-7 DE08 Engine Turbocharger 65.09100-7082
Doosan Solar 300LC-V DH300-7 DE08 Engine Turbocharger 65.09100-7082
Doosan Solar 300LC-V DH300-7 DE08 Engine Turbocharger 65.09100-7082
Doosan Solar 300LC-V DH300-7 DE08 Engine Turbocharger 65.09100-7082
Doosan Solar 300LC-V DH300-7 DE08 Engine Turbocharger 65.09100-7082
Doosan Solar 300LC-V DH300-7 DE08 Engine Turbocharger 65.09100-7082
Doosan Solar 300LC-V DH300-7 DE08 Engine Turbocharger 65.09100-7082
Specifications
Brand Name :
PNC
Model Number :
DX300LCA
Place of Origin :
China
MOQ :
1PC
Price :
USD 265-285/SET
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000 set/month
Delivery Time :
1-3 working days
Packaging Details :
Standard Export Carton
Machine :
Doosan Excavator
Model :
Solar 300LC-V, DH300-7, DE08
Part No :
65.09100-7072, 65.09100-7082
Condition :
100% brand new
Warranty :
3 months
Packing :
Colorful hard carton
Weight :
10-12kgs
Product name :
S300LC-V Turbo. DH300-7 Turbocharger, DX300LCA Turbo
Description

65.09100-7082 Turbocharger for Doosan Solar 300LC-V DH300-7 DE08 Engine Turbo

Description

S300LC-V Turbo. DH300-7 Turbocharger, DX300LCA Turbo

Application

Doosan Solar Excavator

Model

Solar 300LC-V, DH300-7, DE08

Part No.

65.09100-7072, 65.09100-7082

Quality

100% new, China made

Weight

10-12kgs

Packing

Pack into carton box

MOQ

1PC

Lead time

About 1-3 working days

Payment

TT, Western union, Paypal, Paysend, RMB

Warranty

3 Months

Shipping Port

Huangpu Old Port, Shenzhen Yantian,Guangzhou

Models comprising the spare part 65.09100-7082 TURBOCHARGER ASS`Y
CRAWLER EXCAVATOR
SOLAR 300LC-7A; SOLAR 300LC-V;
FORESTRY MACHINE
SOLAR 300LL;
EXCAVATOR
TXC300-1;


Aggregates comprising the spare part 65.09100-7082 TURBOCHARGER ASS`Y
SOLAR 300LL ENGINE PARTS / TURBO CHARGER & OIL PIPE
SOLAR 300LC-7A ENGINE PARTS / TURBO CHARGER & OIL PIPE
SOLAR 300LC-V ENGINE PARTS / TURBO CHARGER & OIL PIPE
SOLAR 300LC-V ENGINE PARTS / TURBO CHARGER & OIL PIPE
TXC300-1 ENGINE PARTS / TURBO CHARGER & OIL PIPE

Doosan Solar 300LC-V DH300-7 DE08 Engine Turbocharger 65.09100-7082

Tips: To ensure client buy correct parts from China, parts details like model, part no., photo or size are required.

more details more good, all these infos are aim to supply you CORRECT parts to fit well with machine.

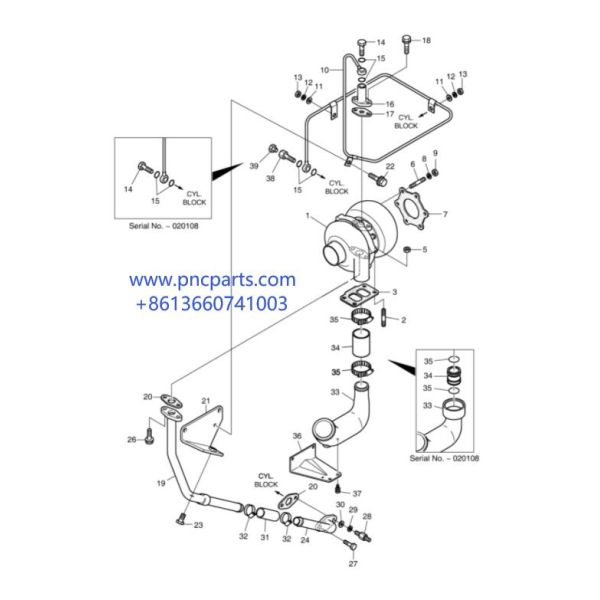

Parts on group SOLAR 300LC-V TURBO CHARGER & OIL PIPE:

Pos. Part No Qty Parts name Comments
1. 65.09100-7072 [1] TURBOCHARGER ASS'Y
1. 65.09100-7082 [1] TURBOCHARGER ASS'Y
10. 65.05701-5345 [1] PIPE;OIL
10. 65.05701-5453 [1] PIPE;OIL
11. 06.15010-2311 [2] WASHER
12. 06.16731-2107 [2] WASHER
13. 06.11063-8214 [2] . NUT
14. 06.78144-2403 [2] HOLLOW SCREW M12X1.5
14. 06.78144-2403 [1] HOLLOW SCREW M12X1.5
15. 06.56190-0704 [4] . RING;SEAL
16. 65.98131-5003 [1] ADAPTER FLANGE ASS`Y
17. 65.96601-0046A [1] GASKET;OIL PIPE ADAPTER 65.96601-0046B
17. 65.96601-0046B [1] GASKET;OIL PIPE ADAPTER
18. 06.01913-3114 [2] BOLT ASS`Y M8X22
19. 65.05701-5335 [1] PIPE;OIL
2. 65.90201-0073 [4] . BOLT;STUD
20. 65.96601-0045A [2] GASKET 65.96601-0067
20. 65.96601-0067 [2] GASKET;T/C OIL RETURN
21. 65.05740-5001A [1] BRACKET
22. 06.01923-3111 [1] BOLT, M8X16 65.90020-0068
22. 65.90020-0068 [1] BOLT ASS'Y M8X16
23. 06.01923-3217 [1] BOLT ASS`Y M10X30
24. 65.05701-5336A [1] OIL PIPE ASS`Y(T/C-C/B)
26. 06.01913-3112 [2] BOLT ASS`Y M8X18
26. 06.01913-3114 [2] BOLT ASS`Y M8X22
27. 06.01913-3113 [1] .. BOLT ASS`Y M8X20
28. 65.90201-0075 [1] BOLT;SPACER
29. 06.16731-2107 [1] WASHER
3. 65.09901-0018A [1] GASKET
30. 06.15010-2311 [1] WASHER
31. 65.96301-0327 [1] HOSE;RUBBER 65.96301-0327A
31. 65.96301-0327A [1] HOSE;RUBBER
32. 06.67020-0105 [2] CLAMP
33. 65.09411-5041 [1] INLET
33. 65.09411-5053 [1] INLET
34. 65.08220-0002A [1] PIPE;CONNECTION
34. 65.96301-0279 [1] HOSE;RUBBER
35. 65.96501-0058 [2] O-RING
35. 06.67020-0109 [2] CLAMP;HOSE
36. 65.09440-0010 [1] BRACKET
37. 06.01923-3215 [2] BOLT ASS`Y M10X25
38. 65.98150-0002 [1] ADAPTER
39. 65.90320-0022 [1] PLUG SCREW
5. 06.11024-9202 [4] NUT M10X1.25 65.90535-0001
5. 65.90535-0001 [4] NUT
6. 65.90201-0072 [6] BOLT;STUD M10X1.5X30
7. 65.09901-0012 [1] GASKET
8. 06.16731-2108 [6] WASHER;SPRING
9. 06.11063-8215 [6] NUT;HEX. M10

Doosan Solar 300LC-V DH300-7 DE08 Engine Turbocharger 65.09100-7082

Warranty Statement:

1. Warranty Type: We will replace the product which have quality problem.


2. Warranty Period: Supply 3 months warranty for the products from the date of arrival. Customer should check the items according to the order list after arrival.

Contact with us and offer the data, photos of the problem items

3. You need to pay for the replacement charge for following condition:

* Wrong Order from customer.
* Natural Disasters cause the damage.
* Error installation, improper use.
* The machine work over time and over load.
* Lost by any condition.
* Human element destroyed.
* Corrode with rust during stock and running.
* Warranty Expired.
