YN10V00023F1 Excavator Hydraulic Pump
YN10V00023F1 Excavator Hydraulic Pump
YN10V00023F1 Excavator Hydraulic Pump
YN10V00023F1 Excavator Hydraulic Pump
YN10V00023F1 Excavator Hydraulic Pump
YN10V00023F1 Excavator Hydraulic Pump
YN10V00023F1 Excavator Hydraulic Pump
YN10V00023F1 Excavator Hydraulic Pump
Specifications
Brand Name :
PNC
Model Number :
E215
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000 set/month
Delivery Time :
1-3 working days
Packaging Details :
Standard Export MDF Wooden Box
Price :
USD 2015~2075/SET
Nc No :
NC-HP108
Model :
E215, EH215, SK200-6E,SK210-6ES
Part No :
YN10V00023F1, YN10V00023F2, YN10V00022F3
Condition :
100% new
Warranty :
6 months
Stock :
Rich stock
Weight :
140-170 kgs
Product name :
E215 PTO Hydraulic Pump, K3V112DTP Piston pump
Description

YN10V00023F1 Excavator Hydraulic Pump

E215 Kobelco Excavator Hydraulic Pump K3V112DTP PTO Hydraulic Pump YN10V00023F1

Description

E215 Main Pump Hydraulic, K3V112DTP Hydraulic Pump for Excavator

Application

E215 Excavator

Model

E215, EH215, SK200-6E

Part No.

YN10V00023F1, YN10V00023F2, YN10V00022F3

Quality

100% new, China aftermarket or Korea

Weight

135-175 kgs

Packing

Pack into wooden

MOQ

1PC

Lead time

About 1-3 working days

Payment

TT, Western union, Paypal, Paysend, RMB

Warranty

6 Months

Shipping Port

Huangpu Old Port, Shenzhen Yantian,Guangzhou

Tips: To ensure client buy correct parts from China, parts details like model, part no. pump code, photo or size are required.

more details more good, all these infos are aim to supply you CORRECT parts to fit well with machine.

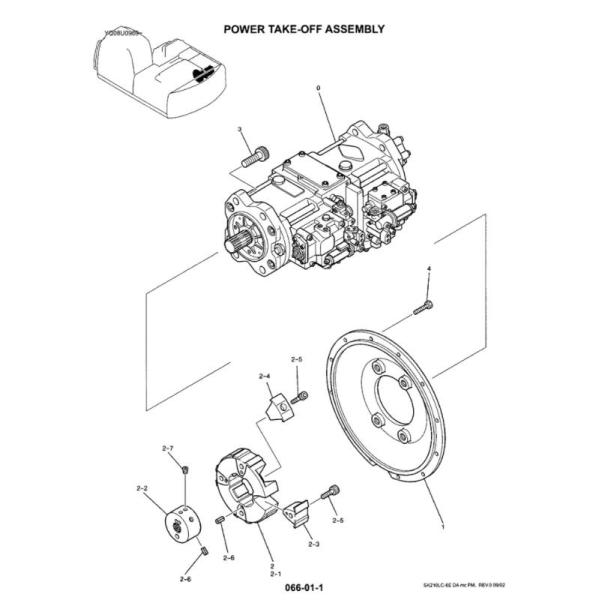

Kobelco / E215 K3V112DTP Hydraulic Pump Parts Catalog:

YN10V00023F1 Excavator Hydraulic Pump

Parts on your SK200-6E excavator hydraulic pump:

Pos.

Part No

Qty

Parts name

Comments

0.

YN10V00023F1

[1]

PUMP

KOB PUMP ASSY, HYDRAULIC, Remarks: See CPM Superseded by part number: YN10V00023F2

0.

YN10V00023F2R

[1]

REMAN-HYD PUMP

RAC SK210LC-6E DYNAMIC ACERA EXCAVATOR ASN YQ08U0969, PUMP ASSY, HYDRAULIC, Reman for New PN YN10V00023F1

0.

YN10V00023F2C

[1]

CORE-HYDRAULIC PUMP

RAC Return Number

0.

YN30P00011F1

[1]

PTO

KOB TAKE-OFF ASSY, POWER

1.

YN30P01010P1

[1]

BRACKET

KOB BRACKET

2.

YN30P01009F1

[1]

COUPLING

KOB COUPLING

2-1.

YN30P01009S001

[1]

RUBBER

KOB RUBBER

2-2.

YN30P01009S002

[1]

HUB

KOB HUB

2-3.

YN30P01009S003

[4]

INSERT

KOB INSERT A

2-4.

YN30P01009S004

[4]

INSERT

KOB INSERT R

2-5.

YN30P01009S005

[8]

CAPSCREW

KOB SCREW CAPSCREW, Remarks: (M16X45mm)

2-6.

ZP26D05010

[4]

PIN

KOB Roll -- OD 05 x 10mm Long

2-7.

YN30P01009S007

[2]

SCREW

KOB SETSCREW, Remarks: (M16X18mm)

3.

ZS23C20055

[4]

SCREW,Hex Socket Head, M20 x 55mm

KOB M20x2.5x55mm

4.

ZS18C10030

[11]

SCREW,Hex, M10 x 30mm

KOB M10x1.50x30mm

YN10V00023F1 Excavator Hydraulic Pump

Payment &Packing &Shipping:

A). TT transfer, Western Union, Paypal, Moneygram are acceptable.

B). Light goods inner box is neutral white with an strong outer box.Heavy goods wooden with standard packing.If you have legally registered patent,

we can pack the goods in your branded boxes after getting your authorization letters.

C). Delivery time: depends on items you buy, most electric parts can shiped within 1-3 working days.

Warranty Statement:

1. Warranty Type: We will replace the product which have quality problem.


2. Warranty Period: Supply 3 months warranty for the products from the date of arrival. Customer should check the items according to the order list after arrival.

Contact with us and offer the data, photos of the problem items

3. You need to pay for the replacement charge for following condition:

* Wrong Order from customer.
* Natural Disasters cause the damage.
* Error installation, improper use.
* The machine and reducer work over time and over load.
* Lost by any condition.
* Human element destroyed.
* Corrode with rust during stock and running.
* Warranty Expired.
