420 00127 719753 Hydraulic Repair Parts DH220 5 K3V112DT EPPR Valve
420 00127 719753 Hydraulic Repair Parts DH220 5 K3V112DT EPPR Valve
420 00127 719753 Hydraulic Repair Parts DH220 5 K3V112DT EPPR Valve
420 00127 719753 Hydraulic Repair Parts DH220 5 K3V112DT EPPR Valve
420 00127 719753 Hydraulic Repair Parts DH220 5 K3V112DT EPPR Valve
420 00127 719753 Hydraulic Repair Parts DH220 5 K3V112DT EPPR Valve
420 00127 719753 Hydraulic Repair Parts DH220 5 K3V112DT EPPR Valve
420 00127 719753 Hydraulic Repair Parts DH220 5 K3V112DT EPPR Valve
Specifications
Brand Name :
PNC
Model Number :
JCB JS220
Place of Origin :
China
MOQ :
1PC
Price :
USD 145-165/PC
Payment Terms :
T/T, Western Union, Paypal
Delivery Time :
1-3 working days
Packaging Details :
Carton box
Supply Ability :
1000pcs/months
Nc No. :
NC-HR013
Model No. :
DH220-5, K3V112DT
Part No. :
420-00127, 719753
Solenoid no. :
MC609-7421120, SKC5-G24-106-1
Brand :
Korea quality
Warranty :
3 months
Weight :
2.5-6.5kgs
Product name :
JS220 Prop Valve, DH220-5 Eppr Valve, K3V112DT Eppr Valve
Description

420 00127 719753 Hydraulic Repair Parts DH220 5 K3V112DT EPPR Valve

719753 DH220-5 Prop Valve JCB JS220 EPPR Valve Hydraulic Pump Repair Parts

Description JCB EPPR Valve, DH220-5 Prop Valve, K3V112DT Hydraulic Pump EPPR Valve
Application DH220-5 Excavator
Model DH220-5, K3V112, JCB JS220
Part No. 420-00127, 719753 (solenoid MC609-7421120, SKC5-G24-106-1)
Quality China made, Korea
Weight 2.5-6.5kgs
Packing Carton box, color box
MOQ 1 pc
Lead time About 1-3 working days
Payment TT, Western union, Paypal, Paysend
Warranty 3 Months
Shipping Port Huangpu Old Port, Shenzhen Yantian,Guangzhou

Doosan parts catalog:

SOLAR 200W-V
MAIN PUMP » VALVE;PROPORTIONAL 719753
SOLAR 210W-V
MAIN PUMP » VALVE;PROPORTIONAL 719753
SOLAR 210W-V
MAIN PUMP » VALVE;PROPORTIONAL 719753
SOLAR 225LC-V
MAIN PUMP » VALVE;PROPORTIONAL 719753
SOLAR 225LC-V
MAIN PUMP » VALVE;PROPORTIONAL 719753
SOLAR 230LC-V
MAIN PUMP » VALVE;PROPORTIONAL 719753
SOLAR 250LC-V
MAIN PUMP » VALVE;PROPORTIONAL 719753
SOLAR 250LC-V
MAIN PUMP » VALVE;PROPORTIONAL 719753
SOLAR 255LC-V
MAIN PUMP » VALVE;PROPORTIONAL 719753
SOLAR 255LC-V
MAIN PUMP » VALVE;PROPORTIONAL 719753
SOLAR 330LC-V
MAIN PUMP » VALVE;PROPORTIONAL 719753

420 00127 719753 Hydraulic Repair Parts DH220 5 K3V112DT EPPR Valve

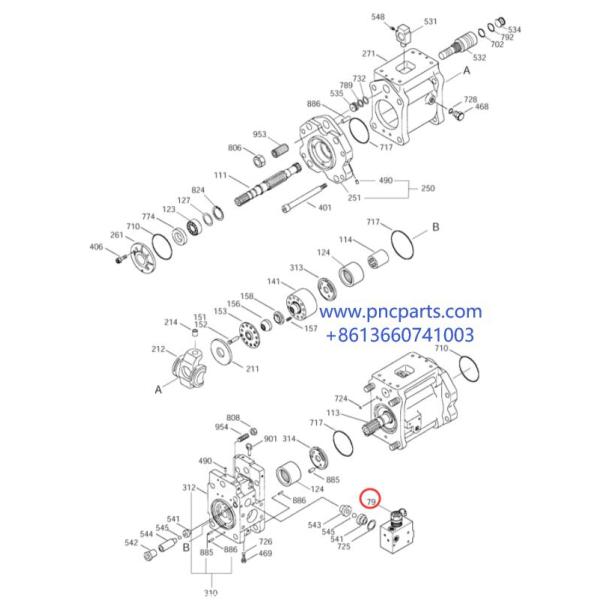

Parts on DH220-5 Group Main Pump:

Pos. Part No Qty Parts name Comments
*. 2401-9223KT [1] SEAL KIT;MAIN PUMP+REG.
*. 720777-PH [1] CYLINDER ASS'Y(R)
*. 720778-PH [1] CYLINDER ASS'Y(L)
*. 704543A [2] PISTON & SHOE ASS'Y
*. 717008 [2] SWASH PLATE ASS'Y
*. 717005 [2] TILTING PIN ASS'Y
*. 704550A [2] CHECK 1 ASS'Y
*. 704544A [2] CHECK 2 ASS'Y
-. 401-00356A [1] MAIN PUMP
111. 124568 [1] SHAFT;DRIVING(F)
113. 124569 [1] SHAFT;DRIVING(R)
114. 113783 [1] COUPLING;SPLINE
123. 219362 [2] BEARING;ROLLER
124. 219363 [2] BEARING;SPACER
127. 113784 [4] BEARING;SPACER
141. 137491 [1] BLOCK;CYLINDER
141. 137491 [1] BLOCK;CYLINDER
151. *NA00796 [18] PISTON
152. *NA01140 [18] PISTON
153. 115786 [2] PLATE;PUSH
156. 121437 [2] BUSH;SPHERICAL
157. 113787 [18] SPRING;CYLINDER
158. 113789 [2] SPACER
211. 113790 [2] PLATE;SHOE
212. 113780 [1] PLATE;SWASH
214. 218550 [1] BUSH;TILTING
250. 718424 [1] SUPPORT KIT
251. 113791 [2] SUPPORT
261. 113792 [1] COVER;SEAL(F)
271. 113794 [2] CASING;PUMP
310. 707849 [1] VALVE BLOCK KIT
312. 113795 [1] BLOCK;VALVE
313. 115798 [1] PLATE;VALVE(R)
314. 115799 [1] PLATE;VALVE(L)
401. 113797 [8] BOLT;SOCKET M20x210
406. 200846 [4] BOLT;SOCKET M8X20
468. 108847 [3] PLUG;VP
469. 108848 [2] PLUG PF1/8
490. 224308 [21] PLUG
531. 113807 [1] PIN;TILTING
532. 113798 [2] PISTON;SERVO
534. 113799 [2] STOPPER(L)
535. 113800 [2] STOPPER(S)
541. 113706 [2] SEAT
541. 113706 [2] SEAT
543. 113705 [2] STOPPER 1
544. 113703 [2] STOPPER 2
545. 200166 [2] BALL;STEEL
545. 200166 [2] BALL;STEEL
548. 113380 [1] PIN;FEEDBACK
702. 220019 [2] O-RING 1BG35
710. 204452 [2] O-RING 1BG95
717. 201639 [4] O-RING 1BG145
724. 201765 [16] O-RING 1BP8
725. 201689 [5] O-RING 1BP11
726. S8000145 [2] O-RING 1BP14
728. 201721 [3] O-RING 1BP24
732. 220016 [2] O-RING 1BP18
774. 212231 [1] SEAL;OIL TCV40V
789. 203480 [2] RING;BACK-UP T2P18
79. 719753 [1] VALVE;PROPORTIONAL
792. 203418 [2] RING;BACK-UP T2G45
806. 201557 [2] NUT M16
808. 102048 [2] NUT M20
824. 202606 [2] RING;SNAP
885. 113801 [2] PIN D8X12L
886. 200678 [2] PIN;SPRING
901. 212033 [2] BOLT;EYE
953. 118892 [2] SCREW;SET M16X30L
954. 113803 [2] SCREW;ADJUST

420 00127 719753 Hydraulic Repair Parts DH220 5 K3V112DT EPPR Valve

Payment &Packing &Shipping:

A). TT transfer, Western Union, Paypal, Moneygram are acceptable.

B). Light goods inner box is neutral white with an strong outer box.Heavy goods wooden case with standard packing.If you have legally registered patent,

we can pack the goods in your branded boxes after getting your authorization letters.

C). Delivery time: depends on items you buy, most electric parts can shiped within 1-3 working days.

D). DHL /Fedex /UPS /TNT/ARMEX/SF Express ,etc. normal express shipping way for small cargo.Russia,Kazakhstan, Ukraine Russia Special Line,

Bangladesh,Myanmar,Vietnam ect, competitive shipping way no need you do customs clearance.Door to Door.

420 00127 719753 Hydraulic Repair Parts DH220 5 K3V112DT EPPR Valve

420 00127 719753 Hydraulic Repair Parts DH220 5 K3V112DT EPPR Valve

Warranty Statement:

1. Warranty Type: We will replace the product which have quality problem.


2. Warranty Period: Supply 3 months warranty for the products from the date of arrival. Customer should check the items according to the order list after arrival.

Contact with us and offer the data, photos of the problem items

3. You need to pay for the replacement charge for following condition:

* Wrong Order from customer.
* Natural Disasters cause the damage.
* Error installation, improper use.
* The machine and reducer work over time and over load.
* Lost by any condition.
* Human element destroyed.
* Corrode with rust during stock and running.
* Warranty Expired.

FAQ :

Q1: How can i make payment ?

A : Bank transfer, Western union, Paypal, Paysend, or RMB.
bank transfer take 2-3days, while we can arrange order once received the remittance copy.

Q2: How fast you can do shipment?

A: Stock items take 1-2days, no stock items 5-7 working days. It depends on the items and the quantity of your order. We will try best to ship goods on time,

won't let you and your client down.

Q3: If we dont find what we want on your website, what should we do?

A: talk with us directly on whatsapp, email, wechat, or phone, we will check inquirys asap. excavator parts have thousands kinds, it's not possible to post

all production online.

Q5. Do your product been tested before delivery?

A: Yes, all product been tested to make sure they are qualified to sell.

Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we value every customer, no matter order amount small or big, with grateful for your trust.
