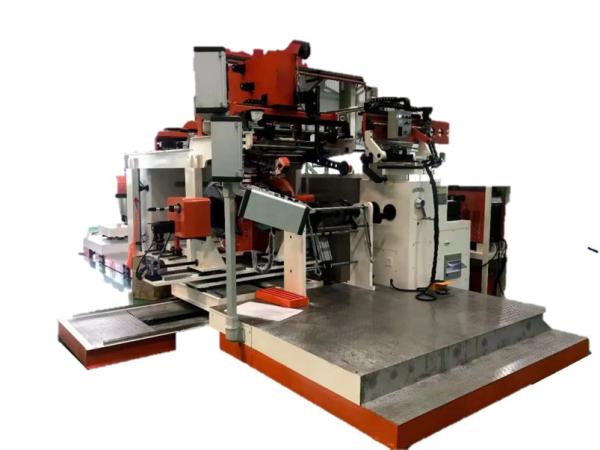

DHR-6-0630 Automatic Winding Machine for Amorphous (Silicon Steel) Triangular Core with High and Low Pressure Integration and 5KW Power

Specifications

MOQ :

Price :

3000

Model NO. :

DHR-6-0630

Outer Diameter :

< 600mm

Axial Height :

<800mm

Coil Form :

Circular, Oblong, Elliptical, Rectangular

Wire Specification :

Enameled Wire

Dimensions :

900*900*900

Production Capacity :

60000PCS/Year

Winding Speed :

0-280r/min

Total Power :

5KW

Wire Range :

Φ 0.3 to Φ 4mm, flat wire ≤ 3x12mm

Payoff Rack :

Double ended flat wire and a set of round wires

Bearing Shaft :

Φ 36x450mm

Transformer Capacity :

50KVA-630KVA

Control System :

PLC and servo motor

Material :

Amorphous (silicon steel)

Description

Product Description:

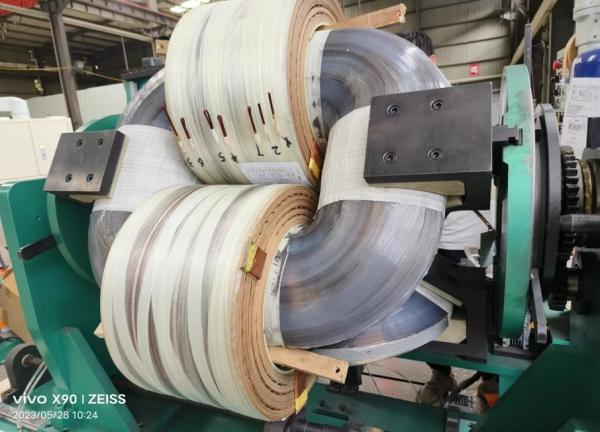

The utility model relates to an automatic and intelligent multi-function winding product which is specially used for winding the core coil of amorphous (silicon steel) triangular coiling core transformer. Suitable for 50KVA-630KVA amorphous (silicon steel) triangular coil core transformer low-voltage foil coil and high-voltage coil production.
My Company:

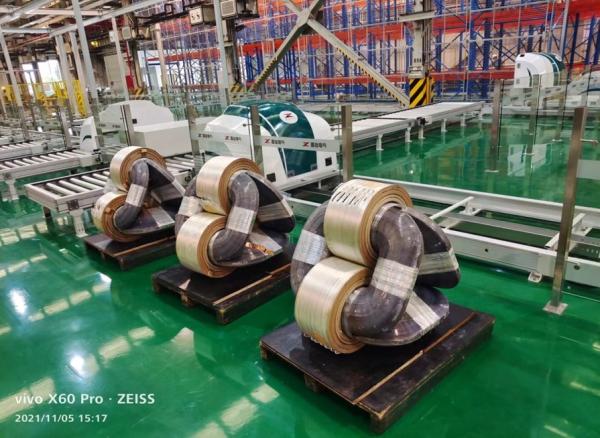

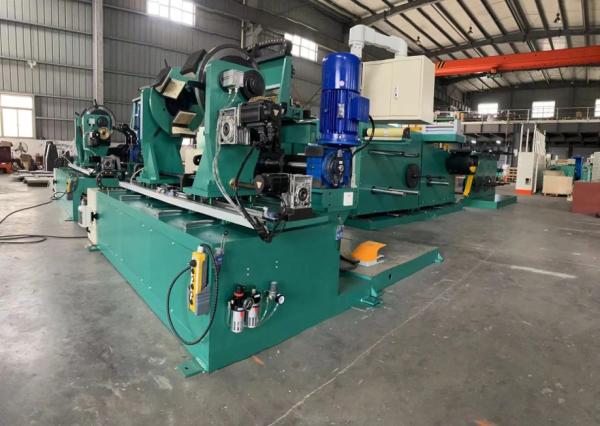

Main products (suitable for new energy) : Foil winding machine, automatic high pressure winding machine, triangular three-dimensional core foil winding machine, amorphous triangular three-dimensional core high and low pressure integrated automatic winding machine, triangular three-dimensional coiling core (silicon steel, amorphous) slitting and winding machine and other transformer special production equipment; Amorphous
115 invention patents, utility model patents and software Copyrights
Purpose:
This equipment is suitable for winding circular, elliptical, oblong, rectangular power transformers, transformers, reactances.
The control part of the device coil adopts a PLC and servo motor system, which has a high level of automation and is particularly suitable for the winding production of amorphous high-voltage coils.

Outer diameter of wire coil: ≤ 600mm

Axial height of coil: ≤ 800mm

Coil form: circular, oblong, elliptical, rectangular

Wire specification: enameled wire( Φ 0.3 to Φ 4mm), flat wire ≤ 3x12mm

Payoff rack: double ended flat wire and a set of round wires

Payoff frame material bearing shaft: Φ 36x450mm

Winding speed: 0-280r/min

Total power: 5KW
