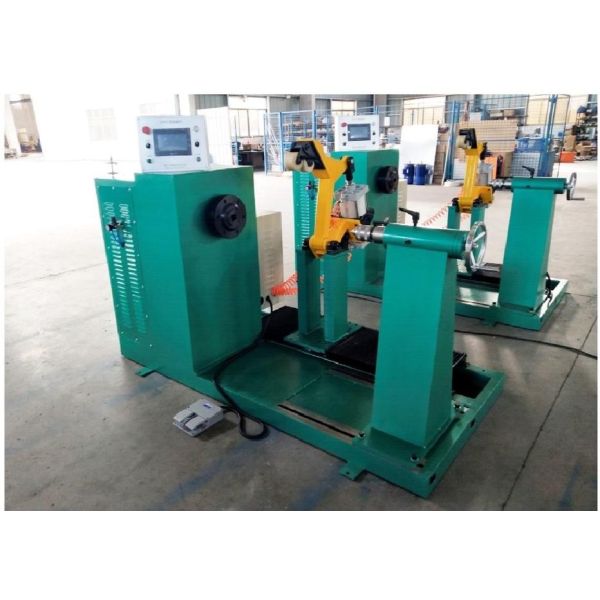

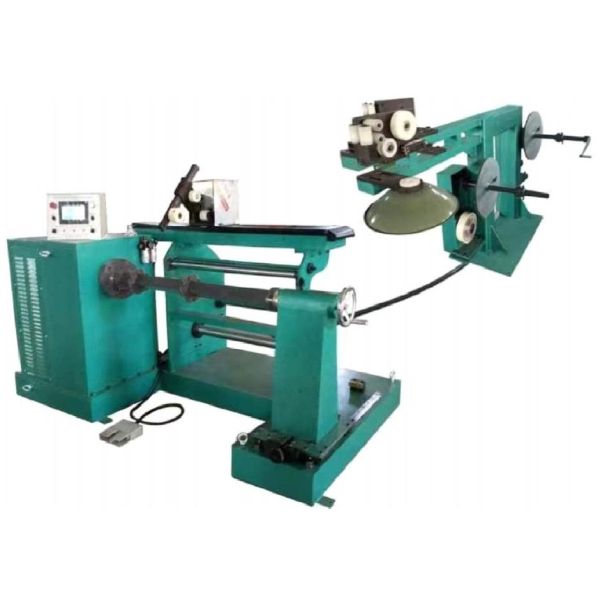

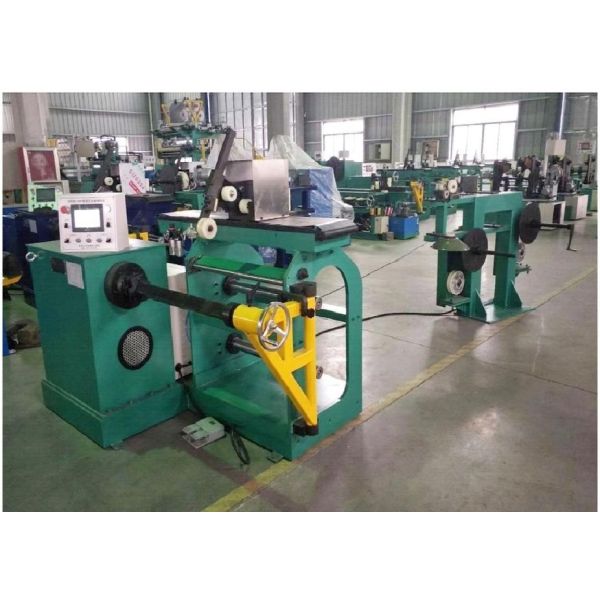

Self-Impacted Low-Voltage Transformer Winding Machine for 50KVA-630KVA with PLC and Servo Motor System

Specifications

MOQ :

Price :

3000

Model NO. :

DHR-1T/2T

Outer Diameter :

< 600mm

Axial Height :

<800mm

Coil Form :

Circular, Oblong, Elliptical, Rectangular

Wire Specification :

Enameled Wire

Dimensions :

900*900*900

Production Capacity :

60000PCS/Year

Control System :

PLC and servo motor

Transformer Capacity :

50KVA-630KVA

Wire Coil Diameter :

< 600mm

Coil Height :

<800mm

Material Compatibility :

Amorphous, Silicon Steel

Automation Level :

High

Winding Type :

Low-voltage foil, High-voltage coil

Core Type :

Triangular coiling core

Description

Product Description:
The utility model relates to an automatic and intelligent multi-function winding product which is specially used for winding the core coil of amorphous (silicon steel) triangular coiling core transformer. Suitable for 50KVA-630KVA amorphous (silicon steel) triangular coil core transformer low-voltage foil coil and high-voltage coil production.
My Company:
Main products (suitable for new energy) : Foil winding machine, automatic high pressure winding machine, triangular three-dimensional core foil winding machine, amorphous triangular three-dimensional core high and low pressure integrated automatic winding machine, triangular three-dimensional coiling core (silicon steel, amorphous) slitting and winding machine and other transformer special production equipment; Amorphous
115 invention patents, utility model patents and software Copyrights
Purpose:
This equipment is suitable for winding circular, elliptical, oblong, rectangular power transformers, transformers, reactances.
The control part of the device coil adopts a PLC and servo motor system, which has a high level of automation and is particularly suitable for the winding production of amorphous high-voltage coils.
