Jbocnt Group High Voltage 150A High Current Energy Storage System Connector Stackable Energy Storage Connector Suitable For Energy Storage Lithium Battery Pack

The design of this connector has multiple advantages

What is the size?

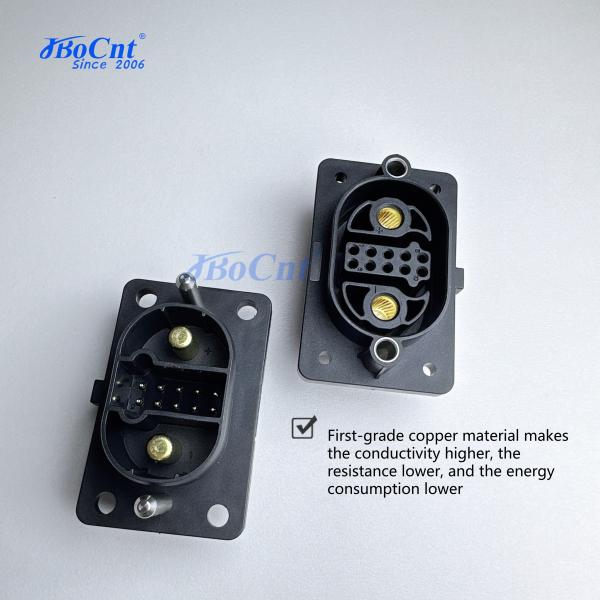

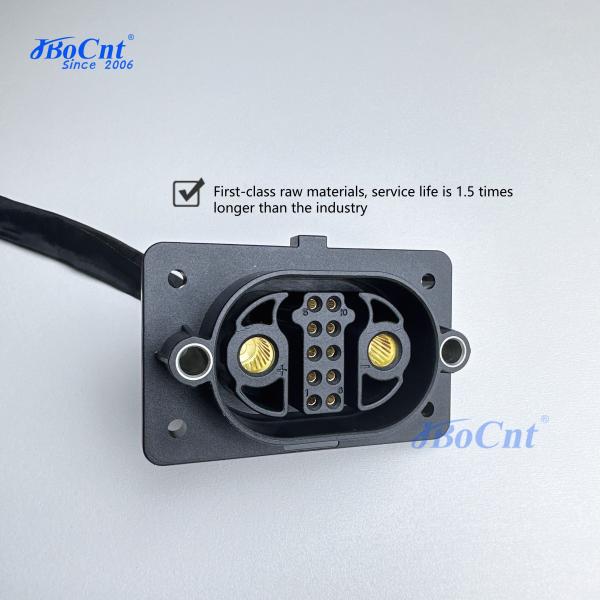

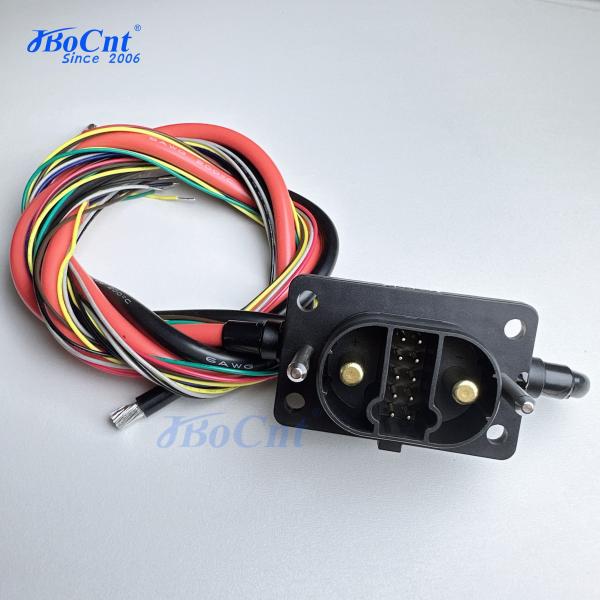

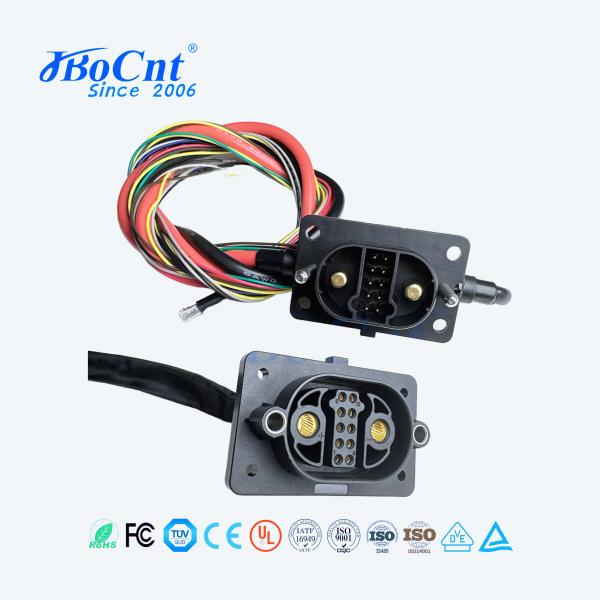

I. Overview of the AC150A 2+10 Energy Storage Stacking Connector

The AC150A 2+10 Energy Storage Stacking Connector is a high-performance connector developed to address these challenges. It utilizes a "2+10" design architecture, with two main contacts designed to carry high current, ensuring power supply during high-load conditions such as starting and accelerating. Ten auxiliary contacts handle signal transmission, temperature monitoring, and safety protection, enabling intelligent management. The "AC" in the AC150A name indicates its compatibility with both AC and DC applications, while the "150A" design refers to its maximum current carrying capacity, sufficient to meet the battery swapping needs of most high-performance electric vehicles.

II. Technical Innovations and Features

1. High Current Carrying Capacity: Through optimized contact materials and structural design, the 2+10 connector can stably transmit currents up to 150A, effectively reducing heat generation caused by poor contact and ensuring efficient energy transfer between the battery pack and the vehicle.

2. Quick Battery Swap Design: The guide pin design makes the connector easy to install and remove, significantly reducing battery swapping time and improving the efficiency of electric vehicles. Furthermore, a sophisticated locking mechanism ensures a secure connection during battery swapping, preventing accidental disconnection.

3. Intelligent Monitoring and Protection: Built-in sensors monitor battery status in real time, including key parameters such as temperature and voltage. Upon detecting an anomaly, protection mechanisms are immediately triggered, effectively preventing safety hazards such as short circuits and overheating.

4. High Reliability and Durability: Made of high-quality materials and undergoing rigorous environmental compatibility testing, the connectors ensure stable operation in extreme weather conditions, extending their service life.

III. Application Scenarios and Advantages

The AC150A 2+10 Energy Storage Stacking Connector is widely used in electric vehicles such as electric buses, logistics vehicles, and shared bikes, which require frequent battery swapping or high energy density. Its efficient and safe battery swapping solution not only improves electric vehicle operating efficiency and reduces maintenance costs, but also promotes the widespread adoption of electric vehicles and the concept of green travel.

For operators, rapid battery swapping reduces vehicle idle time due to charging waits, improving vehicle turnover. For users, the on-the-go swapping model greatly facilitates daily commutes and enhances the user experience. Furthermore, intelligent monitoring and management systems enable real-time monitoring of battery health, helping to prevent accidents and ensure user safety.

Our customers

FAQ

‌1. Q: Are you a factory or a trading company? ‌
A: We are a connector manufacturer with 19 years of experience. We also hold ISO9001, CE, UL and other global certifications and support on-site factory inspections.

‌2. Q: What is the minimum order quantity (MOQ)? ‌
A: The MOQ of standard products is 500 pieces. Customized products need to be evaluated based on the process. Some products support 100 trial orders.

‌3. Q: Can free samples be provided? ‌
A: 1-2 free samples can be provided, but the customer needs to bear the international shipping costs; when there are many sample categories, the sample fee can be fully refunded after placing an order.

‌4. Q: What are the payment methods? ‌
A: Support T/T (30% advance payment + 70% see the copy of the bill of lading), LC, Paypal (small orders), specific details can be negotiated.

‌5. Q: How long is the delivery cycle? ‌
Answer: 15-20 days for conventional products, 25-30 days for customized products (including sample confirmation time), and an additional 10% fee is required for expedited orders.

‌6. Q: What should I do if there are quality problems? ‌
Answer: We provide a 12-month warranty. You can apply for return or reissue with the test report within 7 days after receiving the goods. Please consult the engineer for specific questions
