Jbocnt Group 2+6P-4 Electric Vehicle Charging Plug And Socket Is Suitable For Discharging And Charging Electric Vehicle Batteries

Product advantages

The advantages and features of this 2+6-pin connector should be considered in light of its structure, application areas (automotive/industrial power supply, signal transmission), and industry requirements:

>I. Features (Product Design and Structure)

● Interface Layout:

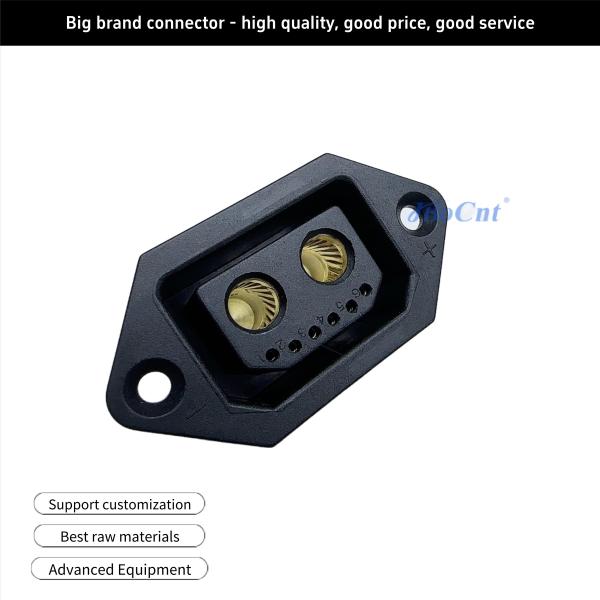

It features two high-current interfaces (gold contacts) and six auxiliary signal/control interfaces (small jacks), meeting both high-power supply and small signal transmission requirements (such as power, data, and control commands).

The two high-current interfaces utilize gold-plated contacts, significantly reducing contact resistance and improving conductivity. The six small interfaces are conventional jack-type connectors, compatible with cables with corresponding pins.

● Installation and Protection:

Installation: Four mounting holes are provided on the outside, allowing screws to secure to the device panel for a stable connection and vibration resistance.

Protection Rating: The housing is made of black plastic and is presumably IP67/IP68 compliant (depending on product specifications), offering protection against harsh environments such as dust, moisture, and oil.

＞ Markings and Specifications:

The interface area features "+" and "-" markings to clearly indicate polarity and reduce the risk of wiring errors. The design adheres to industry standards (such as automotive power connectors and industrial power supply connection specifications), ensuring strong compatibility.

＞II. Advantages (Performance and Application Value)

Functional Integration:
A single connector integrates both high-current power supply and small-signal transmission, replacing traditional "power + signal" multi-interface solutions. This reduces wiring complexity, saves space, and improves system integration.

＞Electrical Performance Advantages:

The gold-plated contacts of the high-current interface significantly reduce contact resistance (<10mΩ), lowering energy consumption and heat generation, ensuring stable power supply for high-power devices (such as automotive motors and industrial power supplies).

The six small connectors feature a "jack-style" design with matching pinouts, resisting vibration and loosening, ensuring reliable signal transmission in automotive and industrial environments.

Environmental Adaptability:

The black plastic housing's waterproof and dustproof protection (e.g., IP67) ensures the connector operates reliably and long-term in damp and dusty industrial/automotive environments, extending the life of the device.

The mounting hole design is suitable for fixed installation, offering vibration and fall-off resistance, making it ideal for the vibration conditions of automotive and industrial equipment.

Cost and Maintenance Advantages:

This 2+6-pin connector integrates high current and low signal functions, boasts the electrical advantages of gold plating, and offers reliable protection and installation. It is an ideal choice for automotive power supplies, industrial power supplies, and in-vehicle equipment. It meets the demands of high power and multiple signal transmission while accommodating harsh environments and space constraints.

What is the size?

OUR CUSTOMERS

FAQ

Q: How can I purchase your product?
A: You will need to:
* Confirm the rated current and number of contacts
* Confirm the assembly style
* Confirm the cable gauge
* Confirm the cable length and shipping method

Q: How can I contact you?
A: Please email us. We have been in this industry for over 19 years, so we can identify your issue and resolve it quickly. If you have any questions, please feel free to let us know.
